Corrosion Resistant SS 316L Stainless Steel Plate with 2000mm Width and Polished Surface

Categories Hot Rolled Stainless Steel Plate
Certification: AISI
MOQ: 50
Price: 2.35
Model NO.: 316L
Shape: Round
Technique: Hot Rolled
Surface Treatment: Polished
Specification: 1220*2440, 1500*3000, 1500*6000, 2000*6000mm
Production Capacity: 50000kgs
Carbon Content: 0.08 (316), 0.030 max (316L)
Chromium Content: 16.0-18.0
Nickel Content: 10.0-14.0
Molybdenum Content: 2.00-3.00
Yield Strength: 30 ksi (316), 25 ksi (316L)
Tensile Strength: 75 ksi (316), 70 ksi (316L)
Elongation: 40%
Hardness: 95 Rb
Width: 2000mm
  • Product Details
  • Company Profile

Corrosion Resistant SS 316L Stainless Steel Plate with 2000mm Width and Polished Surface

SS 316L Plate Hot Rolled Stainless Steel Plate 316
SS 316L PLATE ASTM A240 316L Stainless Steel Plate NO.1 Finished 2000mm Width. In ASTM A240, type 316 and 316L is a chromium nickel austenitic steel. Element molybdenum addition enhances corrosion resistance of stainless steel, which is the main factor that 316/316L is more corrosion resistant than 304/304L. When 316L steel of low carbon content is only a little higher than 316 steel on strength level. So sometimes grade 316L is almost the same as 316 grade. Another difference, 316L can be used for weld treatment as it contains lower carbon.
316/316L steel has outstanding corrosion resistant properties, whether in atmospheric or oxidizing environments, even for marine atmosphere. It shows excellent corrosion resistance in welded state. Normally 316/316L steel shows no magnetic in annealed condition. Cold drawn or cold rolling process may make it with little magnetic, and it can be fixed with further processing.
Applications of ASTM A240 316/316L
316/316L plate is used to manufacture products for applications that are exposed to:
  • Salt water environments
  • Acids such as sulfuric acid and chloride
  • Petrochemicals and chemicals
  • High-heat applications such as engines and motors
Products include tanks, supports and frames, enclosures and housings, engine, motor and machinery components and parts.
Chemical Composition of 316/316L Steel Plate
Element316316L
Carbon0.080.030 max
Chromium16.0-18.016.0-18.0
Nickel10.0-14.010.0-14.0
Molybdenum2.00-3.002.00-3.00
Manganese2.002.00
Silicon0.750.75
Nitrogen0.100.10
Phosphorus0.0450.045
Sulfur0.0300.030
Mechanical Properties of 316/316L Steel Plate
Mechanical Property of 316/316L316316L
Yield Strength, min. (ksi)3025
Tensile Strength, min. (ksi)7570
Elongation, min. (%)4040
Hardness, max. (Rb)9595
Stainless Steel Standards of 316/316L Steel
316316L
ASTM A240ASTM A240
ASTM A666ASTM A666
ASME SA240ASME SA240
AMS 5524AMS 5507

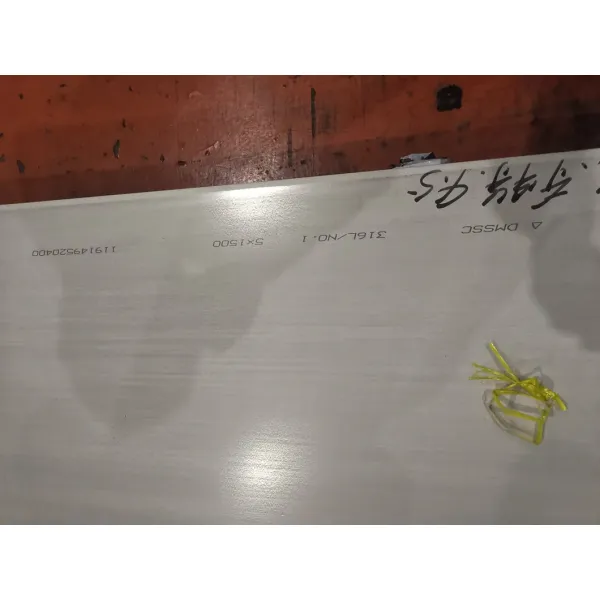

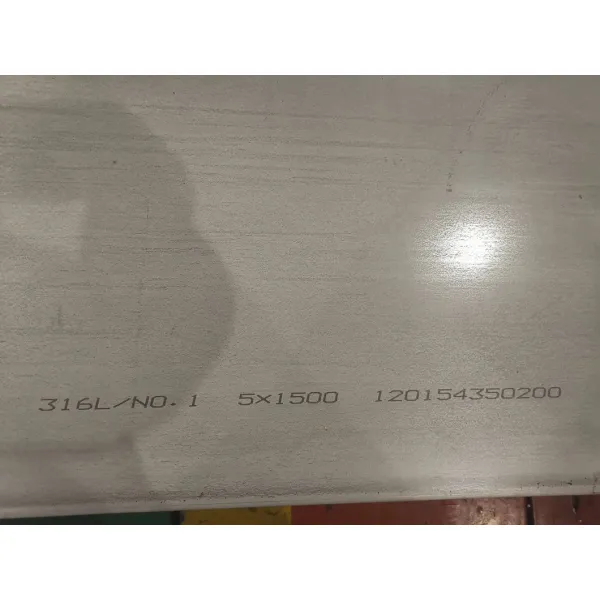

SS 316L Stainless Steel Plate product image SS 316L Stainless Steel Plate close-up view SS 316L Stainless Steel Plate industrial application
