Remote Control Diesel Engine RTG Rubber Tyred Gantry Crane with 15-50 Ton Capacity for Container Lifting

Categories Gantry Crane
Brand Name: HG CRANE
Model Number: RTG
Certification: ISO 9001
Place of Origin: CHINA HENAN
MOQ: 1 set
Price: 20000 USD
Payment Terms: T/T
Delivery Time: 45 DAYS
Capcity: 100t
Painting Color: As your demand
Crane Speed: As your demand
Power Supply: Electric
Height: As your demand
Operation Form: cabin/wireless remote control
Type: Gantry Crane
Working Duty: A3-A5
Load Capacit: on request
Span Length: On Request
Rated Loading Capacity: On Request
Working Class: A3, A4, A5
Lifting Weight: On Request
Structure Form: gantry
Span: 10 to 40 meters
  • Product Details
  • Company Profile

Remote Control Diesel Engine RTG Rubber Tyred Gantry Crane with 15-50 Ton Capacity for Container Lifting

Remote Control Diesel Engine RTG Rubber Tyred Gantry Crane
Product Overview

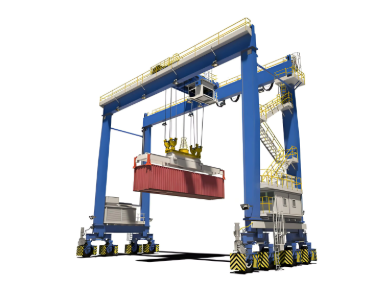

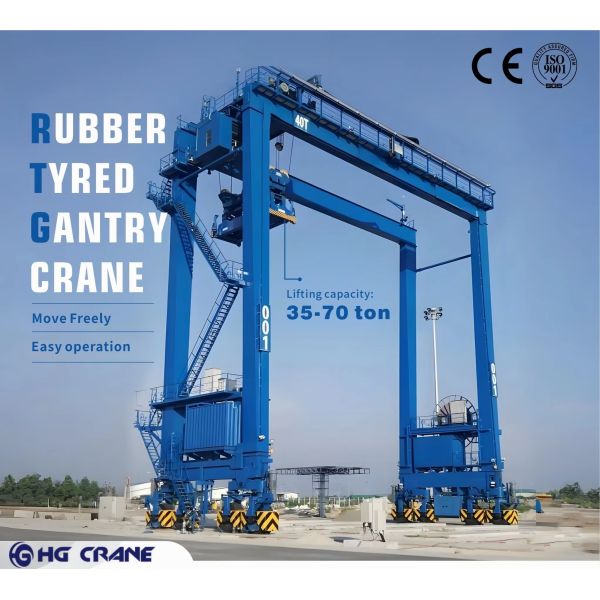

RTG Rubber Tyred Gantry Crane operational view RTG Crane technical diagram
Rubber Tyred Container Lifting Gantry Crane

The Rubber Tyred Gantry Crane (RTG) is engineered for efficient handling and loading/unloading of international standard containers in ports, terminals, container yards, and transfer stations. Supported on pneumatic rubber tires and typically powered by diesel generators (with optional power sources including cable reel and lithium batteries), this equipment delivers exceptional mobility and operational flexibility.

Available Capacities: 15 Ton, 20 Ton, 25 Ton, 40 Ton, 50 Ton
Key Components
  • Main vehicle mechanism for primary mobility
  • Small vehicle assembly for precise positioning
  • Robust gantry structure
  • Advanced power system
  • Specialized container spreader
  • Main beam and outriggers
  • Tire running system
  • Lifting trolley assembly
Advanced Features
  • Flexible Track-Free Movement: Independently driven tires adapt to various site layouts with strong mobility, enabling quick response to diverse operational requirements
  • High-Efficiency Energy-Saving Design: Optimized energy consumption management systems enhance operating efficiency while reducing operational costs and environmental impact
  • Intelligent Security System: Integrated PLC and remote monitoring capabilities provide real-time diagnostics and maintenance, ensuring safe, reliable operation and minimizing downtime
Application Areas

This RTG crane is widely deployed in port operations, container terminals, storage yards, and intermodal transfer stations where efficient container handling and maximum operational flexibility are required.

Product Gallery
Product details display
We focus more on details than other brands do
Main Structure
Q235/Q345 carbon structural steel,Large span and high lifting capacity
Traveling Machine
Top-quality rubber,good abrasion resistance,Flexible tuming
Drivers'Room
All-round view,
Comfortable operating console

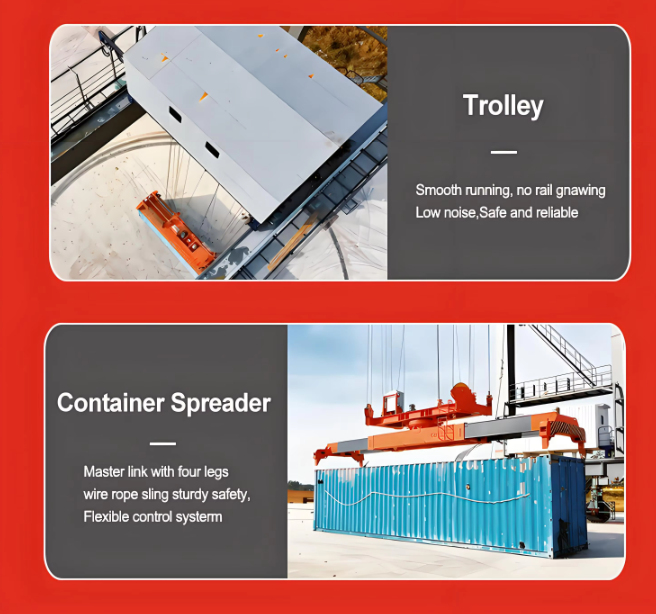

Trolley
Smooth running, no rail gnawing Low noise,Safe and reliable
Container Spreader
Master link with four legswire rope sling sturdy safety,Flexible control systerm

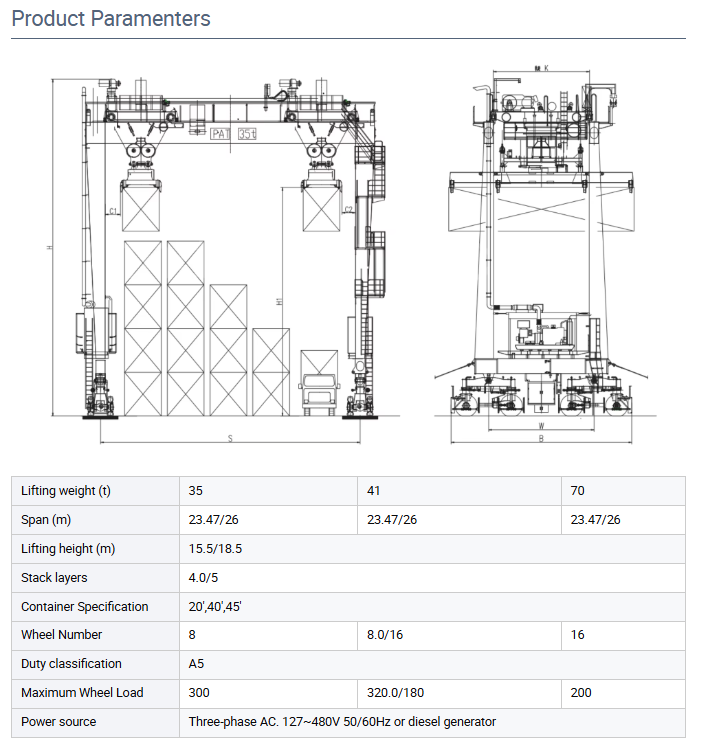

Product Paramenters
Lifting weight (t)354170
Span (m)23.47/2623.47/2623.47/26
Lifting height (m)15.5/18.5
Stack layers4.0/5
Container Specification20',40',45'
Wheel Number88.0/1616
Duty classificationA5

Maximum Wheel Load300320.0/180200
Power sourceThree-phase AC. 127~480V 50/60Hz or diesel generator

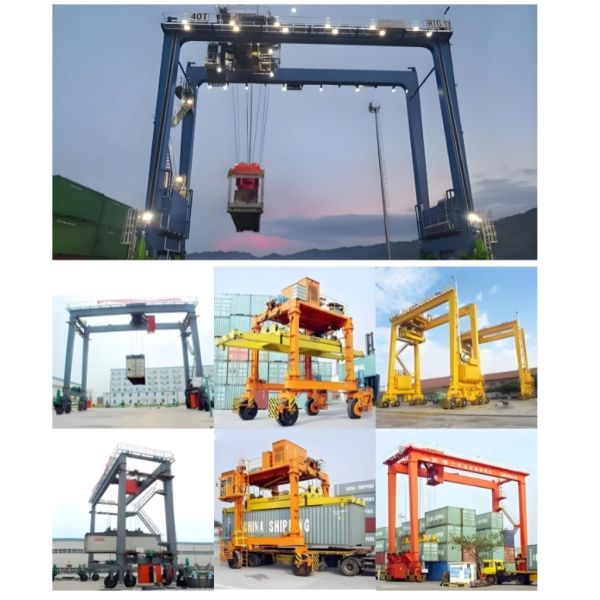

RTG Crane operational features RTG Crane structural details RTG Crane in port environment RTG Crane container handling RTG Crane technical specifications RTG Crane control systems RTG Crane safety features RTG Crane operational demonstration RTG Crane maintenance access
