20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction

Categories Gantry Crane
Place of Origin: Henan, China
Brand Name: HUAGONG
Price: 3000~9000 USD
Model Number: MH
Certification: CE
MOQ: 1 SET
Payment Terms: T/T
Delivery Time: 25 Days
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Core Components: Engine, Bearing, Gearbox, Motor
Application: Outdoor
Rated Loading Capacity: 20 Ton
Rated Lifting Moment: 50KN~3000KN
Max. Lifting Height: 6/9m
Warranty: 1 Year
Weight (KG): 12540 kg
Power supply: Customer request
Control method: Remote Controller and ground control
Color: Clients' Requirments
Lifting speed: Variable Speed (standard)
Crane feature: Easy Operated Girder Gantry Crane
Lifting mechanism: Electric hoist
Type: MH
Main electrical parts: According to customer's needs
  • Product Details
  • Company Profile

20 Ton Rated Loading Capacity Adjustable Gantry Crane with Remote Controller and Ground Control for Outdoor Construction

20-Ton Remote Control Adjustable Height Gantry Crane
MH SINGLE TRUSS GANTRY CRANE
20-ton gantry crane overview showing complete structure
Simple results, non-standard customization, strong adaptability! !
Close-up of gantry crane lifting mechanism and controls

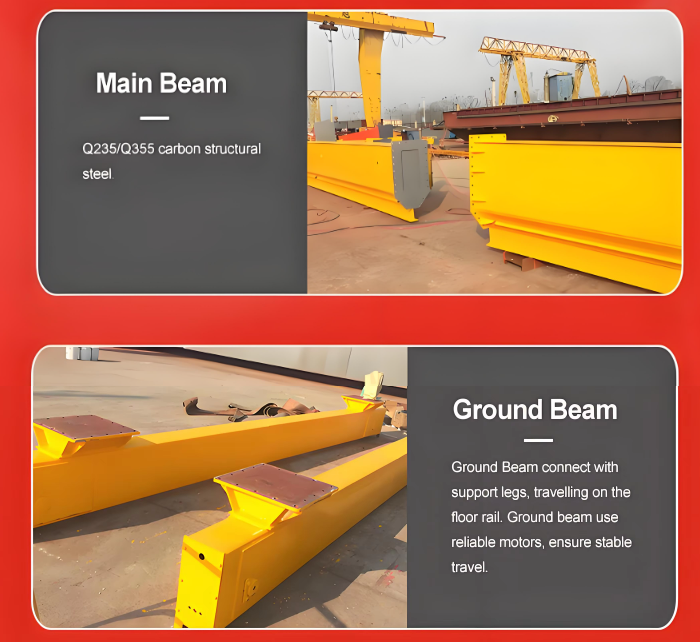

Main Beam
Q235/Q355 carbon structural steel

Ground Beam
Ground Beam connect withsupport legs, travelling on thefloor rail. Ground beam usereliable motors, ensure stabletravel.

Gantry crane in workshop environment with operator
Support Legs
Support legs support themain beam and lift mecha-nism. It can be box type andtrussed type due to differentuse situation.

Support Beam
When export gantry crane, tolargely save sea freight, ourengineer will try to reduce thegoods volume. The supportbeams is dismountable.

Detailed view of gantry crane wheels and mobility features

Crane Hoist
Pendent & remote control Capacity:3.2-32t Height max 100m

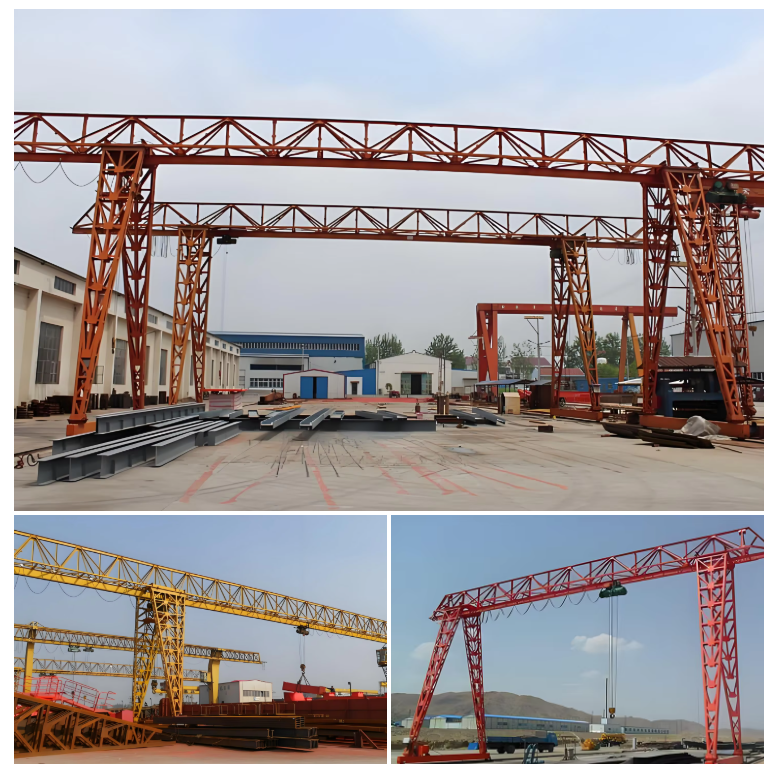

Gantry crane lifting heavy equipment in industrial setting Remote control unit for gantry crane operation
Key Features
  • Simple and compact structural design
  • Minimal wind surface area for stable operation
  • Lightweight construction with strong 20-ton lifting capacity
  • Exceptional operational stability and performance
  • Reduced daily maintenance requirements
  • Cost-effective solution for plant and workshop construction
  • Dual control options: ground control and remote control
Industrial Applications
  • Logistics Warehousing: Ideal for efficient material handling in warehouse environments with optimized space utilization
  • Manufacturing Plants: Perfect for parts handling in production workshops, offering flexible operation in limited spaces
  • Port Terminals: Suitable for handling and stacking small containers, particularly effective for temporary work sites or smaller terminal operations
Gantry crane application in warehouse setting
product process:
1.Production Drawings
4.End Beams Processing
7.Electrlcal Control Unlt
2.Steel Plate Unfolded
5.Preassembled
8.Examination of product
3.Welded main beam
6.Productlon of electrlc holst
9.Packing and dellvery

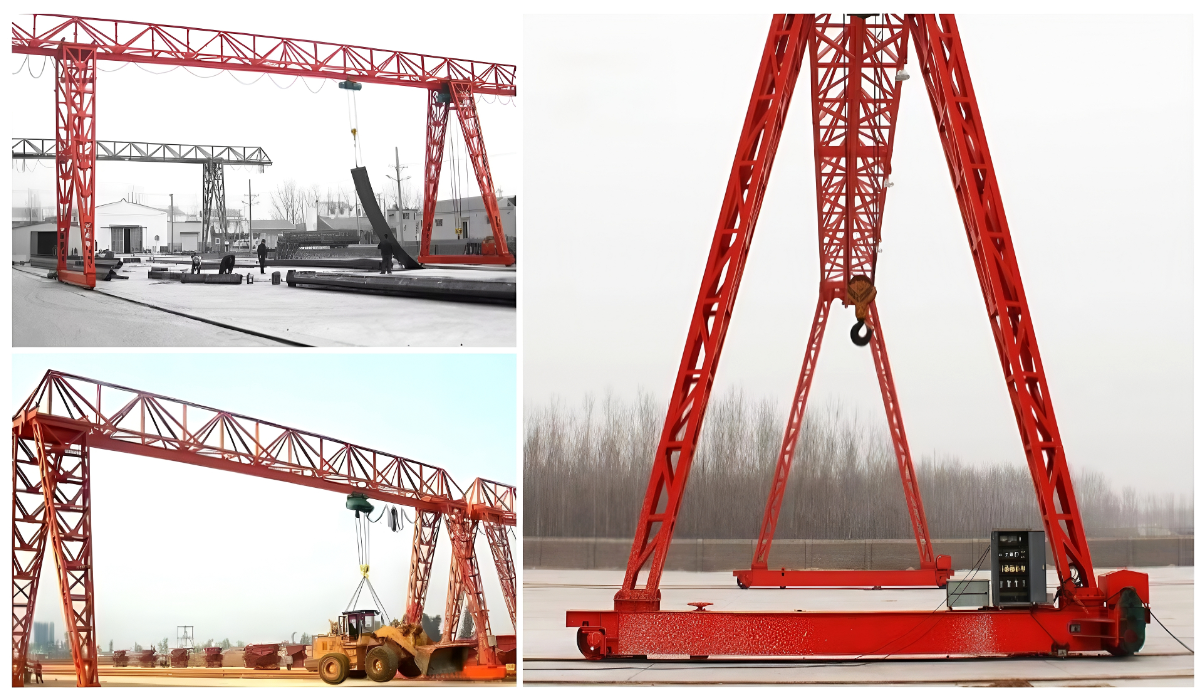

Gantry crane operating in manufacturing plant Port terminal application of gantry crane

Product NameMH truss type gantry crane
Load Capacity≤20 ton
Span (Track gauge)≤31.5m
Working GradeA3-A5
Ambient Temperature-20~40°C
Control ModeCab Control, Remote Control, Floor Control
Power SupplyThree-Phase A.C. 380V 50HZ
