Name: Precise Automatic Welding Tractor for Tank Welding Construction
Brand: WINCOO
Price: 6 USD

Home > Vacuum Equipment >

Precise Automatic Welding Tractor for Tank Welding Construction

Categories	Portable Tank Welding Machine
Applicable Industries:	Manufacturing Plant, Construction works
Showroom Location:	None
Video outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2020
Warranty of core components:	1 Year
Core Components:	Motor
Condition:	New
Place of Origin:	Jiangsu, China
Brand Name:	WINCOO
Forming Time:	Standard
Welding Mode:	Tig/Mig/MAG/SAW(optional)
Welding Diameter:	80mm
Dimensions:	245520290mm
Use:	Tank Seam Welding
Voltage:	220V
Warranty:	1 Year
Key Selling Points:	Automatic
Weight (KG):	10.4 KG
Power (kW):	4
Product name:	Tank welding machine
Application:	Tank construction
Working mode:	Auto Seam Welder
Welding Method:	MAG Welding
COLOR:	CUSTOMER
Welding Material:	Carbon Steel Stainless Steel Aluminum
Packaging Details:	carton
Supply Ability:	3000 Set/Sets per Month
Price:	$6,500.00/sets 1-99 sets

Contact Now

Add to Cart

Product Details
Company Profile

Precise Automatic Welding Tractor for Tank Welding Construction

WINCOO ENGINEERING CO.,LTD

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipment for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction, industrial production lines, clean energy project and other industrial field.

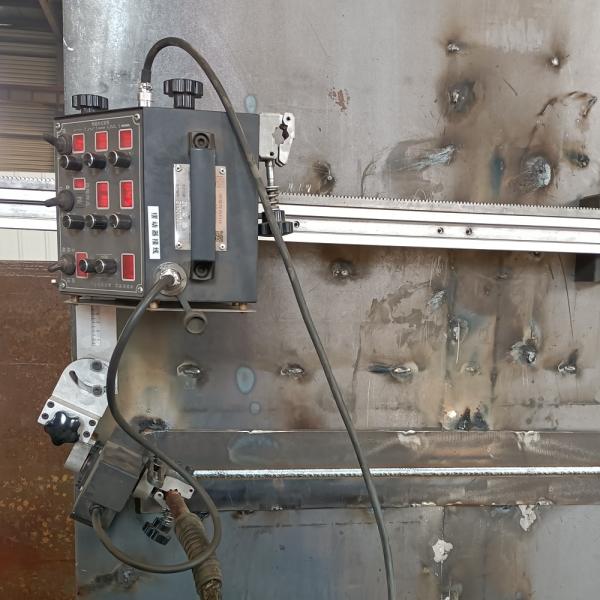

A simple, inexpensive and easy to use straight or flexible rail welder for tank welding.

Flexible rails track

Straight rails track

Product Features

I. Product welding features

1, Equipped with 5 kinds of welding handling techniques, perfect simulation of manual handling, uniform appearance of welding seam, faster and more stable.

2, Weld width 0-30mm wide range adjustment, can adapt to all kinds of thin plate, thick plate welding.

3, Weld width 0-30mm wide range adjustment, can adapt to all kinds of thin plate, thick plate welding.

4, The machine can realize all kinds of distance discontinuous welding, length and speed can be adjusted at will.

5, The machine can demonstrate welding trajectory without ignition, convenient and intuitive.

6, Control panel is full digital display, easy to adjust and record data, with memory function, automatic recovery of the last

data when the next use.

7, Automatic stop after welding, limited stop contact is set in the two running directions of the machine, contact point is placed at the end of the weld in advance, automatic stop at the point to prevent over-welding.

II. Product designed features

1, The sliding track of the machine adopts the linear track specially used for advanced machine tools, which has zero clearance operation, smooth running, no stuck, no deformation, and higher integrity of the machine.

2, All directions of the machine are adjusted by high precision screw pitch, faster, more stable and more accurate.

3, All the parts are processed by advanced CNC machine tools, which greatly improve the accuracy and durability.

4, The whole high temperature spraying process + aluminum oxidation, so that the overall appearance of the machine to a higher level.

5, Equipped with special robot welding gun, welding quality is better and more stable.

III. Product overall using features

1, The machine is integrated design, easy to use, while reducing all kinds of messy external control lines, effectively prevent damage to the line and control, make the working environment more concise.

2, The lengthened magnetic seat on the track reduces the weight and number of switches with the same suction force, making it easy to install even for a woman.

3, The design of the special connecting plate for the track end is noteworthy. The bolt is used in the forward direction, which can connect two or more tracks into a longer whole. Bolt reverse use, can make the track fast, accurate lap, so that the length of infinite cycle.

4, Machine drive and control all adopt AC 20V voltage, more safe.

5, The professional welding gun used by this machine can be adapted to different welding gun joints, no matter you are using other welding machine, can be used perfectly.

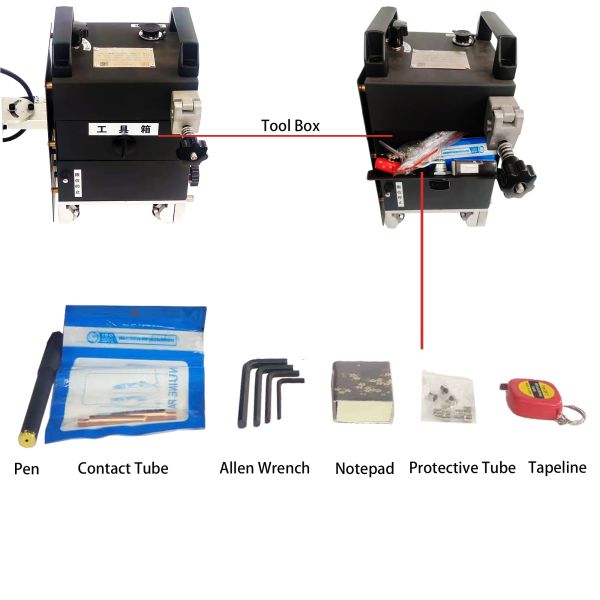

6, The machine comes with toolbox is our company's original creation. The tool box is easy to use and durable. Some necessary small tools are stored in the tool box, which can reduce the time for users to search for tools and improve work efficiency. It is equipped with: fuse, welding gun conductive nozzle, all kinds of inner square Angle wrench, box ruler, notepad, pen, etc. When a perfect weld is adjusted, the weld parameters, the voltage and current of the welding machine and various parameters on the control panel of the machine are recorded. When the same weld is encountered next time, input parameters and perfect copy of the weld.

7, Flexible and convenient to use, non-welder can weld a perfect weld, one person can operate more than one machine at the same time, greatly reduce labor costs, improve the quality of weld, improve work efficiency.

Product Parameter
Items	Parameter			Notes
Items		Straight rail type	Soft rail type	Notes
External power source	AC 220V 50/60 Hz			Three-hole
Working power source	AC 20V			Use of each driver
Dimensions	245520280cm	245520290cm	Lengthwidthheight
Weight	8.6 kg	10.4 kg	Main host
Track type	Linear motion guide	Self-aligning flexible slide rails
Drive mode	Gear drive	Sprocket drive
Welding speed	0~1650mm/min			Fastest
The thinnest adsorption plate thickness	3mm			Magnetically attractive metal
Welding gun adjustment range	65mm			Inching for up and down
		80mm			Inching for left and right
		+ -60°			Swinging angle
		+ -25°			Marching Angle
		Stop left, stop right			Swinging form
Operating function	0-100mm/min			Swinging speed
		0-2.5s			Left and right residence time
		+-14mm			Swinging width
		+-5mm			Center for compensation

Installation Procedure

Straight rail installation:Step.1

* Use six M4*12 hex socket bolts to install three sets of magnet seats on the track. Note that the magnet handle is in the direction of the magnetic strip. The track is assembled. Another set of tracks can be connected to the end connecting plate for endless circulation use.

Step.2

* Install the welding robot from one end of the track to a track. Note that the walking clutch is in the open position. The clutch is in the closed position when used.

Flexible rail installation:Step.1

* Install the three sets of magnets on the three magnet positions in the middle of the track with 12 M6*16 flat head bolts and tighten them.

Step.2

* Release the track clutch, install the welding robot on the track, close the clutch, and the host can walk normally when in use.

Step.3

* Install the pressing plate, ultra-thin flat pad and soft rail on the magnet aluminum block with three M6*16 flat bolts in turn, tighten and assemble the track. Another set of track ends can be inserted under the platen for wireless circulation.

Step.4

* Adjust the external auxiliary to a reasonable height,and keep sliding support on the welding parts during welding, which can effectively prevent welding gun height or shake.

Major Component
No.	Items	Configuration	Qty	Remarks
1	Machine body	Moving system	1 Set	Drive to travel
				Oscillator	1 Set	Swing
				Control system	1 Set
				Travel switch	2 sets	Automatically stop welding at specified position
				Flexible rail/tracks	2 pcs	1.5m *2 set
				The magnet holder	8 stes	4Set/ pcs
2	Welding power	Transformers, fuses, etc	1 Set	AC220V to AC20V
3	Welding power source	MIG 500	1 Set	Including 5 meter control cable 1.5 ground cable, 3 meter welding cable and gun holder,and welding torch, wire feeder and gas meter
4	Welding cable and gun holder	5 meter	1 Set	Special welding gun for automatic welding
5	Spare parts	Fuse	5 pcs	1A
5	Spare parts		Spare parts	Conductive nozzle of welding torch	2 pcs	Φ1.0、Φ1.4with each one
6	Toolkit	Hexagon socket wrench	4 pcs	Size 3、4、5、6each one
				Qualification certificate	1 pcs
				Instruction	1 pcs
