Name: Long Span Steel ADSS Anchor Clamp with 100m Span Length for Double Suspension
Brand: DOWELL
Price: 1 USD

Home >

Long Span Steel ADSS Anchor Clamp with 100m Span Length for Double Suspension

Categories	ADSS Anchor Clamp
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	10000 PCS Per 7 Days
Delivery Time:	7-15 Days
Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-SCS-D
MOQ:	1000 pieces
RTS:	Greater than 20kN
Span length:	100m
Material:	Steel
Color:	Black And Silver
Packaging:	Pallet or Wooden Case
Standard:	Nonstandard

Contact Now

Add to Cart

Product Details
Company Profile

Long Span Steel ADSS Anchor Clamp with 100m Span Length for Double Suspension

Long Span Double ADSS Anchor Clamp Reliable Double Suspension

Product Overview

Double-suspension cable clamps combine all the properties of single-suspension cable clamps with two sets of suspensions to enhance mechanical strength and increase the radius of curvature. This ensures safe and reliable operation of fiber-optic cables under demanding conditions including large corners, high drops, and large spans. Designed for challenging installations across rivers, valleys, and other special locations with elevation angles of 30°-60° on towers, these clamps offer breaking strength of 70KN and 100KN.

Specifications

Type	Available Cable Diameter (mm)	Available Span (m)
LA940/500	8.8-9.4	100-500
LA1010/500	9.4-10.1	100-500
LA1080/500	10.2-10.8	100-500
LA1150/500	10.9-11.5	100-500
LA1220/500	11.6-12.2	100-500
LA1290/500	12.3-12.9	100-500
LA1360/500	13.0-13.6	100-500
LA1430/500	13.7-14.3	100-500
LA1500/500	14.4-15.0	100-500
LA1220/1000	11.6-12.2	600-1000
LA1290/1000	12.3-12.9	600-1000
LA1360/1000	13.0-13.6	600-1000
LA1430/1000	13.7-14.3	600-1000
LA1500/1000	14.4-15.0	600-1000
LA1570/1000	15.1-15.7	600-1000
LA1640/1000	15.8-16.4	600-1000
LA1710/1000	16.5-17.1	600-1000
LA1780/1000	17.2-17.8	600-1000
LA1850/1000	17.9-18.5	600-1000

Product Details

Long Span Double ADSS Anchor Clamp technical diagram and construction details

Applications

Primarily used for long span installations across rivers and valleys with significant elevation changes
Designed for use on poles or towers with turning angles from 30° to 60°
Standard yoke plate span length of 400mm
Customizable configurations available to meet specific customer requirements

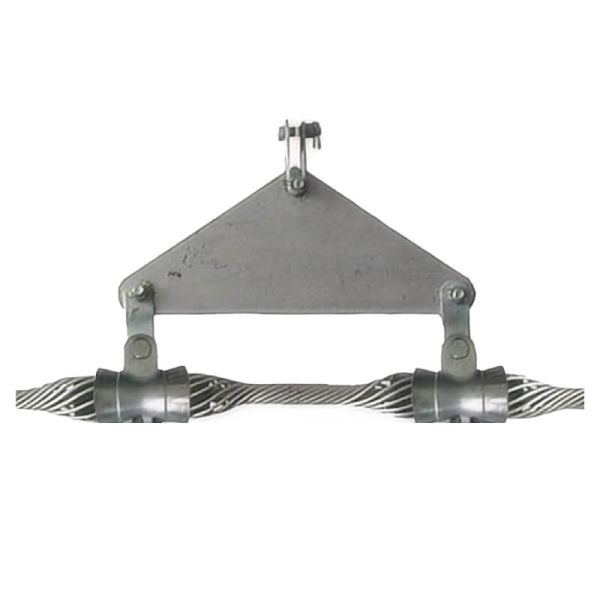

Long Span Double ADSS Anchor Clamp installation example in field application

Close-up view of Double ADSS Anchor Clamp components and assembly
