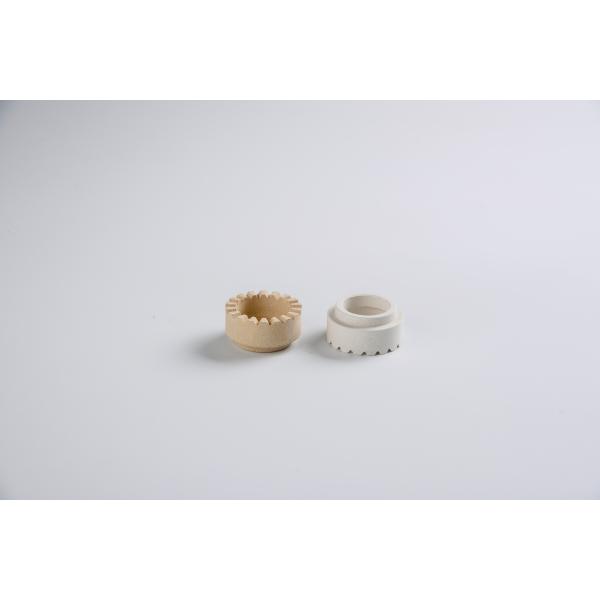

High Temperature Insulated Alumina Welding Ceramic Protective Ring
Welding ceramic ferrules are crucial components used primarily in
stud welding processes, particularly in drawn arc stud welding.
They are designed to facilitate and enhance the welding process by
performing several key functions:
Key Features of Ceramic Ferrules:
Product Paramenters
Characteristics | Alumina | ||
| Components | 99%Al2O3 | 95%Al2O3 | |
| Density | g/cm3 | 3.8 | 3.65 |
| Water Absorption | % | 0 | 0 |
| Sintering temperature | ℃ | 1700 | 1680 |
| Hardness | HV | 1700 | 1500 |
| Flexural strength | Kgf/cm2 | 3500 | 3000 |
| Compressive Strength | Kgf/cm2 | 30000 | 25000 |
| Fracture toughness | Map.m3/2 | 4 | 3~4 |
| Maximum service temperature | ℃ | 1700 | 1600 |
| Coefficient of thermal expansion 0-1000℃ | *10-6/℃ | 8.5 | 8 |
| Heat resistance | T(℃) | 200 | 220 |
| Heat resistance | W/m.k(25℃-300℃) | 31.4~15.9 | 25~14 |
| Volume resistivity | 20℃ Ωm | >1012 | >1012 |
| 100℃ Ωm | 1012 --1013 | 1012 --1013 | |
| 300℃ Ωm | >1012 | >1010 | |
| Insulation breakdown intensity | KV/mm | 18 | 18 |
| Dielectric constant | 100MHz(E) | 10 | 9.5 |
Characteristics | Cordierite | |
| Components | 2MgO2Al2O35SiO2 | |
| Density | g/cm3 | 2.5 |
| Water Absorption | % | 0 |
| Sintering temperature | ℃ | 1350 |
| Hardness | HV | 800 |
| Flexural strength | Kgf/cm2 | 900 |
| Compressive Strength | Kgf/cm2 | 3500 |
| Fracture toughness | Map.m3/2 | - |
| Maximum service temperature | ℃ | 1000 |
| Coefficient of thermal expansion 0-1000℃ | *10-6/℃ | 4 |
| Heat resistance | T(℃) | 250 |
| Heat resistance | W/m.k(25℃-300℃) | 1.3- |
| Volume resistivity | 20℃ Ωm | >1012 |
| 100℃ Ωm | 107 --108 | |
| 300℃ Ωm | 3*105 | |
| Insulation breakdown intensity | KV/mm | 10 |
| Dielectric constant | 100MHz(E) | 6 |
