| Categories | COFDM Video Transmitter |
|---|---|
| Place of Origin: | China |
| Brand Name: | Kimpok Technology |
| Model Number: | KP-HDT25W |
| Packaging Details: | International standard packing |
| Supply Ability: | 5000/month |
| MOQ: | 1 Piece |
| Price: | Negotiation |
| Certification: | CE Cerfication |
| Payment Terms: | T/T, PayPal, Alipay |
| Delivery Time: | 3-7 work days |
| Private Mold: | Yes |
| Product name: | backpack wireless video audio transmitter |
| Frequency: | 300-900MHz option,1.2G/2.4G/5.8GHz |
| Power supply: | DC11-14.5V/1.9A |
| Modulation: | COFDM |
| RF Bandwidth: | 4/8MHz(adjustable) |
| Delay time: | Only 200ms |
| FEC: | 1/2 2/3 3/4 7/8 |
| Guard Interval: | 1/32 1/16 1/8 1/4 |
| Data Encryption: | AES 128/256 Bits |
| Max speed: | 450km/h |
| Port: | Shenzhen/Hong Kong |
5km Tight Backpack COFDM Digital Wireless Video Audio Transmitter with battery
Description:

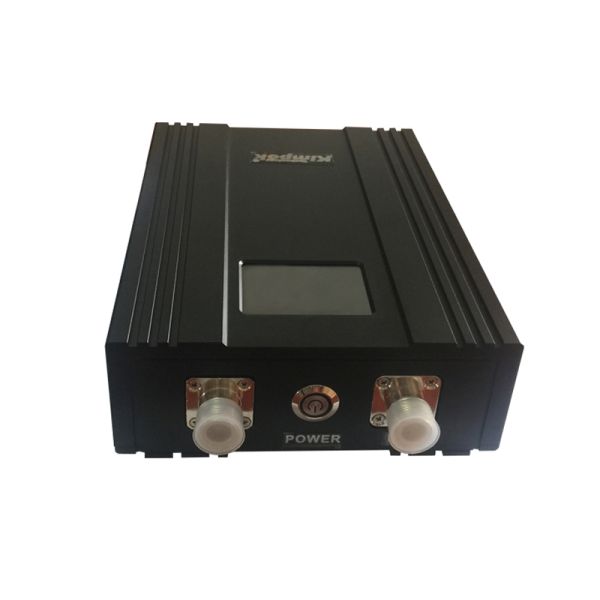

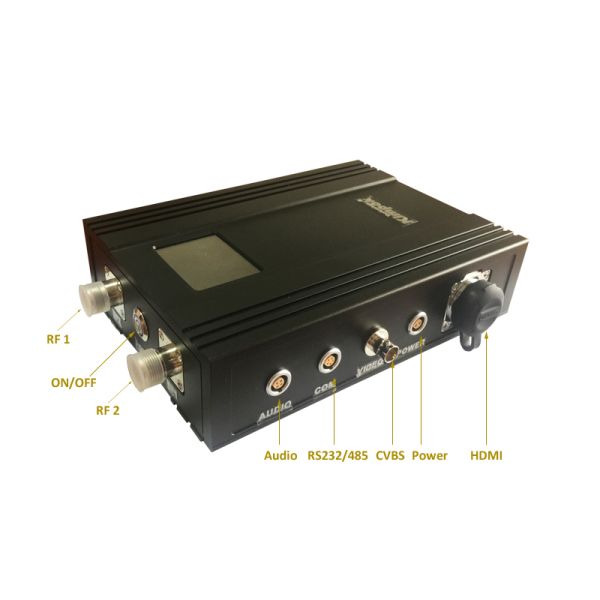

KP-HDT5000 is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264/H.265 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission. Good heat resistant with two cooling fans. Be safety with AES128 bits. It works well in fast-moving transmission.
Microwave RF solutions wireless link video communication transmitter has high efficiency innovative H.264 compression encoding, integrated with lightweight, low power consumption of OLED display control panel, integrating digital modulation, and highly integrated HD moving LOS and NLOS digital video transmission equipment.
Transmitter parameter:
Modulate | COFDM |
Working voltage | DC12V |
Working current | ≤6A@DC12V |
RF bandwidth | 2/4/6/8MHz (adjustable) |
Frequency | 300-900Mhz or other frequency customized |
Output power | 1-5W (adjustable) |
Video input | HDM-I/SDI; CVBS |
Data input (option) | RS232/TTL, up to 115200bps |
Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps |
Video coding | MPEG-2/H.264/H265 |
Video rate | 512Kbps-16Mbps (adjustable) |
Encryption | AES 128 bits |
AV input | 1Vp-p, 75Ω. Left and right channel |
Video system | PAL/NTSC |
Power flatness | Full band ≤1.5dB |
CNR | ≥25dBc@48dBm |
Second harmonic | ≥60dBc |
CBER | <2.0E-4 |
VBER | <1.0E-7 |
MER | 32dB |
Carrier | 2k 4k 8k |
Constellation | QPSK,16QAM,64QAM (option) |
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 (option) |
Guard Interval | 1/32, 1/16, 1/8, 1/4 (option) |
Working Temperature | -25°C~55°C |
Dimension | 220*150*60mm |
Weight | 1.36kg |
Receiver parameter:
Frequency | 300-900MHz or other frequency customized |
Bandwidth | 2/3/4/5/6/7/8MHz (option) |
RF input level | -94dBm~0dBm(8M)/-98dBm~0dBm(2M) |
RF input impedance | 50Ω |
RF input type | N type |
Modulation | COFDM |
Constellation | QPSK,16QAM,64QAM(adjustable) |
FEC | 1/2,2/3,3/4,5/6,7/8(adjustable) |
Carrier | 2k |
Guard Interval | 1/32,1/16,1/8,1/4(adjustable) |
Video coding | MPEG-2/H.265 |
Screen | 4:3 16:9 |
Video resolution | 1080P@4MHz |
Audio output | Stereo unbalance 300/ 200mv |
AV output | 2 Audio output + 2 Video output. SDI/HDM/ASI |
Working voltage | AC220V/DC12V <1A |
working temperature | -20℃~+50℃ |
Dimension | 480*260*45(1U chassis) |
Weight | 1.5kg |
|
