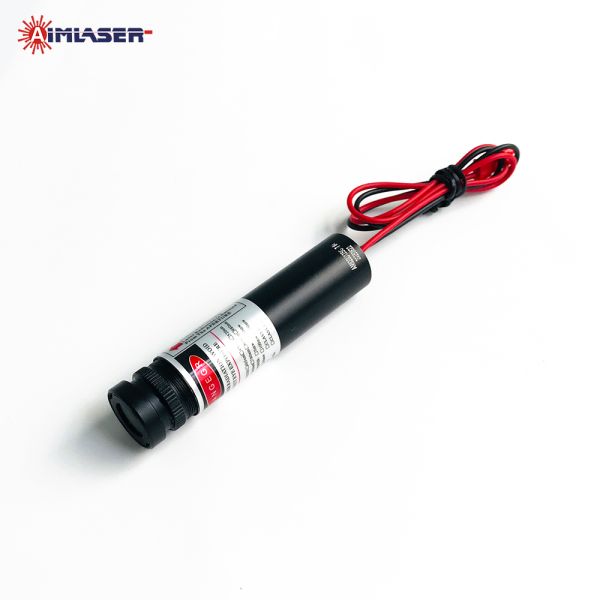

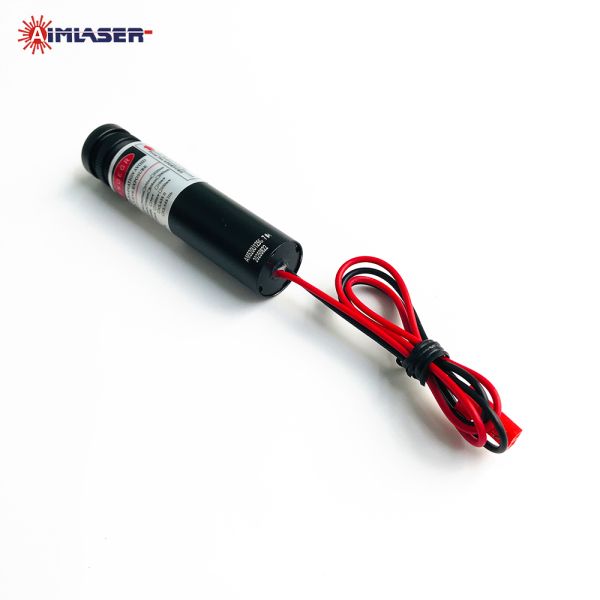

520nm 50mW Focus Adjustable Powell Lens Green Uniform Line Laser Module for Machine Vision Inspection

520nm 50mW Focus Adjustable Powell Lens Uniform Line Laser Module for Machine Vision Inspection

Product Description

AIMLASER provides customized Uniform Line Laser Diode Modules, which have a well-distributed laser beam and energy. Featuring high-quality Powell Lens, these modules offer a narrow linewidth, high stability and reliability, long lifetime and performance. The well-distributed line laser is the ideal laser source in Laser Profilometer, 3D Smart Camera, Surface Defect Detections, Machine Vision System, Industrial Robotics and 360° Pipeline Inspections etc.

The AM520U50G1 is a green line laser module subassembly with a collimated beam. The maximum laser output power is 50mW at 520nm, with uniform linewidth distribution. They are customizable to meet your specific specifications and requirements. The thinnest line can be 10um; fan angle is optional from 5°to 130° and wavelength ranges from 405nm to 850nm. The input voltage is also varied from 3V to 24V DC.

Specifications

Features

• Compact size, narrow line width, and adjustable focus.
• High stability and reliability with long service lifetime.
• Equipped with a high-quality Powell lens for superior beam shaping performance.
• Utilizes original laser diodes from Arima Lasers, Osram, and Nichia, ensuring consistent quality and performance.
• Highly uniform laser line intensity distribution, providing excellent brightness consistency across the entire line.
• Customizable line width, fan angle, and output power to meet different application requirements.
• Compliant with RoHS, FDA, IEC, and SGS standards.
• One-year warranty and flexible customization services available.

Applications

The 520nm 50mW Powell Lens Uniform Line Laser Diode Modules are used in:

Payment & Shipment

Payment: T/T, PayPal, etc.

Lead time: 5-10 days.

Shipping: FedEx, DHL, UPS.

Warranty: 1 year.

FAQ

Q1: How can I ensure the products have no quality issues?

A: We have an ISO 9001 certified factory, and our products are certified by the FDA, IEC, and GB. All products undergo internal testing before shipping and come with a one-year warranty. We respond proactively to any quality issues.

Q2: What can be customized? Do you support required solutions?

A: Yes, we can customize wavelength, output power, beam size, driver mode, working voltage and housing dimensions and more according to your requirements.

Q3: Do you have other wavelength Powell Lens Uniform Line Laser Modules available?

A: Yes, we can customize 405nm, 450nm, 520nm, 635nm, 650nm, 660nm, 780nm, 808nm, 830nm, 850nm, purple, violet, blue, green, red, infrared uniform line lasers.

Q4: Do you have a focus-adjustable uniformly distributed laser module?

A: Line thickness fixed and focus Adjustable uniform line laser diode modules are available.

Q4: What are the driver modes customized?

A: CW or Pulse (by TTL/PWM/Analogue Modulation).

Why Choose Us

A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standards.

F. Strong design and production capabilities, partners of famous brands.

Certifications

Founded in 2012, Aiming Laser Technology Co., Ltd. (briefly named AimLaser) manufactures semiconductor laser diode modules and coaxial fiber coupled lasers with wavelength 405nm to 1064nm and output power 0.4mW to 20W for various OEM instrument applications.

Our main products are  mini laser modules, red laser modules, green laser modules, blue laser modules, violet laser modules, IR laser modules, RGB Free Space and RGB Fiber Coupled Laser Modules, TTL modulation laser modules, Analogue modulation laser modules, dot laser modules, line laser modules, cross line lasers, 360 degree circle line laser modules, Powell lens uniform line laser modules, machion vision laser source, pigtailed laser diodes, Single-Mode and Multi-Mode Coaxial Fiber Coupled Laser Modules, Fiber Collimators, Corning light diffusing fiber laser sources, laser line generators, laser beam expanders ; and also gun laser shooting accessories like dry fire training red laser bullet, 780nm IR laser trainer, 850nm IR laser training cartridges or laser simulators, electronic laser targets, universal laser bore sights, rail mounted laser sights, pistol red dot sight, rifle red dot sight and Holographic Red Dot Sight etc.

Featured with compact size, low power consumption, high reliability and stability designs, our lasers have been successfully used in a wide range of applications like industrial laser positioning, laser marking, laser alignment tools, laser survey equipment, laser measuring tools, 3D laser scanner, laser level meters, laser distance meters, machine vision system, smart camera, laser profiles, laser detecting equipment, medical laser instrument, laser barcode scanner, laser gas detectors, laser aiming devices, golf laser rangefinders, miniature laser tools, law enforcement and military defense devices etc.

By full compliance with ISO9001:2008, FDA IEC.GB standard, we are assuring our customer with high quality products and timely delivery on the basis of our rich industry experience, good technology, innovative R&D engineering team and world-class manufacturing facility.

Share your ideas with us, our experienced skillful and dedicated technical staff will help you to solve your design problems and help to customize products for your special applications.
