| Categories | Face Recognition Terminal |
|---|---|
| Brand Name: | Shi Zun |
| Model Number: | JP1103A |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100+pcs+day |
| Delivery Time: | 10 working days |
| Packaging Details: | 10.1-inch |
| LCD Screen Size: | 10.1 inches |
| Installation Type: | Wall-mounted |
| Configure: | 2GB RAM + 16GB storage memory, with a self-ejecting TF card slot supporting up to 128GB TF card |
| Brightness: | 500 cd/m² |
| Surface Material: | Front tempered glass |
| NPU: | Supports 1 TOPS processing power |
| CAN Bus: | 2 CAN header interfaces, expandable for CAN bus peripherals |
| Viewing Angle: | L/R 178° full viewing angle |
| Body Craftsmanship: | Aluminum alloy CNC precision, sandblasting oxidation, sheet metal black sand-textured powder coating |
| Bluetooth: | Built-in high-performance serial BT module, supports V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0 |
| MIC Input: | Separate MIC input (header interface) |
| Screen Resolution: | 1280×800 |
| Network: | 10/100/1000M adaptive Ethernet RJ45 port, built-in high-performance SDIO interface Wi-Fi module, supports IEEE 802.11 b/g/n/ac, default single-frequency 2.4GHz |
| Touch Screen: | 10-point capacitive touch screen |
| Hard Drive: | Standard SATA 3.0 hard drive interface (with power header) |
| Amplifier Output: | 8Ω, 6W dual-channel audio amplifier output |
| Record Storage: | Local storage for over 400,000 facial image records |
| Network Upload: | Works with server-side software to upload and aggregate comparison data from multiple terminals |
| POE Power Supply: | Supported |
| Operating System: | Recommended Android 11, optional LinuxBuildroot/Debian10/Ubuntu-18.04 |
| Camera: | 2MP wide dynamic, anti-backlight, shooting distance 0.5m to 2m |
| GPU: | ARM Mali-G52EE, supports OpenGLES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, with high-performance 2D acceleration hardware |
| Speakers: | 3W×2 |

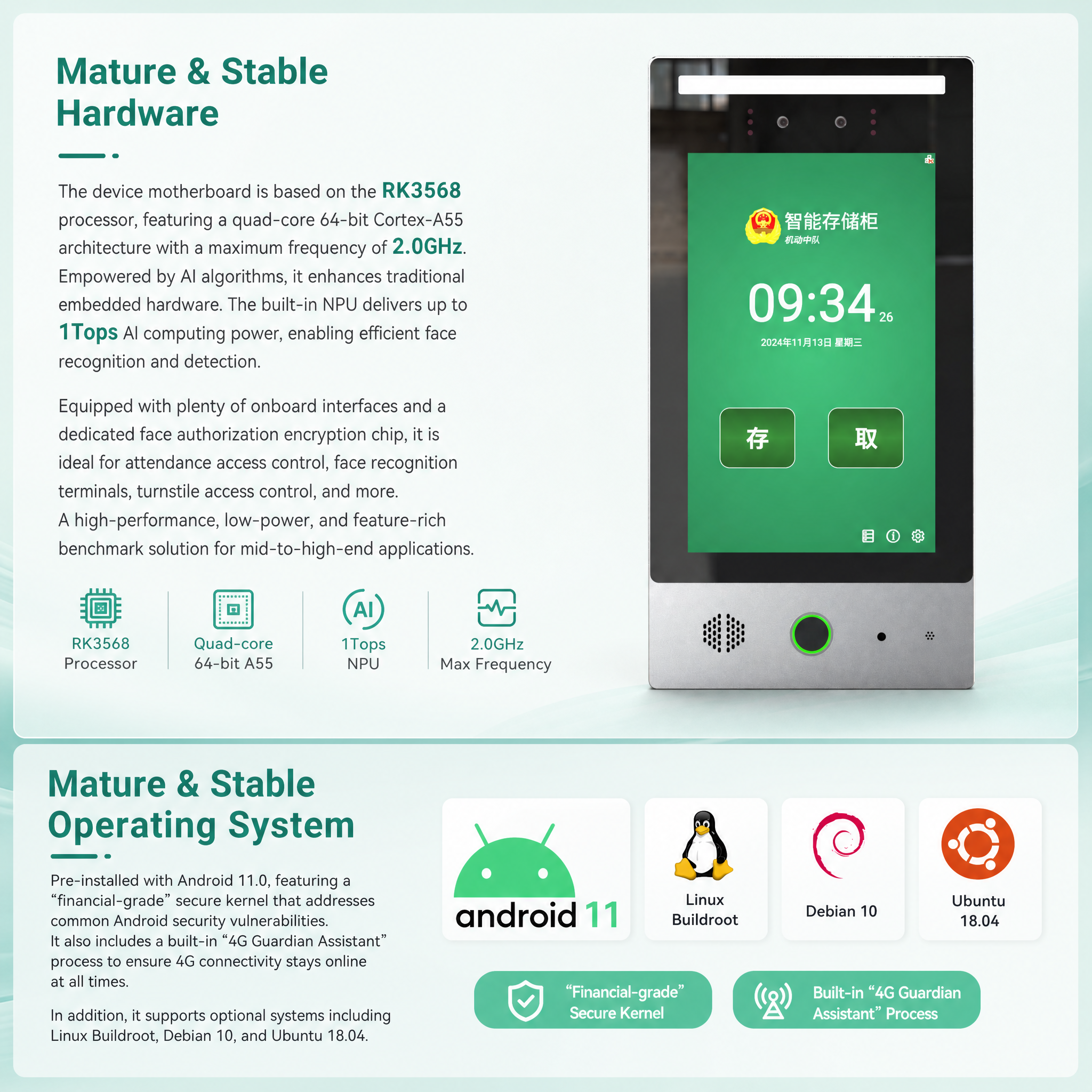

| CPU: | RK3568 Quad-core 64-bit Cortex-A55 architecture, built on high-end 22nm process, up to 2.0GHz |
| Access Control Integration: | Can be connected to access control systems for door unlocking upon successful facial recognition |
| Operating Parameters: | Voltage: 12V, Current: 3A, Operating temperature: -20°C to 70°C, Humidity: 20%-90% |
| External Interfaces: | 2 USB 3.0 ports, 1 RJ45 port, 1 DC socket, 1 HDMI output, 1 relay port, 4 TTL/232 ports, 1 RS485 port, 1 TF card slot, 1 headset port |
| Optional: | Capacitive fingerprint module, finger vein module |
