| Categories | Charger and Adapter Aging Rack Machine |
|---|---|
| Brand Name: | CPET |
| Model Number: | CP-300603 |
| Place of Origin: | China |
| MOQ: | 2sets |
| Price: | 7500dollars/set |
| Payment Terms: | L/C |
| Supply Ability: | 30sets/month |
| Delivery Time: | 30 work days |
| Packaging Details: | Wooden case packing |
| Power of single channel: | 200W/CH |
| Load Mode: | CC+CV |
| Guarantee period: | 1year |

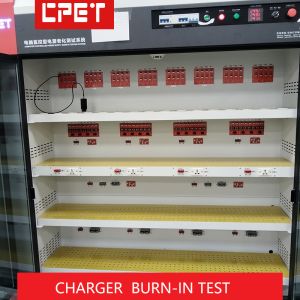

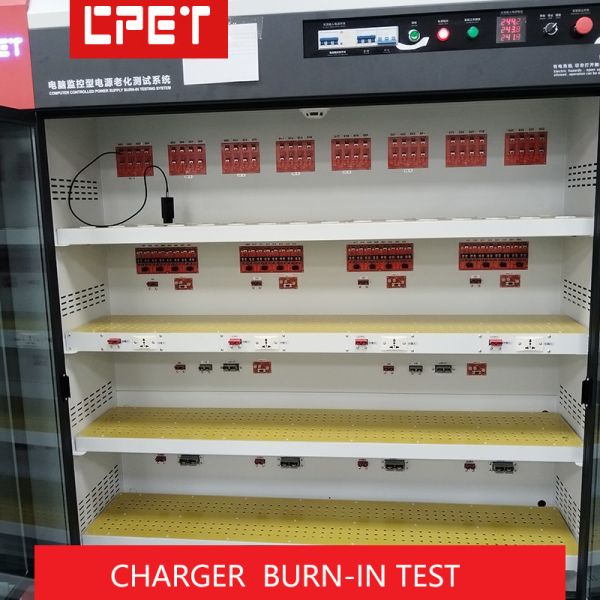

Aging Test Room For High Frequency Charging Equipment Manufacturer Customized
Application Scope![]()
Power sources such as chargers, power adapters, wireless charging,
Power Tool Charger,Sweeper Charger,etc.
excellent function![]()
| Model | CP-300603 |
| Power of single channel | 200W/CH |
| Quantity of load channels | 192CH |
| Scope of load voltage | 2-100V |
| Scope of load current | 0.2-10A/CH |
| Load precision | ±(1%+0.1%FS) |
| Load Model | Energy Saving |
| Load Mode | CC+CV Mode |
| Number for plies of product zone | Single side |
| Height for plies of product zone(mm) | 170 |
| Width of products zone(mm) | Series CC mode 340 |
| Temperature control of products zone | Temperature control type of products zone: normal temperature-60℃ |
| Structure material of trolley | Elaborately processed and produced with cold-rolled sheet |
| Mode of main control | Monitoring software for burn-in of computer-monitoring type power |
| Input mode of UUT | Multi-purpose socket/speaker wire clip/custom design |
| Interface mode of UUT | Connecting fixture boards (with various specifications) for first choice/custom design |
| Customizable fast charge function | QC, PO, FCP, SCP, PPS, etc. |
| External dimension | 2050*880*1900/custom design |
|
