1.35 Inch Micro OLED Display with 1200 C/D Brightness MIPI+SPI Interface and Silicon-Based Technology

Categories Micro OLED Display
Brand Name: HuaXin
Model Number: HX135KDP-NM2
Certification: ISO14001/ ISO9001/IATF16949
Place of Origin: China
MOQ: 500
Price: $71.4
Payment Terms: T/T
Supply Ability: 500K pcs per month
Delivery Time: 4~6weeks
Packaging Details: blister+foam box+bubble bag+inside carton+master carton
Display Technology: silicon-based display
Size: 1.35 inch
Name: color oled screen
Resolution: 3552x3840
interface: MIPI+SPI
View angle: all
Brightness: 1200c/d
  • Product Details
  • Company Profile

1.35 Inch Micro OLED Display with 1200 C/D Brightness MIPI+SPI Interface and Silicon-Based Technology

1.35 Inch Micro Oled Display Module 3552x3840 Resolution MIPI+SPI Interface 1200 C/D For Optimal Display
Technical Specifications
Part No:HX135KDP-NM2
display Mode1.35" micro OLED
outline size(mm)25.55*32.02
AA size(mm)24.65×25.1264
Display dots3552x3840
view Angleall
Brightness1200c/d
interfaceMIPI+SPI
Contrast Ratio100000:1

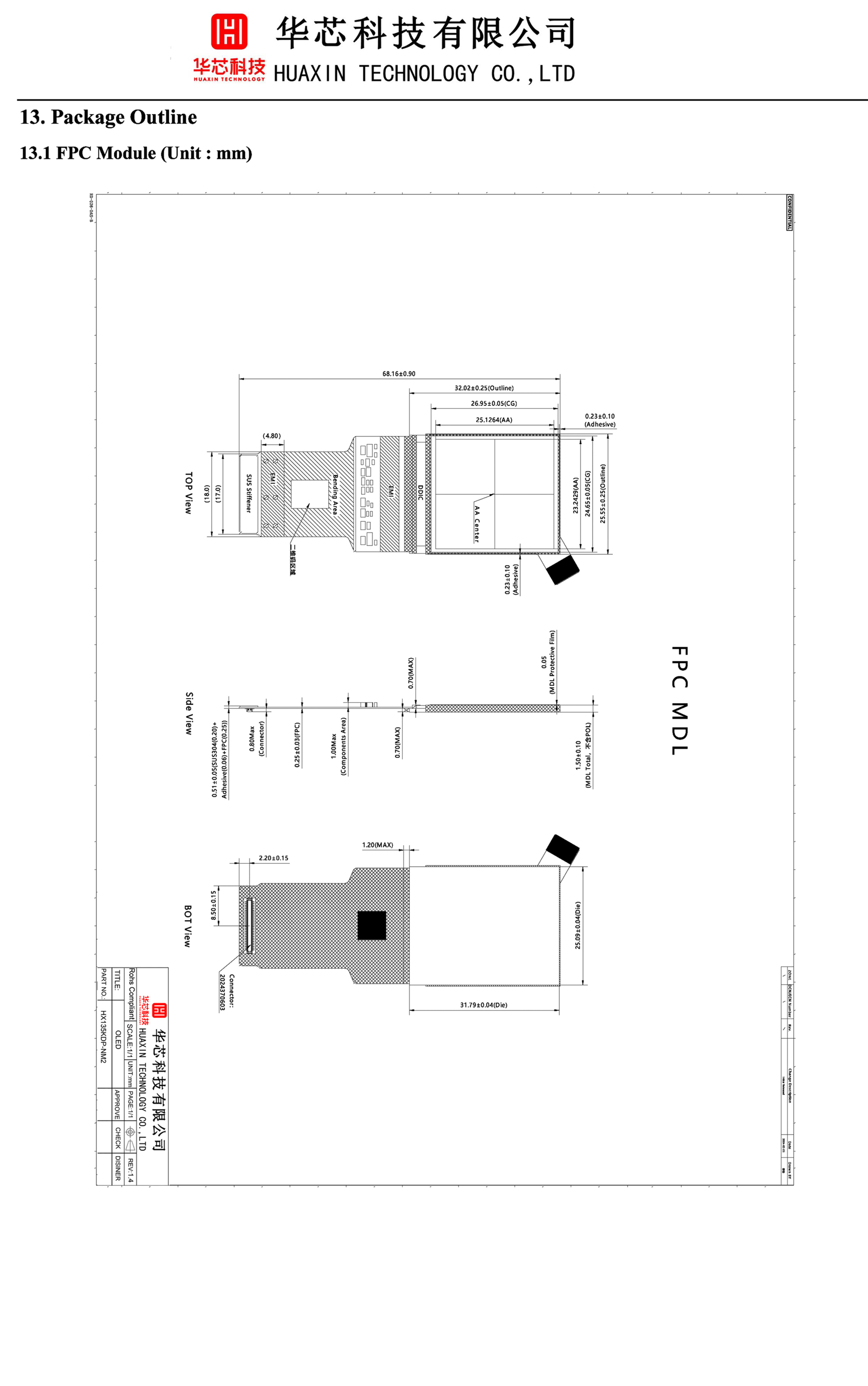

Technical drawing







Micro OLED Technology

Ultra-High Pixel Density (PPI) Thin, Lightweight, and Compact/ Superior Image Quality

Lower Power Consumption/Wide Operating Temperature Range

High Brightness & Efficiency (with advanced designs)

Manufacturing & Scalability Benefits

Limitations
  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to Micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from Micro LED technology
Our advantage
Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
• Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)

• Certifications: ISO14001, ISO9001/IATF16949, SGS

  • Cost-effective production base located in inland city
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom product design capabilities
Product Applications
  • VR/AR/MR headsets
  • Military / aerospace systems
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive displays
  • Wearable & smart glasses
