High Contrast 15000 Lumen 3D Laser Mapping Projector WUXGA Resolution

Categories 3D Mapping Projector
Brand Name: SMX
Model Number: MX-X15000U
Certification: ISO,CE
Place of Origin: China
MOQ: 1pc
Payment Terms: T/T
Supply Ability: 15000pcs/Monthly
Delivery Time: 5-20days
Packaging Details: Carton
Product Name: 3LCD Laser Projector
Brightness: 15,000 Lumen
Resolution: WUXGA
Contrast: 5,000,000:1
Lens: Motorized
Control: Remote
Len shift: Yes
Keystone: Yes
  • Product Details
  • Company Profile

High Contrast 15000 Lumen 3D Laser Mapping Projector WUXGA Resolution

High Contrast 15000 Lumen 3D Laser Mapping Projector WUXGA Resolution


Experience unparalleled clarity and brightness with the SMX MX-X15000U Laser Projector. Boasting an impressive 20,000 lumens, this projector delivers stunning visuals in WUXGA resolution, perfect for immersive 3D mapping applications. With advanced laser technology, precise color reproduction, and seamless connectivity options, the MX-X15000U projector is your ultimate tool for creating captivating visual experiences.


Key Features
  • 15,000 Lumen high brightness
  • WUXGA Resolution (1920 x 1200)
  • 5,000,000:1 High Contrast Ratio
  • Manual Lens with easy control
  • Lens Shift and Keystone Correction for flexible installation
  • Multiple Input/Output Control Interfaces
  • Laser light source with 20,000 hours lifetime

Applications
Large Venues: Perfect for auditoriums, conference halls, theaters, and other large venues where high brightness and clarity are essential.
Professional Presentations: Ideal for corporate presentations, educational institutions, museums, and other settings where impactful visuals are crucial.
Entertainment: Enhance your movie nights, gaming sessions, or events with stunning visuals that captivate your audience.
Specifications
Model No.15000U
Brightness (ANSI Lumens)15000
Light SourceLaser
Display Panel3x0.76"
Display TechnologyLiquid Crystal Display
Native ResolutionWUXGA (1920 x 1200)
Light Source LifetimeNormal mode: 20000hrs
ECO mode: 20000hrs
Projection LensZoom Lens (Motorized)
Throw Ratio (16:10)1.30-3.02
Screen Size40-500 inch
WeightApprox 25kg
Contrast Ratio (Min)100000:1
Noise LevelNormal(90%): 35dB
ECO1(75%): 32dB
ECO2(45%): 32dB

Input/Output Ports

InputVGA (x1), HDMI 1.4 (x2), USB-A (x1), USB-B (x1), RJ45 (x1), DVI-D (x1), HD BaseT (x1), HD-SDI (3G-SDI) (Optional), Audio in (mini jack, 3.5mm) (x1)
OutputVGA (x1), HDMI 1.4 (x1), Audio out (mini-jack, 3.5mm) (x1)
ControlRS232 (x1), RJ45 (x1), USB-B (x1), Wired Remote (IN/OUT) (x1 each)

Optional Lenses

Model#OL-MX13ZLOL-MX15ZLOL-MX40ZLMOL-MX41ZLMOL-MX43ZLMOL-MX50SLM
Lens TypeZoom LensZoom LensZoom LensZoom LensZoom LensZoom Lens
Zoom/FocusManualManualMotorizedMotorizedMotorizedMotorized
Throw ratio (16:10)1.46-2.954.59-7.020.79-1.111.30-3.022.99-5.930.6-0.75
Zoom Ratio21.521.42.32.01.3
Weightapprox.0.8kgapprox.1.0kgapprox.1.63kgapprox.1.8kgapprox.1.8kg

High Contrast for High-Quality Image

Experience the next level of visual excellence with our projector featuring a dynamic high contrast ratio of 3000000:1. Immerse yourself in a world of stunning imagery, vibrant colors, and immersive viewing experiences that will leave you in awe.


High contrast laser projector displaying vivid colors

WUXGA Resolution


WUXGA (Wide Ultra eXtended Graphics Array) resolution is a display resolution of 1920 x 1200 pixels with a 16:10 aspect ratio. It offers a higher pixel count compared to Full HD (1920 x 1080), providing sharper images and more detailed visuals.


WUXGA resolution comparison showing detailed image quality

Lens Shift

The lens shift capability allows you to adjust the position of the projected image without physically moving the projector itself. This feature enables you to shift the projected image up, down, left, or right within a certain range, providing flexibility in projector placement while maintaining optimal image quality.


Diagram showing lens shift functionality

360° Projection

360 degree projection demonstration

Keystone Correction

These laser projectors are equipped with a digital keystone correction function, which allows users to easily correct the image. With the remote control, you can connect it to a large screen with just a few clicks.


Keystone correction diagram showing image adjustment

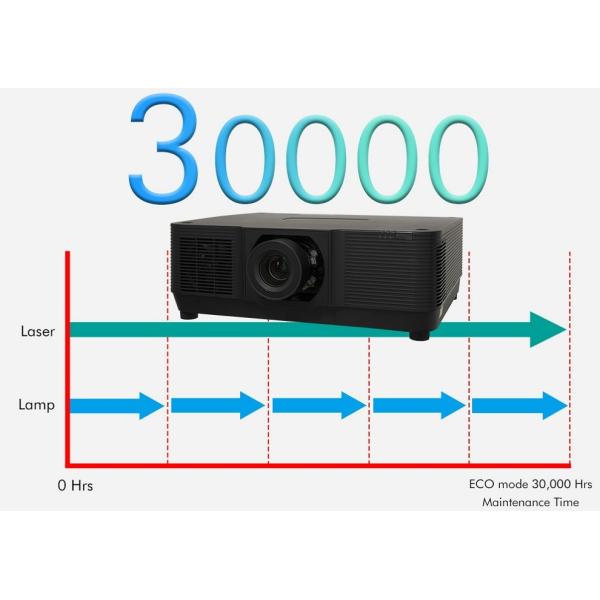

Laser Light Source with Long Lifetime


This model with a laser light source is designed to redefine your visual experiences with unparalleled longevity and enhanced performance. With a normal mode offering an impressive 20,000 hours of usage and an ECO mode extending the lifetime to an extraordinary 30,000 hours, this projector is built to elevate your viewing and presentation capabilities while ensuring long-lasting reliability.


Laser light source technology with long lifespan

HD BaseT Input and 3G-SDI (Optional)

HDBaseT, with excellent transmission capabilities, can integrate audio and video device signals from computers, laptops, physical cameras, Blu-ray, and DVD sources into a CAT5 signal cable for distortion-free transmission.


HD BaseT connectivity diagram

LAN Control


Central system administrators can control multiple projectors through a Local Area Network, allowing projector users to have a better user interface.


LAN control interface for multiple projectors

SMX MX-X15000U Laser Projector product photo
