| Categories | Environmental Test Chamber |
|---|---|
| Brand Name: | HAIDA |
| Place of Origin: | Guangdong, China |

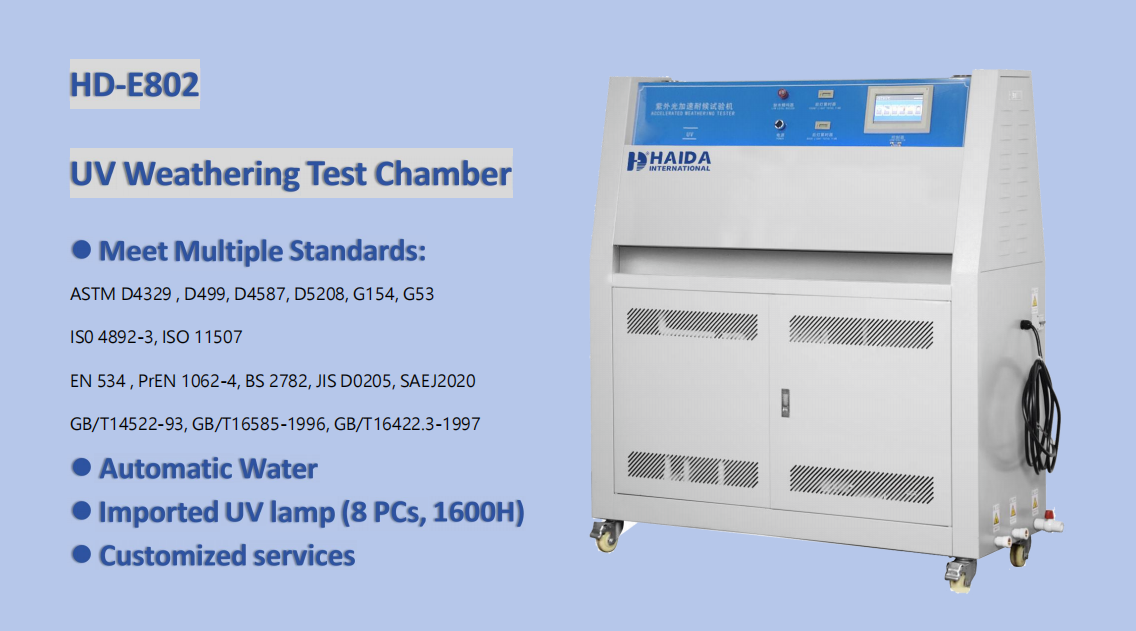

| Model Number: | HD-E802 |
| MOQ: | 1 |
| Price: | $2,588-3,588 |
| Temperature range: | RT+20 ℃ ~ 70 ℃ |
| Blackboard Temp.: | 50 ℃~ 80 ℃ / tolerance of ± 1 ℃ |
| Temperature Fluctuation: | ±1 ℃ |
| UV lamp: | 8 pcs, 1600 hours lifetime |
| Ultraviolet wavelength: | 290nm~400nm |
| Effective irradiation area: | 900*210mm |
| Standard Specimen size: | 75 * 290mm (12pcs)/ 75*150mm (24pcs) |
| Distance between sample and lamp: | 50±2mm |
| Chamber material: | Stainless Steel 304 |
| Control system: | PLC controller (illumination, condensation and water spray) |
| Chamber dimension: | 1300*500*1460mm |
| Humidity range: | ≥75%RH |
| Water usage: | 8L/day |
| Irradiance range: | 0.45~0.90W/m2 |
| Lamp power: | 40W/Piece |
| Item | Specification |
|---|---|
| Chamber dimension (W*D*H) | 1300*500*1460mm |
| Chamber material | SUS#304 stainless steel |
| Temperature range | RT+20℃ to 70℃ |
| Temperature fluctuation | ≤±1.0℃ |
| Temperature uniformity | 3℃ |
| Humidity range | ≥75%RH |
| Controller | Programmable controller, LCD touch screen |
| Control mode | Balance temperature humidity control (BTHC) |
| Test cycle setting | Exposure, condensation and water spray test cycle is programmable |
| Water spray cycle | Spray 18mins in every 120mins / spray 12mins in every 60mins |
| Water usage | 8L/day |
| Distance from sample to lamp | 55±2mm |
| Centre distance between lamps | 65~70mm |
| Irradiance range | 0.45~0.90W/m2 |
| UV lamps | Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime) |
| Lamp power | 40W/Piece |
| Specimen Size | 75×290mm (24pcs) 75x150mm (48pcs) maximum thickness 5mm |
| Testing time | 0~999H, adjustable |
| Protection system | Overload short circuit protection, Over temperature protection, Water lacking protection, Earth leakage protection, Auto shut off protection |
| Packaging Dimensions (W*D*H) | 1490*620*1620mm |
| Power supply source | single-phase, 220V±10%, 50Hz (can be appointed) |
| Gross Weight | 180kg |
| HS Code | 8479899990 |
|
