Slide rail movement Walker Leg and Support Foot Pad Friction Tester

Categories	Furniture Testing Machines
Brand Name:	Dongjun
Model Number:	DJ-26-15
Certification:	ISO9001
Place of Origin:	China
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500pcs
Delivery Time:	15-25Work days
Packaging Details:	Wooden crate packaging
Test Station:	Single Test
Test angle:	70°±2°
Test speed:	200-500mm/speed is adjustable
Test itinerary:	300mm
power supply:	220V

Contact Now

Add to Cart

Product Details
Company Profile

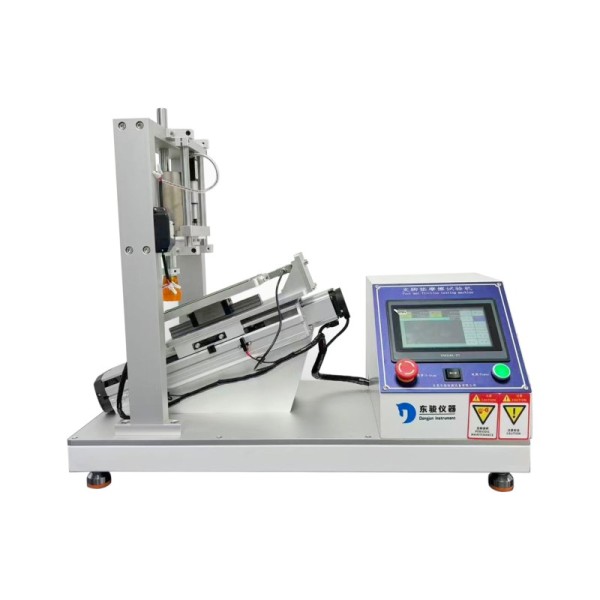

Slide rail movement Walker Leg and Support Foot Pad Friction Tester

Walker Leg and Support Foot Pad Friction Tester

Name: Slide rail movement Walker Leg and Support Foot Pad Friction Tester
Brand: Dongjun
Price: 1 USD

Product Summary

This equipment is used to test the foot pads of walkers and crutches, as well as their friction force. It is controlled by a PLC, with clear and printable test data, curve display for force measurement, and touch screen operation functions.

About This Product

The Walker Leg and Support Foot Pad Friction Tester is a precision testing device specially designed to detect the anti-slip performance of support foot pads for walkers, crutches and other aids. It is developed in accordance with the GB/T 40889.1-2021 standard at its core. By simulating actual service conditions, it quantifies the dynamic friction force between the support foot pads and contact surfaces to evaluate their anti-slip capability, serving as a key quality inspection equipment to ensure the safe use of such aids by the elderly and people with disabilities.

Parameters

Parameter Item	Specification
Test Station	Single Test
Test angle	70°±2°
Test speed	200-500mm/speed is adjustable
axial load	50士1N (The loading force can be adjusted freely)
Test itinerary	300mm
Movement mode:	Slide rail movement
The test speed	test duration can be set freely.
Control mode	PLC control, touch screen display + printing of test data
power supply	AC 220V

Product Features and Advantages

This equipment adopts a PLC control system and is equipped with a touch-screen operation interface, which can display the force measurement curve in real time and support data printing, enabling precise and controllable testing. During testing, the equipment operates in a sliding rail movement mode, applying an adjustable axial load of 50±1N to the foot pad at a testing angle of 70°±2°, and completes a 300mm stroke friction test at an adjustable speed of 200-500mm/min. The testing speed and time can also be freely set to meet different testing requirements.

Its core applications cover three major scenarios: first, batch ex-factory inspection for walking aid manufacturers to determine whether the friction of the support feet meets standards; second, material and structural optimization during the R&D phase, using data to guide improvements in foot pad material and tread design; third, compliance certification by third-party testing institutions, providing authoritative test data for products to control the safety performance of walking aids from the source.

Company Profile

PACKING AND TRANSPORTATION

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
