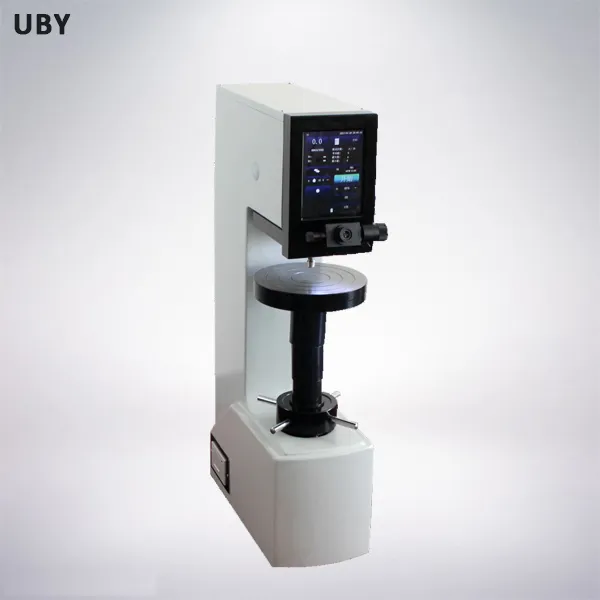

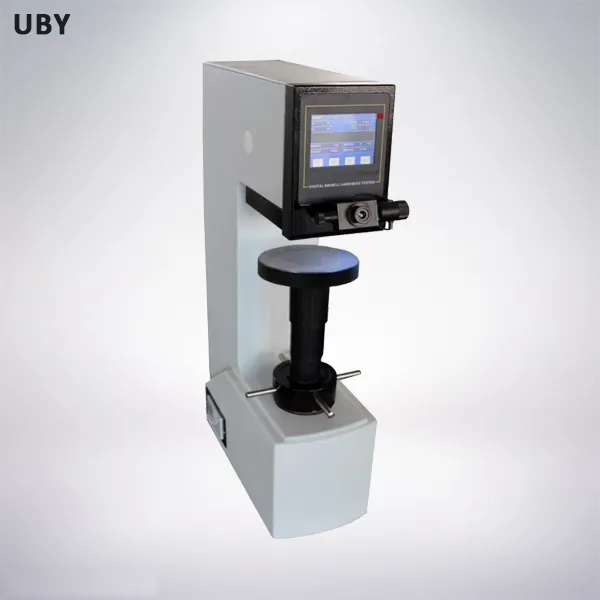

HBS-62.5(A) Automatic Turret Digital Display Small Load Brinell
Hardness Tester
Application Scope
The HBS-62.5 digital display small load Brinell hardness tester
features unique precision design in mechanics, optics, and light
source systems, delivering clearer indentation images and more
accurate measurements. Equipped with a color LCD screen and
high-speed 32-bit microprocessor control system, it enables full
man-machine dialogue and automatic operation with high test
accuracy, simple operation, excellent sensitivity, user-friendly
interface, and stable indication values.
Test force is applied through electronic closed-loop control,
automatically applying, maintaining, and removing test forces while
directly displaying hardness values. The modular structure design
allows immediate use upon power connection without requiring weight
installation.
Applications
Determination of Brinell hardness for ferrous metals, non-ferrous
metals, and bearing alloy materials. Particularly suitable for
Brinell hardness testing of soft metal materials and small parts
with wide application range.
Key Features
- One-piece casting body construction with long-term aging treatment
ensures minimal deformation during extended use and excellent
adaptation to various harsh environments
- Automotive-grade baking paint finish provides high-quality scratch
resistance that remains bright and new-looking for years
- Senior optical engineer-designed optical system delivers clear
images, functions as a simple microscope with adjustable brightness
for comfortable vision during extended operation
- Automatic turret allows easy switching between high and low
magnification objective lenses for sample observation and
measurement, preventing damage to optical components
- High-resolution measurement objective lens combined with
high-definition digital measurement eyepiece with built-in length
encoder enables one-key indentation diameter measurement
- Optional CCD image processing system and video measurement device
available
- Bluetooth module, Bluetooth printer, and optional Bluetooth PC
receiver for wireless printing and data transmission
- Accuracy conforms to GB/T231.2, ISO 6506-2, ASTM E10 standards
Technical Specifications
| Measuring Range | 5-650HBW |
| Test Force | 9.807, 49.03, 98.07, 153.2, 294.2, 612.9N (1, 5, 10, 15.625, 30,
62.5kgf) |
| Optical Measurement System | Objective: 2.5×, 10× | Total Magnification: 25×, 100× | Measuring
Range: 200μm | Graduation Value: 0.025μm |
| Dimensions & Power | Dimensions: 600×330×700mm | Maximum Sample Height: 200mm | Indenter
Center to Machine Wall: 130mm | Power Supply: AC220V/50Hz | Weight:
70Kg |
Main Accessories
- Daping test platform: 1
- Brinell Ball Indenter: Φ1, Φ2.5 (1 each)
- Xiaoping test platform: 1
- Standard Brinell hardness block: 2
- V-shaped test stand: 1
- Printer: 1
Our Service Commitment
We provide comprehensive consultative selling services throughout
the entire business process:
Customer Inquiry Process
Discuss testing requirements and technical details, suggest
suitable products for confirmation, and provide competitive pricing
based on customer requirements.
Specifications Customization Process
Create detailed drawings for customized requirements, provide
reference photos showing product appearance, confirm final
solution, and establish final pricing.
Production and Delivery Process
Manufacture machines according to confirmed purchase order
requirements, provide production progress photos, conduct factory
or third-party calibration as required, perform comprehensive
testing, and arrange professional packaging and timely delivery.
Installation and After-Sales Service
Provide field installation services and comprehensive after-sales
support to ensure optimal performance.
