2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances

2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances

2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances
Categories TFT LCD Display Panel
Place of Origin: Guangdong, China
Brand Name: Genyu
MOQ: 1000
Price: $2.05-2.19
Display Size: 2.4 inch
Resolution: 240*320 dots
Display Mode: Transimissive, TN/IPS
Driver IC: ST7789/ NV3030/ IIL9341, etc.
Viewing Angle: 6/12 O'clock or Free
Backlight: 4 Chip White LED
Interface: SPI, MCU, RGB, etc.
FPC Connector: Plug-in or Soldering
Operating Temperature: -20~+70℃
Module Size: 42.72*60.26*2.35mm
Panel Active Area: 36.72*48.96mm
Luminance: 300 cd/m2
Contrast Ratio: 250
Control IC: ST7789V
FPC Type: 18 pin welding Type
Contact Now
  • Product Details
  • Company Profile

2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances

2.4 Inch TFT LCD Display Modules

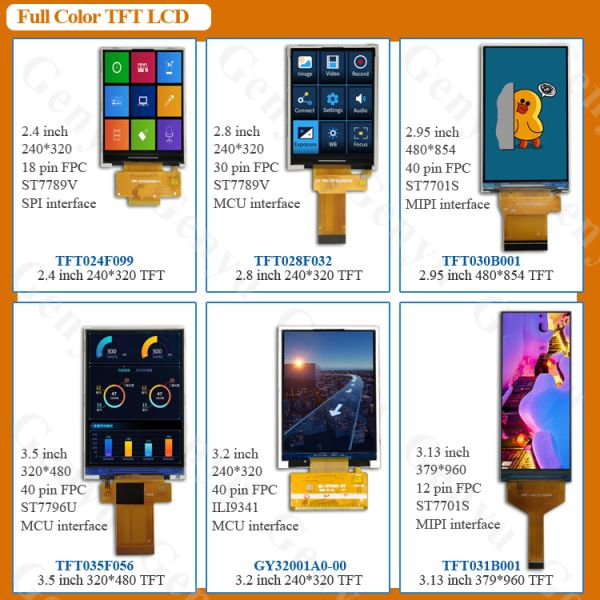

2.4 inch TFT LCD display product overview 2.4 inch TFT LCD display technical specifications
GY-TFT024FT126 - Resistive Touch Screen 2.4 inch TFT
  • Module Size: 42.72×60.26×2.35mm
  • Panel Active Area: 36.72×48.96mm
  • 12:00 viewing angle panel
  • ST7789V Control IC
  • Resolution: 240×320
  • 4 SPI Interface
  • Luminance: 300 cd/m²
  • Contrast Ratio: 250
  • 4 white LEDs backlight
  • Operating Temperature: -20°C to +70°C
  • 20 pin Pull-in type connector FPC
GY-TFT024B045 - IPS TFT LCD Display
  • Module Size: 42.72×60.26×2.20mm
  • Panel Active Area: 36.72×48.96mm
  • IPS full viewing angle panel
  • ST7789V Control IC
  • Resolution: 240×320
  • MCU 8080 16bit Interface
  • Luminance: 300 cd/m²
  • Contrast Ratio: 250
  • 4 white LEDs backlight
  • Operating Temperature: -20°C to +70°C
  • 24 pin Pull-in type connector FPC
2.4 inch TFT LCD display connector details 2.4 inch TFT LCD display side view
GY-TFT024F099 - SPI Interface TFT LCD Display
  • Module Size: 42.72×60.26×2.35mm
  • Panel Active Area: 36.72×48.96mm
  • 12:00 viewing angle panel
  • ST7789V Control IC
  • Resolution: 240×320
  • SPI Interface
  • Luminance: 300 cd/m²
  • Contrast Ratio: 250
  • 4 white LEDs backlight
  • Operating Temperature: -20°C to +70°C
  • 18 pin welding Type FPC

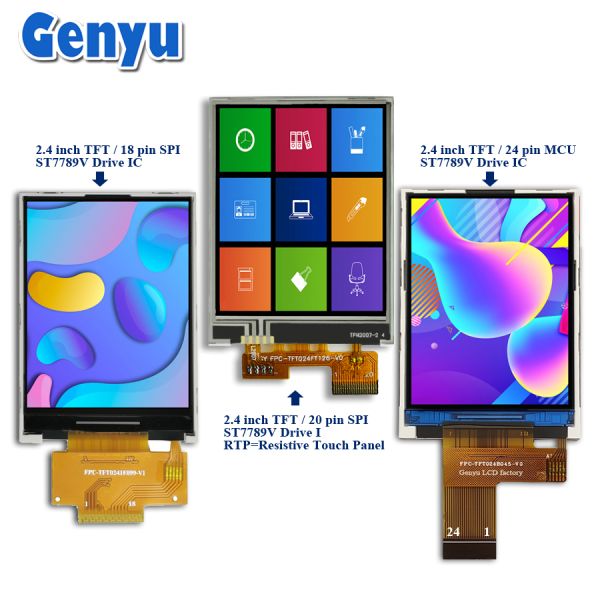

2.4 inch TFT LCD display SPI interface 2.4 inch TFT LCD display front view 2.4 inch TFT LCD display application examples
Complete TFT LCD Display Size Range
TFT LCD SizeView Angle OptionsInterface OptionsFPC Options
0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7.0"IPS Full view angle, 12:00, 6:00RGB, SPI, I2C, 8080, 6800, serial port, parallel port, Support customizationPull-in Connector, Solder Type, Support customization
Click on the pictures below to explore our complete TFT display portfolio:

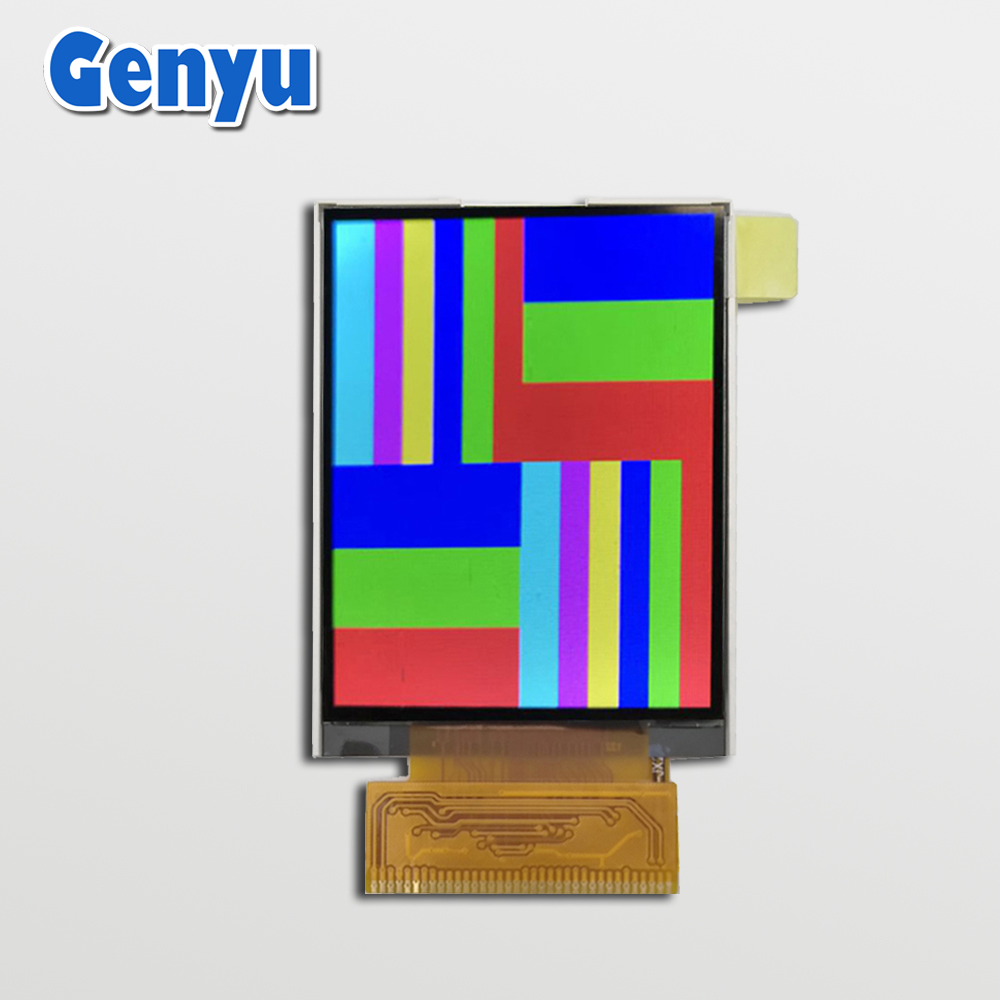

0.96 inch TFT display 80xRGBx160 resolution 1.06 inch TFT display 96xRGBx160 resolution 1.28 inch TFT display 240xRGBx240 resolution 1.44 inch TFT LCD 128xRGBx128 resolution 1.54 inch TFT display 240xRGBx240 resolution 1.77 inch TFT display 128xRGBx160 resolution 2.2 inch TFT screen 176xRGBx220 resolution 2.4 inch TFT with RTP 240xRGBx320 resolution 2.8 inch TFT display 240xRGBx320 resolution 2.95 inch TFT LCD 480xRGBx854 resolution 3.13 inch TFT LCD 379xRGBx960 resolution 3.2 inch TFT screen 240xRGBx320 resolution 4.3 inch TFT with CTP 480xRGBx272 resolution 4.3 inch TFT 480xRGBx272 resolution 7.0 inch TFT LCD 800xRGBx480 resolution
About Shen Zhen Genyu Optical Co., Ltd.
Genyu offers tens of thousands of LCD options for your reference. Please share your requirements with Erica Tan, who will recommend similar LCDs according to your specifications, or we can customize LCDs to meet your exact requirements.
For more datasheets and samples, please click here.
Genyu Optical company overview Genyu Optical product portfolio
Additional Display Technologies
PMOLED Display
Genyu offers mini size OLED displays in sizes: 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.3", 1.54", 2.08", 2.3", 2.4" with SSD1315 and SSD1306 drive ICs supporting I2C and SPI interfaces.
PMOLED display product range OLED display technical specifications OLED display applications OLED display close-up view
Custom Segment LCD Display
Genyu has produced tens of thousands of segment LCDs including TN, STN, HTN, FSTN, and VA/BTN black LCD displays. We can recommend similar LCDs or design custom LCDs according to your requirements.
Custom segment LCD display examples Segment LCD display applications Segment LCD display technical details Segment LCD display product range
128x64 Dot Matrix Graphic LCD Display
Genyu offers various dot matrix LCD displays including: 96x16, 96x24, 122x32, 132x36, 132x96, 128x32, 128x64, 128x96, 160x32, 160x80, 192x64, 240x80, 128x128, 160x160, and up to 320x240 resolutions.
Dot matrix LCD display examples Graphic LCD display applications Dot matrix LCD technical specifications Graphic LCD display product range
TFT LCD Module Portfolio
Genyu provides HD full color TFT LCD displays in sizes: 0.91", 1.0", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7", and 10.1" with standard sizes, standing stock, and samples available.
Wide Range of Applications:
  • Wearable Devices
  • Medical Equipment
  • Financial Systems
  • Industrial Controls
  • New Energy Systems
  • Communication Devices
  • Instrumentation
TFT LCD module applications TFT LCD display portfolio TFT LCD technical specifications TFT LCD display examples TFT LCD application scenarios
Manufacturing Capabilities
We can design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customers' requirements. Our current annual production capacity has reached 100 million LCD screens, 30 million LCMs, and 40 million B/L units.
Quality Manufacturing Environment
Nearly 6000 square meters of dust-free workshop with a cleanliness level of 100k. The entrance and exit of workshop materials are equipped with totally closed transfer windows, and the entrance is equipped with air shower systems that effectively and rapidly remove dust, hair, and other contaminants from clothing, reducing pollution problems caused by personnel entering and leaving the workshop.
Genyu Optical company profile Genyu manufacturing facility air shower system Genyu production capabilities overview Genyu manufacturing process Genyu quality control systems Genyu production equipment Genyu manufacturing facility Genyu final product inspection
