New Energy Automotive Training Equipment High Voltage Safety Training Platform

Categories New Energy Automotive Training Equipment
Model Number: ZC-QCG13A
Brand Name: ZhongCai
Place of Origin: Guangdong, China, Guangdong, China
MOQ: 1
Material: Metal, Steel
Electric Powered: No
Size: 1200x580x1800mm(47.24x22.83x70.87in)
Product name: High Voltage Safety Training Platform
MOQ: 1 Set
Certificate: ISO9001/ISO14001/CE
Warranty: 1year
Color: As shown or customized
Function: Learning
Language: OEM Customized
Application: Automotive College and School
  • Product Details
  • Company Profile

New Energy Automotive Training Equipment High Voltage Safety Training Platform

High Voltage Safety Training Platform for New Energy Vehicles
High Voltage Safety Training Platform overview
Equipment Overview
This training platform comprehensively demonstrates the high-voltage safety protection system for electric vehicles, dynamically simulating the operating status and working processes of the entire vehicle's high-voltage safety protection system.
Key Features & Configuration
  • 4mm thick aluminum composite panel with primer coating
  • Color circuit diagrams and working principle schematics printed on panel
  • Rotary switch and real lithium iron phosphate battery pack
  • Electric vehicle safety maintenance plug module
  • High-voltage circuit simulation system with safety relay components
  • Simulated control switches for hands-on training
  • Sheet metal base with self-locking casters for mobility
  • 30cm desktop surface for documentation and testing instruments
  • Operates using electric vehicle battery pack power supply
  • 12V DC power provided by DC/DC module
  • 220V national standard charging port and charging gun included
Technical Specifications
NameHigh Voltage Safety Training Platform
CategoryTeaching Board Equipment
BrandZhongcai
Place of OriginChina Guangzhou
CertificationISO9001/ISO14001/CE
ParameterCustomized
Input SupplyAC 220V±10% 50Hz
Working PowerDC 12V
Size (L×W×H)1200×580×1800mm
Weight200kg
Training Capabilities
Primary Training Applications: External power supply operation, high voltage system safety protocols, battery pack maintenance, charging system operation, and comprehensive high-voltage safety procedures.
Product Gallery

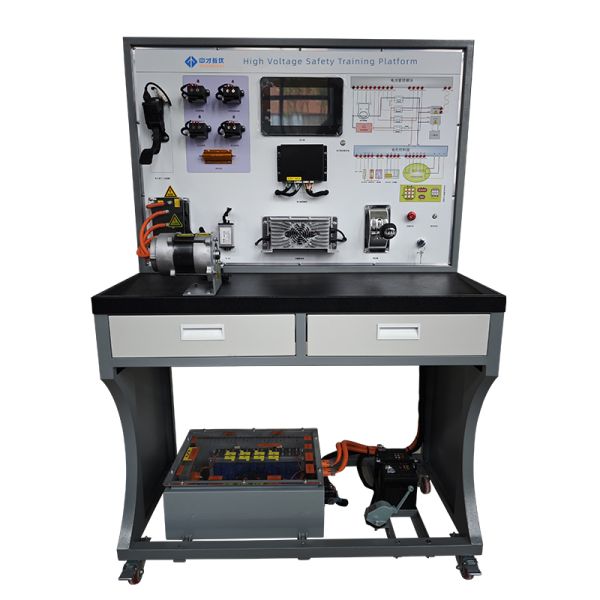

High voltage safety training platform front view Training platform control panel detail Safety components and wiring demonstration Battery pack and charging system High voltage circuit simulation module Safety relay components close-up Maintenance plug module detail Training platform mobility features Additional training platform view Control switches and interfaces System wiring and connections Safety training demonstration Platform structural details Electrical component layout Training session setup System operation demonstration Complete training platform overview
