Programmable Touch Screen Salt Spray Test Chamber Salt Spray Chamber Environment Test Chamber for Electronic Test

Programmable Touch Screen Salt Spray Test Chamber Salt Spray Chamber Environment Test Chamber for Electronic Test

Programmable Touch Screen Salt Spray Test Chamber Salt Spray Chamber Environment Test Chamber for Electronic Test
Programmable Touch Screen Salt Spray Test Chamber Salt Spray Chamber Environment Test Chamber for Electronic Test
Categories Environmental Test Chamber
Brand Name: YUYANG
Model Number: YY90
Certification: CE,ISO: 3768, 3769, 3770; ASTM: 8117
Place of Origin: China
MOQ: 1 set
Price: $855
Payment Terms: T/T
Supply Ability: 100 sets per month
Delivery Time: 15-20 work days
Packaging Details: Plywood Case
Model: YY90
Test Chamber: 900*600*500 (W*D*H）mm
Outside box size: 1410*880*1280 (W*D*H）mm
Power: 220V
Supply: single phase:2KW 50HZ
Standard: ISO 9227、ASTM B-117
Saline spray test: NSS(neutral)
Test room: 35℃±1℃ 47℃±1℃
Pressure air barrel: CASS（copper acetate）
Corrosion resistance test: 50℃±1℃ 63℃±1℃
Contact Now
  • Product Details
  • Company Profile

Programmable Touch Screen Salt Spray Test Chamber Salt Spray Chamber Environment Test Chamber for Electronic Test

Programmable Touch Screen Salt Spray Test Chamber

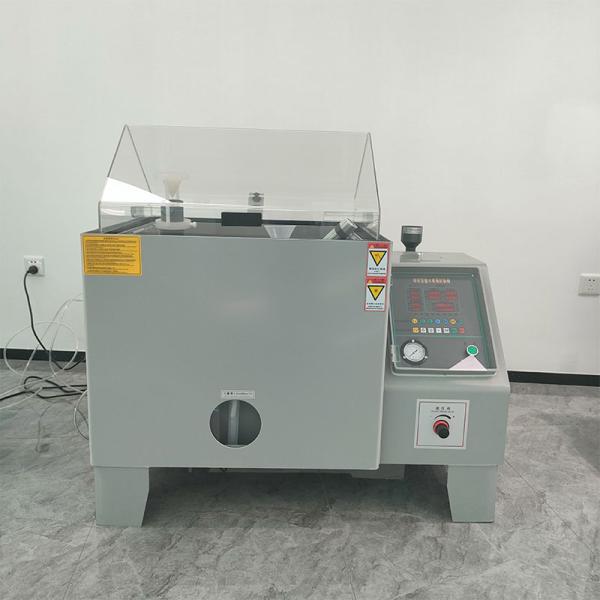

Programmable Touch Screen Salt Spray Test Chamber for electronic testing
Product Overview
This programmable touch screen salt spray test chamber is designed for environmental testing of electronic components, metal materials, and industrial products. The chamber meets popular testing standards including ASTM B117, ISO 9227, ISO 7253, and ASTM G85 for salt spray corrosion testing.
Testing Applications
Ideal for salt spray testing of zinc plating, salt-resistant spray paint, powder coating, stainless steel, and various surface treatments including electroplating, organic and inorganic films, anodize treatments, and anti-rust oils to evaluate corrosion resistance and establish product quality.
Design Standards Compliance
CNS: 3627, 3385, 4159, 7669, 8886
JIS: D0201, H8502, H8610, K5400, Z2371
ISO: 3768, 3769, 3770
ASTM: B117
Chamber Structure Features
  • Transparent chamber cover for easy observation of test samples and spray conditions
  • Waterproof structure between cover and body prevents salt spray overflow
  • Tower spraying system with salt solution filter and non-crystal nozzle for even salt spray distribution
  • Adjustable settlement control for precise testing conditions
Technical Specifications
ModelYY1015-60YY1015-90YY1015-120
Inner Box Size (L×W×H) cm60×40×4590×60×50120×100×50
Outside Box Size (L×W×H) cm107×60×118141×88×128190×130×140
Lab Volume108L270L600L
Brine Tank Capacity15L25L40L
Power1AC220V, 10A1AC220V, 15AAC 1, 220V, 30A
Performance Parameters
Temperature Range: 35°C~55°C
Temperature Fluctuations: ≤±0.5°C
Temperature Uniformity: ≤±2°C
Temperature Precision: ±1°C
Spray Quantity: 1.0~2.0 ml/80cm²/hr
Test Chamber Temperature: NSS ACSS 35±1°C, CASS: 50±1°C
Saturated Air Barrel Temperature: NSS ACSS 47±1°C, CASS 63±1°C
Key Features
  • Low loading threshold for ergonomic loading and unloading
  • "Easy Open" pneumatically operated canopy with safety interlock
  • Dry seal gasket to prevent operator clothing from getting wet
  • Timed canopy lock and automatic purge system
  • Easily accessible salt spray atomizers in transparent acrylic
  • External portable salt solution tank for easy cleaning
  • Central viewing window for unobstructed visual access
  • Base castors and integrated forklift runners for easy transportation
Construction & Warranty: Durable hard PVC construction with anti-corrosion properties. Easy to clean and operate with 1-year warranty included.
