| Categories | Outdoor Digital Signage Display |
|---|---|
| Place of Origin: | CHINA |
| Brand Name: | JCVISION |
| Certification: | CE/ROHS |
| MOQ: | 1 |
| Delivery Time: | 10DAYS |
| Payment Terms: | TT |
| Response time: | 6ms,8ms,5ms,14 (Typ.)(Tr+Td),6.5ms |
| Type: | TFT,LCD Display,Outdoor Advertising Lcd Display Screen Tv Digital Signage Kiosk |
| Brightness: | 2000cd/m2,450cd/m2,2000nits,1500/m2,500 cd/m2 |
| Application: | Outdoor,Indoor,hotel,airport,exhibition |
| Input voltage: | AC100~240V 50 /60 HZ,AC 110V~240V,50/60Hz,320W,AC100~240V 50-60 HZ |
| Viewing angle: | 178 /178,89/89/89/89,178°/178°,178 °V /178°H,89°/89°89°/89°(Typical) |
| Pixel pitch: | 0.4845(H)*0.4845 (V),0.4845mm,0.831(H) x 0.831(V),0.08275*0.24825,0.0817(H) X 0.2451(V) mm |
| Warranty: | 1 Year,One Year,2 Years,3 years,12 Months |
| Color: | 16.7M,Black/Silver/white,or be optional,Color,Black |
| Panel size: | 42 Inch,customized,55inch,65 inch,230x105x35mm |
| Max resolution: | 1920*1080,1920(RGB)*1080(FHD),1080P,3840*2160 |
| Product name: | 55 Inch High Brightness Outdoor Digital Signage Advertising Display,22-inch Fanless Panel Pc Computer,65inch large outdoor digital signage,Advertising Display,Outdoor advertising screen digital signage outdoor |
| After-sales service provided: | Video technical support,Online support,Free spare parts,Field installation,commissioning and training |
| Cpu: | 2GHz,A83T,octa core,ARM A17 Quad 2.0GHz,Dual-core |
| Touch screen: | Multi Points foil Touch,10-Point Capacitive /ir Touch,Touch Foil(optional),IR touch(Capacitive/SAW touch Optional),optional |
| Material: | Metal Case + Toughened Glass Panel,Cold Rolled Steel,Metal Case+tempered glass,1.2-1.5mm metal plate |
| Installation: | floor standing,Floor standing or customized |
| Size: | 42~65inch,65",65 inch (other sizes available),50",17-84 Inch Optional |
| Operating system: | Android 5.1,Android 4.4,X86 Windows7,CF/SD/USB,Android(Windows optional) |
JCVISION Technology Inc
43inch Semi-outdoor High brightness display
Features
u AppearanceAdopting an industrial-grade structural design concept, it features a one-piece molded frame, a slim and aesthetically pleasing body, simple installation and convenient maintenance, and a unique heat dissipation technology that supports 24/7 operation.
u High Definition: Utilizes an IPS high-definition LCD panel, featuring vibrant colors, high brightness, and supports up to 2160P video and image decoding playback, achieving high-quality image output.
u intelligent:Equipped with an intelligent input and display system, it features a wide range of mainstream ports, powerful audio and video decoding capabilities, automatic signal recognition, simple operation, and meets diverse usage needs.
u Scenarios: Supports horizontal/vertical installation, applicable to a wide range of scenarios, and is widely favored by government, education, finance, transportation, hotels, supermarkets, exhibition halls, medical, catering, and other industries.
u High-end: Combining numerous advantages such as aesthetics, high definition, explosion-proof, ease of use, commercial application, and intelligence, it is a high-end commercial display terminal device favored by many industries.
Trade Condition | ||||
Model No. | JC-OW-S43A-NT | |||
Display parameters | ||||
LCD Grade | New A+ LCD display panel | |||
Panel size | 43 inches | |||
resolution | 1920*1080 | |||
Viewing angle | 89/89/89/89 | |||
Display area | 940.896*529.254mm (H×V) | |||
Display ratio | 16:9 | |||
Backlight type | E-LDE | |||
Screen brightness | Single side 700nits/1000-3000NITS (option) Double side normally window side 2500 nits, indoor side 700 nits(potion) | |||
refresh rate | 60Hz | |||
Surface treatment | Matte finish (Haze 1%) | |||
Supported colors | 16.7M (8-bit) | |||
Fuselage parameters | ||||
Available colors | black | |||
Border material | Aluminum profiles | |||
Body material | Cold-rolled steel sheet for hardware (metal spraying) | |||
Border size | 5mm | |||
Body size | 953.5*544.5*59.5mm (excluding wall mount) | |||
Packaging size | 1080*150*677mm | |||
Wall mount bracket | Horizontal/Vertical Universal Version | |||
Hanging hole spacing | 400*400 | |||
Packaging material | Neutral thickened cardboard box | |||
net weight | 11.2KG | |||
Gross weight | 13.9KG | |||

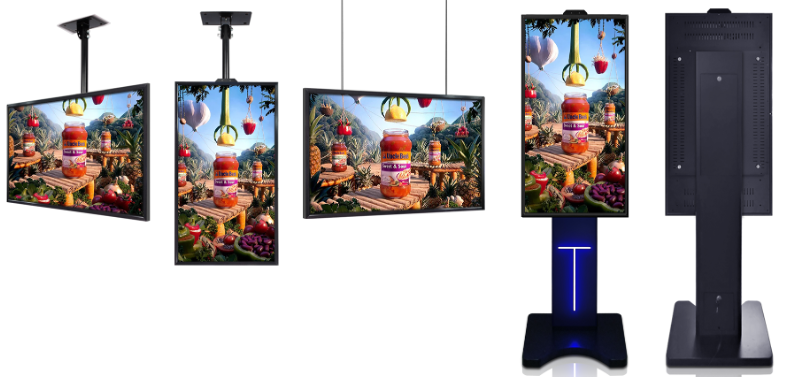

Installation method | Wall-mounted/Embedded/Hanging/Floor-mounted | |||
Display System (optional) | ||||
Motherboard | Display Solution | |||
Support video | MPEG1/MPEG2/MPEG4/AVI/VOB/MOV/WMV/DIVX/RM/RMVB, support super HD 2160P video | |||
Support picture | JPG/JPEG/ PNG/BMP | |||
Timer | Set time on/off auto | |||
Image rotate | support 90°,180°,270° image rotate | |||
Android System (optional) | ||||
Motherboard | RK3566/RK3576/RK3588 | |||
Operating system | 11.0/14.0/13.0 | |||
Main frequency | 1.8G HZ/2.2HZ/2.4HZ | |||
Memory | 2G/4G/8G (Optional) | |||
Storage | 32G/64G/128G(Optional) | |||
Input/output | RJ45,HDMI out,USB*2,audio,TFcard, and option for HDMI IN | |||
Windows System (optional) | ||||
Cpu | I5 10th Gen/I5/I7 (optional) | |||
Operating system | Win10/ Win11 | |||
Memory | 4G/8G/16G (Optional) | |||
Storage | 128/256G /512G/1T SSD (Optional) | |||
Input/output | RJ45,HDMI out,USB2.0,USB3.0,audio | |||
System Functions | ||||
Language selection | Supports English, Chinese, and multiple languages. | |||
Video Decoding | Highest support2160PVideo and image decoding and playback | |||
Power-on method | Automatic start upon power-on, remote control on/off | |||
Signal recognition | Automatically identify signal input source | |||
hibernation function | Automatically enters sleep mode when no signal input. | |||
Idle animation | Customizable standby screen | |||
Boot screen | Customizable boot timeLOGO | |||
Remote control function | Supports remote control operation | |||
USBFunction | upgrade/Multimedia playback | |||
Audio function | Built-in two high-quality tweeters | |||
screen rotation | Follow the display orientation of the input host. | |||
Video support | 480P, 480p, 576P, 576p, 720p, 1080P, 1080p, 4Kx2K@60Hz | |||
Electrical performance | ||||
Rated voltage | AC110-220V | |||
standby power | ≤1W | |||
Rated power | ≦167W | |||
Operating temperature | Temperature -20℃~70℃/humidity10%RH~90%RH | |||
Storage environment | Temperature -20℃~70℃/humidity10%RH~90%RH | |||
Dimensions(Show separately) | ||||
|
