Low Voltage Armoured Power Cable Underground Electrical XLPE PVC Cable 3/4/5 Core

Low Voltage Armoured Power Cable Underground Electrical XLPE PVC Cable 3/4/5 Core

Low Voltage Armoured Power Cable Underground Electrical XLPE PVC Cable 3/4/5 Core
Low Voltage Armoured Power Cable Underground Electrical XLPE PVC Cable 3/4/5 Core
Categories Armoured Cable
Brand Name: Minfeng
Model Number: armored cable
Certification: ISO,CE,IEC,TUV,KEMA
Place of Origin: Hebei, China
MOQ: 100
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Delivery Time: 10 Days
Productname: Armoured Cable
Standard: AISI, ASTM, BS, DIN, GB, JIS
Cabletype: Armoured
Sheathmaterial: PVC or PE
Cablesize: Varies from 1.5mm² to 1000mm²
Conductormaterial: Copper or Aluminum
Flameretardant: Yes/No
Insulationmaterial: PVC, XLPE, or Rubber
Contact Now
  • Product Details
  • Company Profile

Low Voltage Armoured Power Cable Underground Electrical XLPE PVC Cable 3/4/5 Core

Low Voltage Electrical Armoured Cable Underground Power Cable XLPE PVC Cable 3/4/5 Core
Product Overview
Power cables designed for underground installation with XLPE insulation and PVC sheathing, available in 3, 4, and 5 core configurations for reliable power transmission and distribution.
Technical Specifications
SpecificationDetails
Product NameCopper core or aluminum core XLPE insulated PVC sheathed power cable
Rated Voltage0.6/1kV, 1.8/3kV, 3.6/6kV, 6/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
StandardGB/T12706-2008, GB/T12703-200, IEC60502-1-1997
ModelYJV, YJLV, YJV22, YJLV22, YJV32, YJLV32, YJV42, YJLV42
Armoured TypeSteel tape armored, steel wire armored
Number of CoresSingle core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores
Common Sizes1mm² to 1000mm² including 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630, 800, 1000mm²
TypesOrdinary type, flame-retardant type, fire-resistant type, low-smoke halogen-free type
ApplicationPower distribution engineering, power transmission engineering, industrial power supply, hydropower installation, control systems
XLPE Insulated Power Cable Features
Power cables are essential components for transmitting and distributing electrical energy. YJV cables serve as backbone cables in power transmission systems, commonly installed in urban underground passages, buried underground, or within industrial facilities.
Primary Applications: Urban underground power grids, power station outgoing lines, industrial and mining enterprise internal power supply, and underwater transmission lines across rivers.
Installation Precautions
  • The minimum bending radius during cable laying should not be less than 10 times the outer diameter of the cable
  • YJV/YJLV cables are suitable for indoor installation, in channels and pipes, and can be buried in loose soil where they cannot bear external forces
  • YJV22/YJLV22 cables are designed for underground laying and can withstand external mechanical forces, but not large tensile forces
  • Use specialized tools for cable laying, including pay-off racks and guide rollers, to prevent mechanical damage and keep away from heat sources
  • When laying cables through pipes, the inner diameter should not be less than 1.5 times the outer diameter of the cable
  • Avoid squeezing cables when passing through pipes, and ensure the total cable area does not exceed 40% of the pipe's total area
Product Images

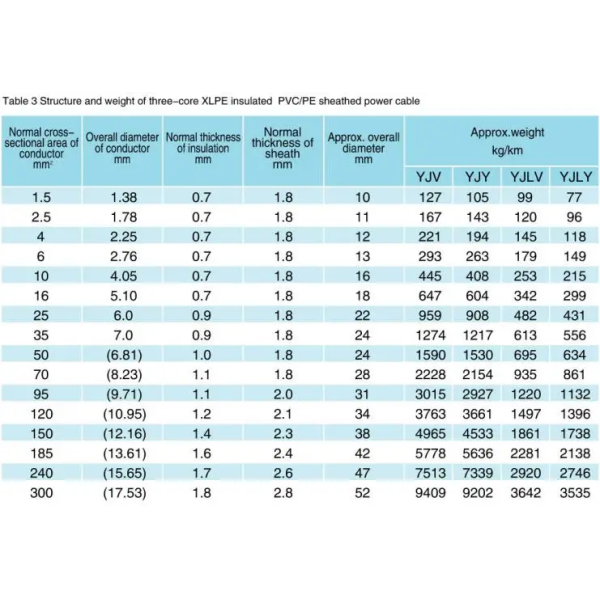

Low Voltage Electrical Armoured Cable product display Underground Power Cable installation diagram
