Name: Keysight N9030B PXA RF Signal Analyzer 2Hz to 50GHz multitouch
Brand: Keysight
Price: 1 USD

Home > Testing Equipment >

Keysight N9030B PXA RF Signal Analyzer 2Hz to 50GHz multi-touch

Categories	RF Spectrum Analyzer
Brand Name:	Keysight
Model Number:	N9048B
Certification:	ISO17025
Place of Origin:	USA
MOQ:	1 set
Price:	negotiable
Payment Terms:	T/T,Western Union
Delivery Time:	1-3 working days
Model:	N9030B
Frequency Range:	2Hz – 50 GHz (configurable to 8.4/13.6/26.5/44/50 GHz)
Max Analysis Bandwidth:	1 GHz
Max Real-Time Bandwidth:	510 MHz
Capture Memory:	2 GB(up to 4 GB optional)
Operating System:	WD 10

Contact Now

Add to Cart

Product Details
Company Profile

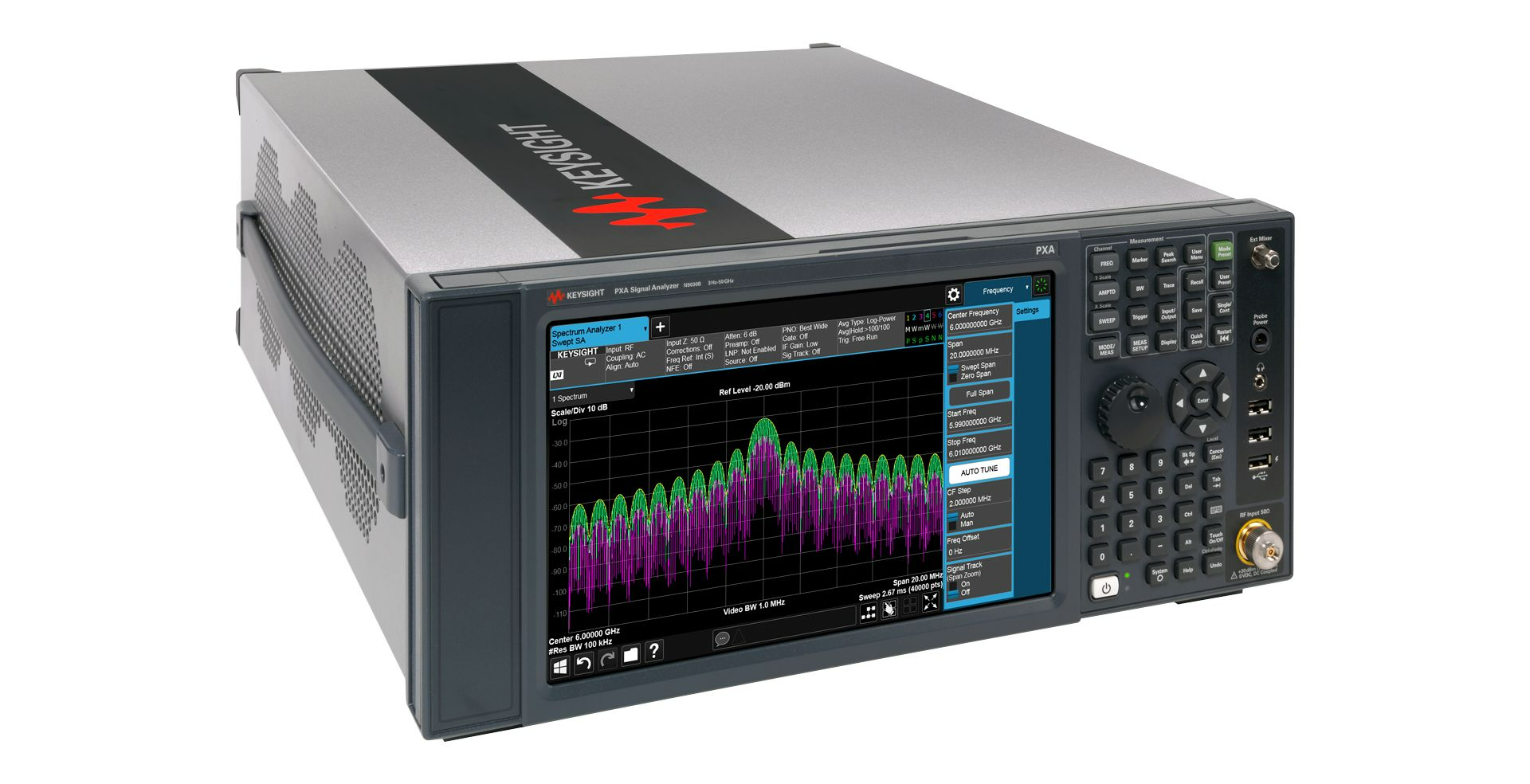

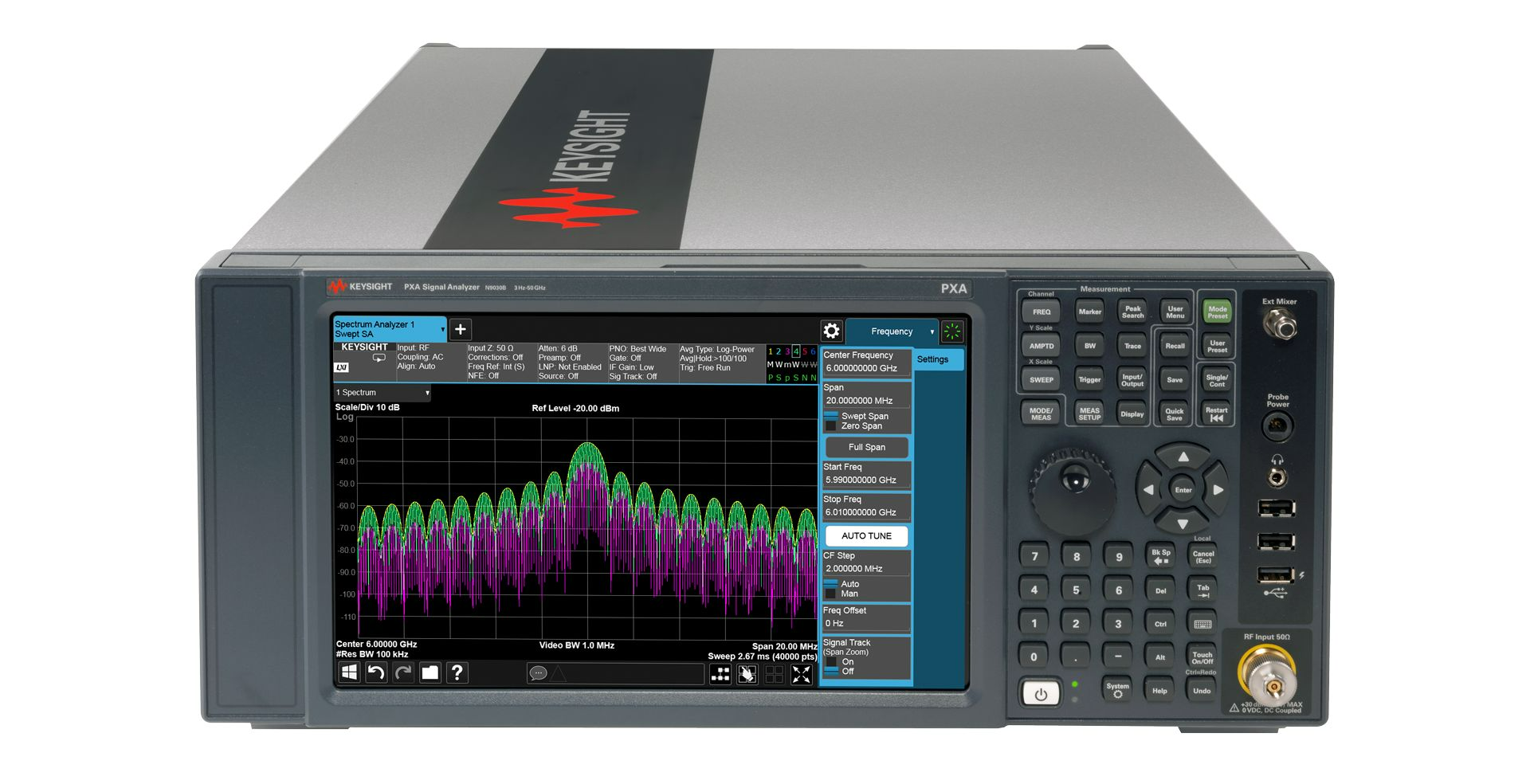

Keysight N9030B PXA RF Signal Analyzer 2Hz to 50GHz multi-touch

Product Overview

The Keysight N9030B PXA RF Signal Analyzer is a high-performance benchtop spectrum analyzer covering 2 Hz to 50 GHz (configurable frequency options available).

With multi-touch operation, Windows 10 OS, up to 1 GHz analysis bandwidth and 510 MHz real-time bandwidth, it is ideal for 5G NR, aerospace,

radar, and general RF testing applications. Optional upgrades include expanded memory, advanced demodulation, and dedicated test apps for flexible, scalable testing.

Frequency and Time Specifications

Description	Specifications
Maximum Frequency
Option 503	3.6 GHz
Option 508	8.4 GHz
Option 513	13.6 GHz
Option 526	26.5 GHz
Option 544	44 GHz
Option 550	50 GHz
Preamp Option P03	3.6 GHz
Preamp Option P08	8.4 GHz
Preamp Option P13	13.6 GHz
Preamp Option P26	26.5 GHz
Preamp Option P44	44 GHz
Preamp Option P50	50 GHz
Minimum Frequency
Preamp	AC Coupleda DC Coupled
Off	10 MHz 2 Hz
On	10 MHz 9 kHz

Description	Specifications		Supplemental Information
Band	Harmonic Mixing Mode	LO Multiple (Nb)	Band Overlapsc
0 (2 Hz to 3.6 GHz)d	1−	1	Options 503, 508, 513, 526, 544, 550
1 (3.5 to 8.4 GHz)	1−	1	Options 508, 513, 526, 544, 550
2 (8.3 to 13.6 GHz	1−	2	Options 513, 526, 544, 550
3 (13.5 to 17.1 GHz)	2−	2	Options 526, 544, 550
4 (17.0 to 26.5 GHz)	2−	4	Options 526, 544, 550
5 (26.4 to 34.5 GHz	2−	4	Options 544, 550
6 (34.4 to 50 GHz	4−	8	Options 544, 550

Frequently Asked Questions

What delivery methods do you use, and what is the delivery time?

We ship via EMS, DHL, FedEx, UPS, and TNT with tracking numbers. Delivery typically takes 4-7 business days.

How are duties and taxes handled?

Duties and taxes vary by country and are usually the buyer's responsibility. Please check local import regulations for details.

What are your payment terms?

We require 100% T/T payment before shipment.

How can I ensure the quality of products purchased internationally?

We work with reputable suppliers and conduct thorough inspections before shipping. Warranties are available for most products—please check for specific terms.

What should I do if my shipment is delayed?

Check the tracking information provided. If there are delays, contact us or the carrier directly for updates.

Do you offer discounts for bulk orders?

Yes, discounts may be available for bulk purchases. Please contact us to discuss your specific requirements.
