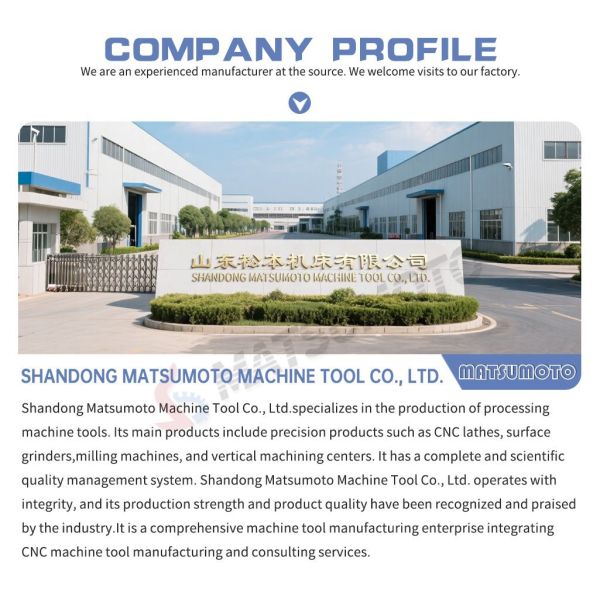

Company Profile

TCK56Y High Precision Heavy Duty Slant Bed CNC Lathe Machine with 3500rpm Spindle Speed Turning Center

TCK56Y Horizontal Slant Bed CNC Lathe Machine High Precision Metal Turning Center Heavy Duty

Description:

TCK56Y is a high-precision, a slant-bed CNC turning center with integrated turning, milling, drilling, boring, and tapping capabilities. It is designed for one-clamp, complete machining of complex, high-precision rotational parts.

Specification	Unit	TCK56Y
Max.swing over bed	mm	650mm
Max.processing length	mm	540mm
Max cutting diameter	mm	600mm
X-axis travel	mm	280
Z-axis travel	mm	750
X-axis movement speed	mm/min	24000
Z-axis movement speed	mm/min	24000
X/ Z axis Feed rate	mm/min	0-5000
X/Z axis manual feed speed	mm/min	0-1260
X-axis repeatability	mm	0.005
X-axis positioning accuracy	mm	0.015
Z-axis repeatability	mm	0.005
Z-axis positioning accuracy	mm	0.01
Spindle speed	rpm	10-3500
Maximum spindle torque	N.m	72
Spindle nose end	-	A2-6
Spindle through-bore bore diameter	mm	Φ66
Max. bar capacity	mm	52
Spindle shift model	-	stepless
Chuck	-	10"hollow hydraulic
Tool post type	-	12 station hydraulic turret
Tool post size	mm	25*25
Spindle motor power	kw	11
Tailstock travel	mm	480
Tailstock taper	-	MT5
Guide way type	-	Linear guide
Guide form	-	30°degree
Weight	kg	4200
Machine dimension(LWH)	mm	340020602100mm

Product Usage

The machine is suitable to process all kinds of small and
middle-sized shaf and plate work piece, and could also furn various
threads, circle arccircular cone, inside and outside surface of
revolved body. This machine is widely used in sanitary, valve,
electrical appliance,instrument, automo.bile, motorcycle, bearings
and so on.

Product features

Higher accuracy Taiwan linear guideways
Higher speed spindle unit
Higher rigidity castings
Integrated automatic lubrication
One-piece Casting bed and slant bed
