| Categories | Stainless Steel Wire Rope Mesh |
|---|---|
| Brand Name: | QIJIE |
| Model Number: | Steel Wire Rope Mesh |
| Certification: | CE,SGS,ISO |
| Place of Origin: | Hebei, China |
| MOQ: | 10 square meters |
| Payment Terms: | 30%TT in advance, Balance before loading |
| Supply Ability: | 3000 m2/month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | wooden case |
| Material: | STAINLESS STEEL WIRE |
| Type: | Rope Mesh, Ferrule Type or Knotted Type |
| Application: | Protecting Mesh |
| Weave Style: | Plain Weave |
| Technique: | woven |
| Processing Service: | Weave |
| Raw Material: | Stainless Steel 304 316, Galvanized Wire |
| Accessories: | All could be provided |
| Email: | devin@industrialmetalmesh.com |
| whatsapp: | +8615369013183 |
High Quality 316 Stainless Steel Wire Rope Net Cable Mesh X Tend Cable Mesh
Knotted type cable mesh is a type of inter-woven mesh fabricated
from high tensile stainless steel cables in construction of 7 × 7
or 7 × 19. Compared with similar products, our range of knotted
cable meshes have incomparable advantages in terms of
practicability, security, durability, aesthetic property and life
span as shown below:
1.Excellent security
2.Superb durability
3.Aesthetic property
4.Wide lifespan over 30 years
5.High versatility
Material: stainless steel 304, 304L, 316, 316L.
Ferrule material: tinned copper, nickel plated copper, stainless
steel.
Surface treatment: primary color or black oxide finish.
Cable diameter: 1.0-5.0 mm.

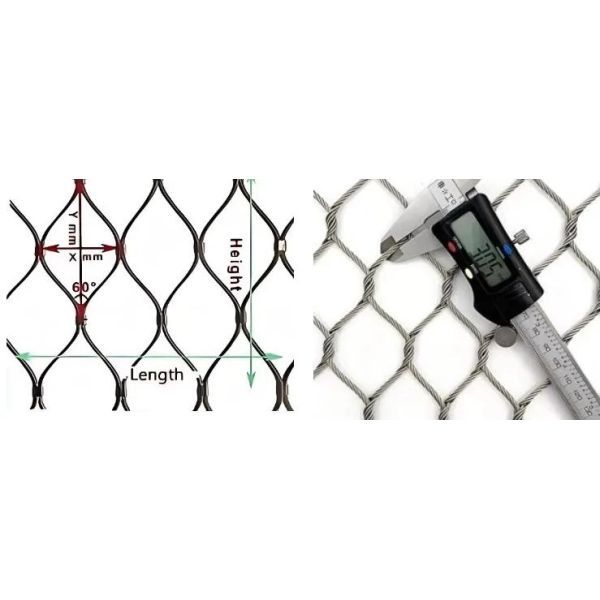

Mesh opening sizes: 25-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60°
as standard opening.
Ordering: specific to order, according to the project.
Construction of wire cable: 7 × 7, 7 × 19.
Connection: ferrule or knotted.
Material | Twisting high-strength steel wire, common materials include
stainless steel wire, galvanized steel wire, etc. |
Features | High strength and impact resistance, Flexibility, Corrosion resistance, Transparency |
Application | Slope protection, Active protection, Passive protection, Building
protection, Zoos and breeding farms, Sports facilities |
Size | Customizable |
Specification | ||
Structure | Diameter(mm) | Aperture(mm) |
7*7 | 1.0 | 10*10 |
7*7 | 1.2 | 15*15 |
7*7 | 1.2 | 20*20 |
7*7 | 1.5 | 25*25 |
7*7/7*19 | 2.0 | 30*30, 50*50 |
7*7/7*19 | 2.5 | 50*50, 80*80 |
7*7/7*19 | 3.0 | 50*50, 80*80,100*100 |
7*7/7*19 | 3.5 | 80*80,100*100, 150*150 |
7*7/7*19 | 4.0 | 100*100, 150*150, 200*200 |
Length: 1-100m Width:1-10m | ||

Applications:
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants
Advantages
· Durable and Corrosion-Resistant: This stainless steel rope mesh
is made from 7x19 stainless steel wire, ensuring a durable and
long-lasting product that resists corrosion and withstands harsh
environments.
· Customizable Size and Length: The product is available in various
sizes and lengths, allowing customers to choose the perfect fit for
their specific needs, from 30m to a fully customizable option.
· Versatile Applications: This stainless steel rope mesh is
suitable for various applications, including building and
construction, making it an ideal choice for customers who require a
versatile product.
· Easy to Install: The rope mesh features a plain weave style and a
square hole shape, making it easy to install and assemble, saving
customers time and effort.
· Fast Delivery and Competitive Pricing: With a delivery time of
8-14 days and a minimum order quantity of 1 roll, customers can
receive their product quickly and at a competitive price, making it
an excellent value for money.


|
