| Categories | Thin Film Transistor |
|---|---|
| Brand Name: | ORIENTRONIC |
| Place of Origin: | China |
| MOQ: | First purchase, no purchase quantity limit. |
| Price: | Prices are set based on design and quantity. |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, Paypal |
| Supply Ability: | 200K Sets / Month |
| Delivery Time: | 4~6 Working Days |
| Packaging Details: | Prices are set based on design and quantity. |

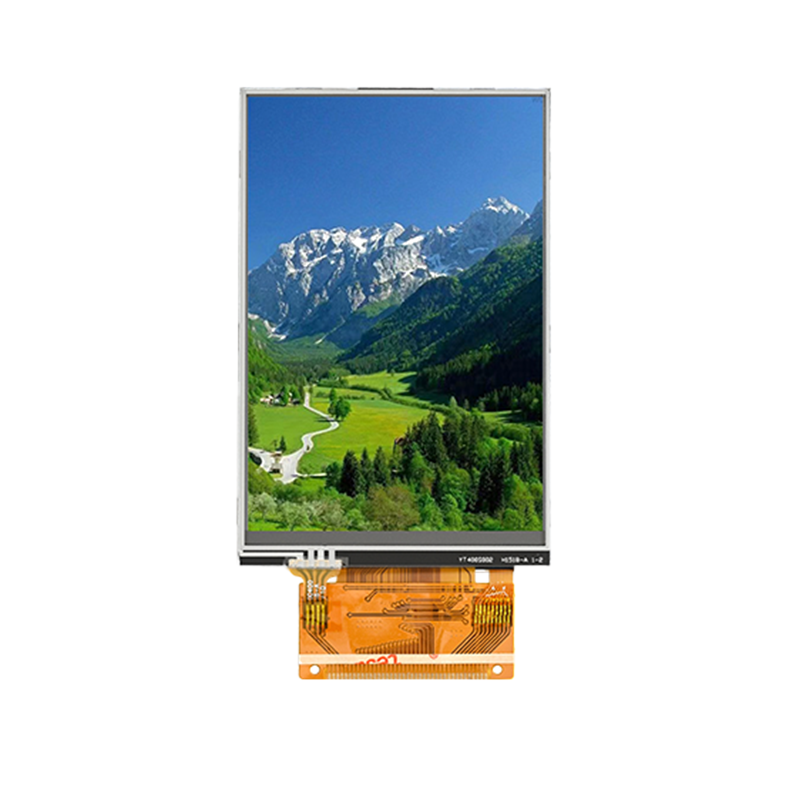

| Size: | 4.0 inches, color TFT LCD |
| Resolution: | 320 X 480 |
| Interface type: | 16-bit parallel port |
| Touch chip: | XPT2046 |
| Control chip: | ILI9488 |
| Product highlights: | The display direction can be adjusted |
| Display area: | 55.68 X 83.52 (mm) |
| Module size: | 62 X 106.57 X 4.9 (T) (mm) |
| Pixel size: | 0.174 X 0.174 (mm) |
| Backlight: | LED X 8 |
| Working voltage: | 2.9~3.3V |
| Current: | 120ma |
| Power consumption: | 0.43W |
| Pin count: | 34 pins (2.54mm spacing double row pins) |
| Viewing angle direction: | 12 o'clock direction |
| Working temperature: | -20~70℃ |
| Pin number | pin name | function description |
| 1 | CS | Chip select pin of the display driver chip, low level effective |
| 2 | RS | Selection data/selection register |
| 3 | WR | Write control pin |
| 4 | RD | Read control pin |
| 5 | RES | Reset pin of the display driver chip, low level resets |
| 6~21 | D0-D15 | 16-bit data line |
| 22,26,27 | GND | Power ground pin |
| 23 | BLK | Backlight control pin, default can be left unconnected, low level turns off backlight |
| 24,25 | VCC | Power supply 3.3V |
| 28 | B1_VDD | Backlight adjustment voltage, default is consistent with the display voltage of the screen |
| 29 | MIS | Touch chip output signal |
| 30 | MOS | Touch chip input signal |
| 31 | PEN | Touch chip interrupt |
| 32 | NC | Floating |
| 33 | TCS | Touch chip chip select, low level effective |
| 34 | TCLK | Touch chip clock pin when touching the chip |
|
