Name: 2H130142 AIRSUSTECH Flange Air Spring Cross Torpress 23B 202665 100 Inspected
Brand: AIRSUSTECH
Price: 1 USD

Home > Other General Industrial Equipment >

2H130142 AIRSUSTECH Flange Air Spring Cross Torpress 23B 202665 100% Inspected

Categories	Torpress Air Spring
Brand Name:	AIRSUSTECH
Model Number:	2H130142
Certification:	ISO/TS16949:2009
Place of Origin:	Guangzhou, China
MOQ:	1 Piece
Price:	Negotiable
Payment Terms:	T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability:	1000 PCS/Week
Delivery Time:	3-8 Working Days
Packaging Details:	Strong Carton Box or as Customers Requirement
Full Stroke:	100 MM
Bellows Type:	Double Convolutions
Torpress:	23B 202665
Material:	Aluminum and Rubber
Temperature:	-40℃+70℃
Burst Pressure:	> 1.6 Mpa
Pressure Ability:	0 Bar ... 8 Bar
Compatibility:	Easy to Replace

Contact Now

Add to Cart

Product Details
Company Profile

2H130142 AIRSUSTECH Flange Air Spring Cross Torpress 23B 202665 100% Inspected

Product Specifications

Stroke	100 MM
Minimum Height	72 MM
Maximum Height	172 MM
Static Height	142 MM
Center to Center Distance	112 MM
Flangr Ring Diameter	140 MM
Mounting Hole	6XM10
Max. External Diameter	150 MM
HS Code	870880
Warranty	12 Months

AIRSUSTECH 2H130142 cross Torpress 23B 202665

Product Technical Parameter Table

Load (kg)	Installation Height	Inflation Pressure	0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.7 MPa	0.8 MPa	Volume at 0.7MPa (dm3)
	72	(mm)	211	319	428	536	647	756	861	0.44
	92	(mm)	176	266	357	448	540	631	722	0.66
	112	(mm)	140	211	285	360	434	506	580	0.82
	132	(mm)	104	158	217	274	332	387	444	0.95
	142	(mm)	80	126	173	219	266	314	361	1.00
	162	(mm)	14	35	55	75	96	117	140	1.14
	172	(mm)					12	20	25	1.17
Stiffness and Frequency at Design Height	Vertical Stiffness	(Kg/cm)	38	53	70	88	106	122	138
	Inherent Frequency	Hz	3.46	3.26	3.20	3.17	3.16	3.12	3.10
	Inherent Frequency	cpm	208	196	192	190	190	187	186

Why Use Airsustech Air Spring Vibration Dampers Instead of Coil Springs or Other Types of Dampers?

1. Superior Vibration Damping Capacity
AIRSUSTECH air spring vibration dampers offer the highest vibration isolation capacity among all types of vibration dampers. The system's natural frequency can be as low as 1 Hz. With the addition of an additional air chamber, the system's natural frequency can be even lower. Traditional coil spring vibration dampers require a static deformation of 230 mm to achieve the same vibration isolation effect.
2. Stable Damping Effect
The unique feature of AIRSUSTECH air spring vibration dampers is that the system's natural frequency does not change significantly with load variations. This characteristic, combined with precise height control, makes them particularly suitable for installation at various mounting points on equipment with unbalanced loads.
3. Precise Height Control
AIRSUSTECH air spring vibration dampers allow for precise height control by adjusting the internal air pressure. This feature eliminates fatigue and one-off setup problems common in other types of dampers.
4. Wide Size Range
AIRSUSTECH air spring dampers can isolate vibration loads from 0.44 kN to over 577 kN at each mounting point.
5. Compact Installation Height
AIRSUSTECH air spring dampers can withstand the same loads at installation heights as low as 31 mm. In contrast, coil springs require a free height of 125 mm to 635 mm to achieve the same vibration isolation effect.
6. Extended Equipment Lifespan
AIRSUSTECH air spring dampers significantly extend the lifespan of equipment due to their superior vibration isolation capabilities.
7. Effective Noise Reduction
Air spring dampers reduce noise transmitted through structures. AIRSUSTECH air spring dampers themselves do not generate noise because they do not have the flutter problem of traditional coil springs.
8. Versatile Applications
AIRSUSTECH air spring dampers can be used not only to protect vibrating mechanical structural parts but also widely for isolating vibrations transmitted through structures to precision machinery.

Torpress OEM Number Quick Chart

MODEL	STAN-DARD Code	HIGH- TEMP Code	Connection	Max OD MM	Min. Height MM	Max. Height MM	Total Travel MM	Thread Air tion Hole	Connecting bolts or holes N.	Connecting bolts or holes Ø
16	93029	93086	P1	153	46	91	45	1/4'' NPT	2	3/8''-16 UNC
131	94047	No	P1	165	50	110	60	1/4'' NPT	2	3/8''-16 UNC
110	93113	93114	P1	210	51	151	100	1/4'' NPT	2	3/8''-16 UNC
110	88540	93079	F1	210	45	145		No	6	M 8 x 1.25
110	88820	89023	F1	210	45	145		No	6	M 8 x 1.25
116	93027	No	P1	231	46	152	106	1/4'' NPT	2	3/8''-16 UNC
19	94016	95015	P2	325	51	151	100	1/4'' NPT	2	3/8''-16 UNC
19	94014	No	F2	325	43	143		No	12	M8x1
23B	202665	No	F1	1 65	65	205	140	No	6	M 8 x 1.25
26	84181	89422	F2	220	85	245	160	No	6	M8x1
20	86600	88538	F2	255	80	265	185	No	8	M8x1
245	93740	90587	F1	270	85	310	225	1/4'' NPT	8	M 8 x 1.25
22	94091	No	P2	325	88	288	200	No	2	3/8''-16 UNC
22	88544	89425	F2	325	80	280		No	12	M8x1
21BR	89457	No	F2	380	80	290	210	No	12	M8x1
21A BR	97300	No	F2	435	85	315	230	No	12	M8x1
21B BR.	92154	No	F2	440	85	385	300	No	12	M8x1
28 BR	92527	No	F2	445	80	310	230	No	18	M8x1
28B	90559	No	F2	485	85	375	290	No	18	M8x1
29	93056	No	P3	570	90	330	240	1'' NPT F	1	Ø 25
29	93166	No	F2	570	80	320		No	24	3/8''-16 UNF
31	95210	No	F2	700	85	700	620	No	18	M8x1
325	203332	No	F2	400	80	500	420	No	18	M8x1
322	92615	No	P4	310	133	408

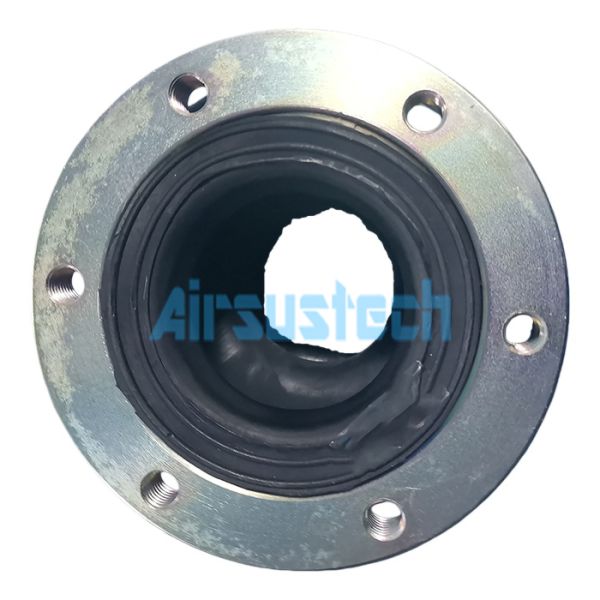

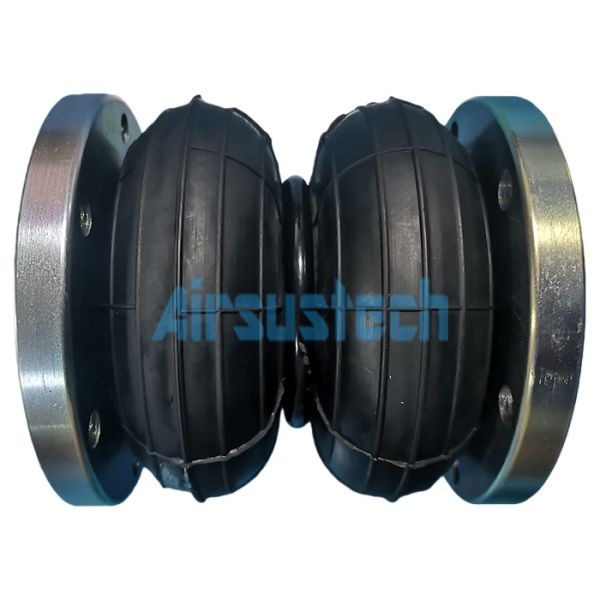

2H130142 Cross Topress 23B Real Photos

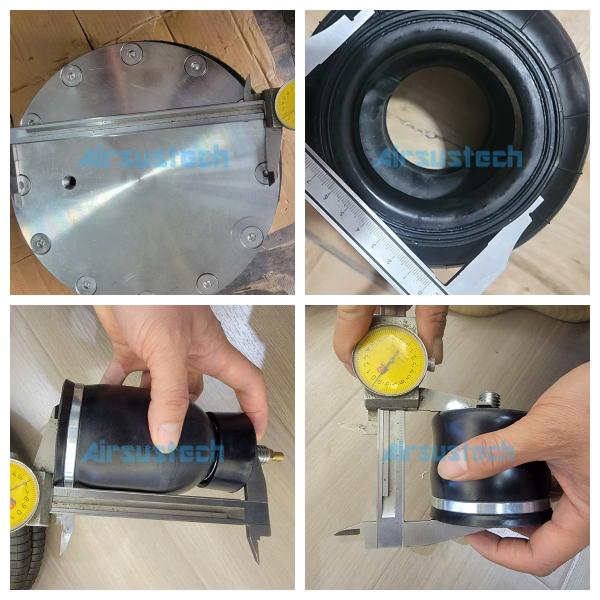

Technicians Measure the Dimensions of AIRSUSTECH Air Springs

Advanced Production Equipment
