YH3116F-12-10P YH Series Circular Connector 10 Pin Plug Connector
With Backshell
The shell of the YH series products is made of high-strength
aluminum alloy material and connected by a bayon-type outer groove.
It features a small volume, light weight, ease of use, resistance
to plugging and unplugging, good sealing performance, corrosion
resistance, good electrical conductivity and excellent pressure
resistance. And it can be interchanged with the YP series, making
it an ideal replacement for the old-fashioned P-type connectors. It
is widely applicable to the circuit connection between electrical
equipment and various instruments and meters.
Product display
Product Performance Details
| Product model | YH3116F-12-10P | Contact piece | Gold plating of copper alloy |
|---|
| Shell material | Aluminum alloy | Insulation resistance | ≥5000MΩ |
|---|
| Vibration | 10Hz~2000Hz 147m/s2 | Working voltage | 600V |
|---|
| Insulator | Thermosetting plastics | Mechanical life | 500 times |
|---|
| Impact | 980m/s2 | Relative humidity | When the temperature is 40±2℃, it is 90% to 95% |
|---|
| Collision | Acceleration 490m/s2 | Withstand voltage | 1500V |
|---|
| Working temperature | -55℃ ~ +125℃ | Working Current | 7.5 A |
|---|

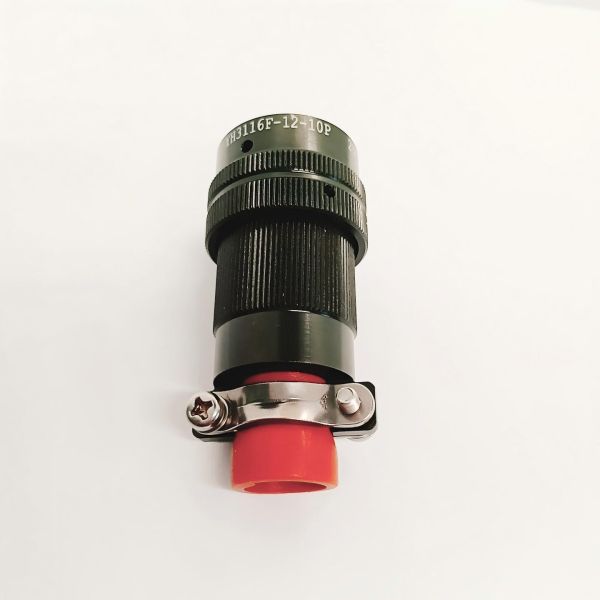

Physical product display

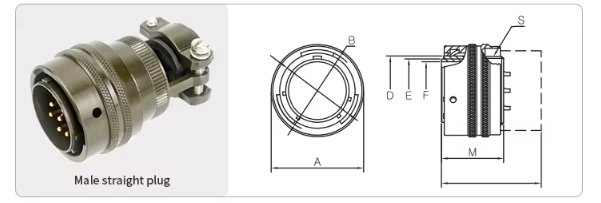

Product external dimensions

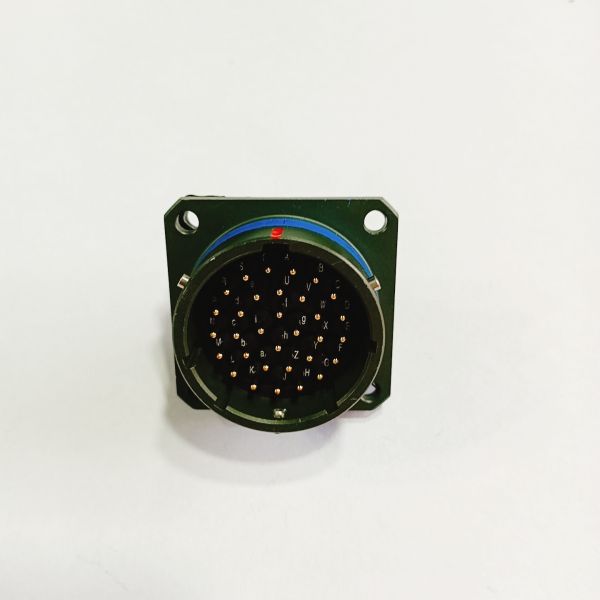

Related product recommendations
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According
to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass
production orders. (based on different quantities,ODM, etc.)
