OEM Automatic Prismatic Lithium Battery Sorting Machine Tester 10CH

10 Channels Automatic Prismatic Lithium Battery Sorter And Tester For Battery Voltage IR Sorting

Product Description

ACEY-PS8S prismatic battery sorting machine is an automated solution designed for the downstream sorting stage of lithium battery production. The system combines an industrial computer, PLC control, high-precision servo drives, and a dedicated battery internal resistance tester to ensure accurate measurement and high-speed operation.

It is widely used in power battery, 3C consumer electronics, and energy storage applications, supporting precise cell matching for various new-energy battery packs while meeting relevant international safety requirements.

Equipment Parameter

• Applicable cell type: prismatic battery cells
• Compatible dimensions: length 100–300 mm; width 20–85 mm; height 100–300 mm
• Sorting levels: 9 sorting bins plus NG bin
• Control system: PLC-based control (PLC brand selectable upon request)
• Feeding and testing: manual loading with integrated testing (optional internal resistance testers from Hioki or HOPETECH; other brands available on request)
• Code scanning: integrated scanning function supporting QR codes, barcodes, and similar formats
• Fully automated sorting process to minimize manual intervention
• MES interface available for real-time recording of cell QR codes, test data, and SPC analysis report generation
• Single-machine throughput up to 1,000 cells per hour, achieving more than three times the efficiency of manual sorting

Equipment Specification

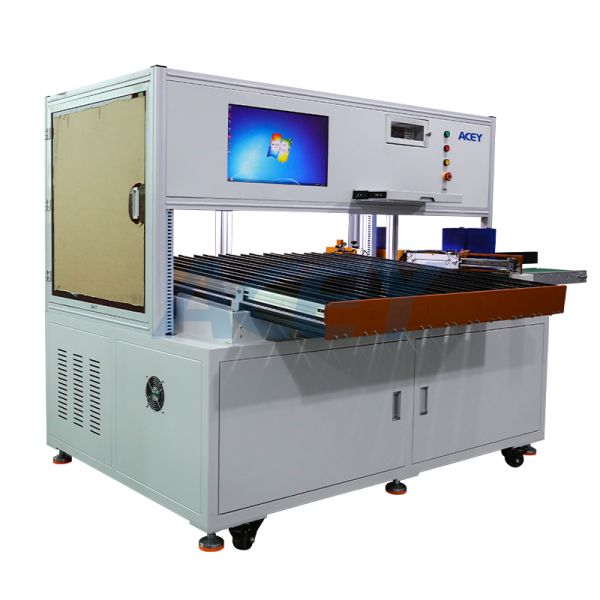

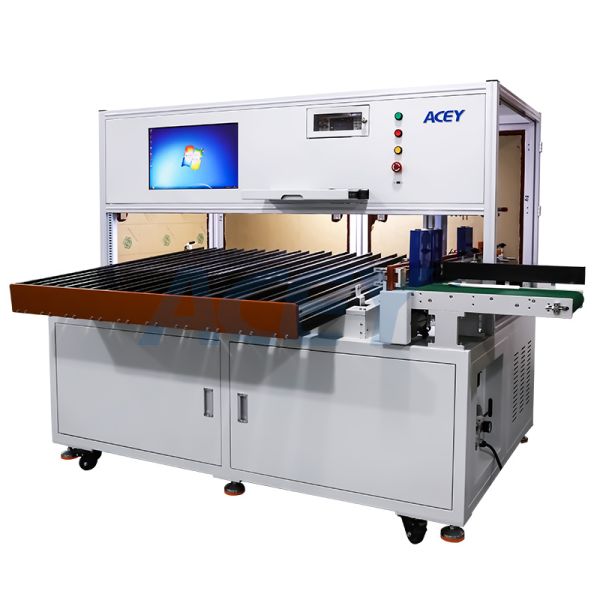

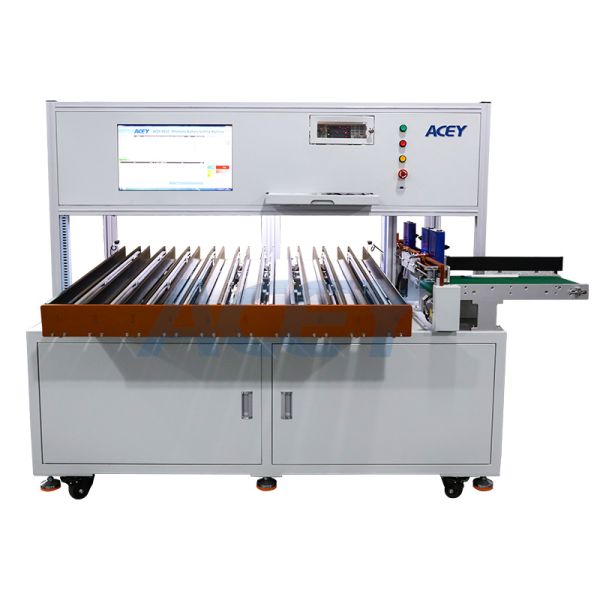

Product Display

Acey New Energy is a high-tech enterprise specializing in the research, development, and manufacturing of advanced equipment for the lithium-ion battery industry. Established in 2009, Acey is supported by a professional R&D team and an experienced after-sales service team, each with more than 15 years of industry expertise.

Our business covers the full spectrum of lithium battery manufacturing, from laboratory research and pilot-scale production to battery pack assembly. We provide laboratory-scale fabrication equipment for coin cells, cylindrical cells, and pouch cells, turnkey laboratory and pilot line solutions, battery cell testing equipment, battery pack testing equipment, battery pack assembly equipment, as well as semi-automatic and fully automatic battery pack assembly line solutions for cylindrical, prismatic, and polymer battery packs.

Over the years, Acey New Energy has cooperated with universities, research institutes, and battery manufacturers worldwide, delivering over 300 customized solutions for laboratory research, pilot production, and battery pack manufacturing. Our equipment has been successfully exported to more than 40 countries and regions, including the United States, Canada, the United Kingdom, Germany, France, Spain, Italy, Turkey, Japan, South Korea, India, Pakistan, Iran, Indonesia, and South Africa.

With highly reliable and precise equipment, combined with a customer-first service philosophy, Acey New Energy has earned a strong reputation in the international market and become a trusted partner for many leading battery manufacturers.

Moving forward, we remain committed to continuous innovation and customized solutions, focusing on the lithium-ion battery industry and striving to become a globally leading battery equipment manufacturer. We sincerely welcome customers from around the world and look forward to building long-term partnerships for a more sustainable energy future.
