Name: HJT PV 700W Solar Panel IP68 Monocrystalline Solar Cell 210mm
Brand: Purple Horn
Price: 1 USD

Home > Crude Oil >

HJT PV 700W Solar Panel IP68 Monocrystalline Solar Cell 210mm

Categories	HJT PV Module
Brand Name:	Purple Horn
Certification:	ISO
Place of Origin:	China
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 Piece/Pieces per Month
Delivery Time:	5-8 working days
Packaging Details:	Solar Panel Carton box by pallet or ply wooden box
type:	HJT Shingled Solar Panel
Product Name:	Mono Solar Panel
power:	700w Pv Module
Solar cell:	182*91mm
Junction Box:	IP68
Material:	monocrystalline Silicon

Contact Now

Add to Cart

Product Details
Company Profile

HJT PV 700W Solar Panel IP68 Monocrystalline Solar Cell 210mm

HJT Solar Panel 700w Mono Solar Panel 700w Pv Module

Cell size:210mmx210mm
Type:HJT, N-TYPE, Purple Horn

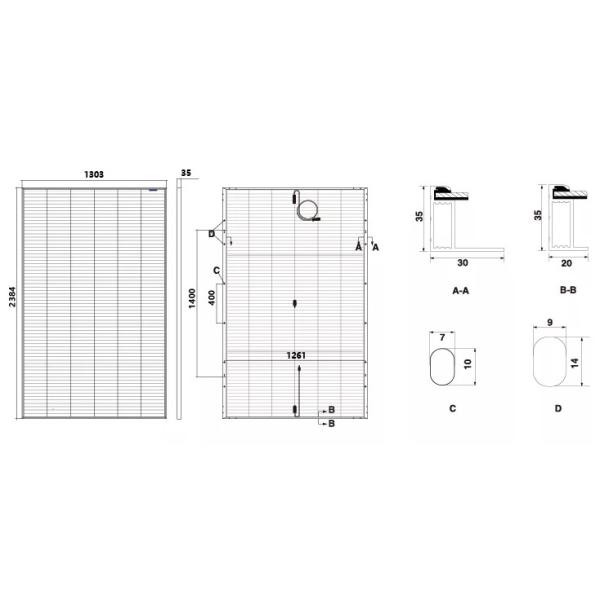

Panel Dimensions:2384*1303*35mm
Panel Efficiency:22.81%
Certificate:CE TUV ETL, TUV CE ETL
Warranty:25 YEARS, 25 Years Output Power Guarantee
Product name:700W solar panel
Frame:Anodized Aluminium Alloy
Solar cell:210mmx210mm
Junction Box:IP67 Rated
Front Cover:3.2mm High transmission, low Iron
OEM Order:Acceptable for solar panel
Application:Solar system
Keyword:solar panel mono

HJT Solar Panel 700w Mono Solar Panel 700w Pv Module

SPECIFICATIONS
SPECIFICATIONS
Module Type	BSM675PMB6-70SDC	BSM680PMB6-70SDC	BSM685PMB6-70SDC	BSM690PMB6-70SDC	BSM695PMB6-70SDC	BSM700PMB6-70SDC
	STC	STC	STC	STC	STC	STC
Maximum Power (Pmax/W)	675	680	685	690	695	700
Operating Voltage (Vmp/V)	39.20	39.30	39.40	39.50	39.60	39.60
Operating Current (Imp/A)	17.23	17.32	17.41	17.49	17.57	17.68
Open-Circuit Voltage (Voc/V)	47.20	47.30	47.40	47.50	47.60	47.70
Short-Circuit Current (Isc/A)	18.32	18.41	18.50	18.59	18.68	18.80
Module Efficiency (%)	21.90	22.10	22.30	22.50	22.60	22.81
STC: Irradiance 1000W/㎡, Cell Temperature 25°C, Air Mass AM1.5

Electrical characteristics with different rear side power gain(refer to700W front)
Pmax gain	Pmax/W	Vmpp/V	Impp/A	Voc/V	Isc/A
5%	735	39.6	18.56	47.7	19.74
10%	770	39.6	19.45	47.7	20.68
15%	805	39.6	20.33	47.7	21.62
20%	840	39.6	21.22	47.8	22.56
25%	875	39.6	22.10	47.8	23.50
