5TPH 10TPH 20TPH 25TPH 30TPH Cement Clinker Grinding Ball Mill Unit Line

5TPH 10TPH 20TPH 25TPH 30TPH Cement Clinker Grinding Ball Mill Unit Line

1.Product Introduction mineral grinding equipment

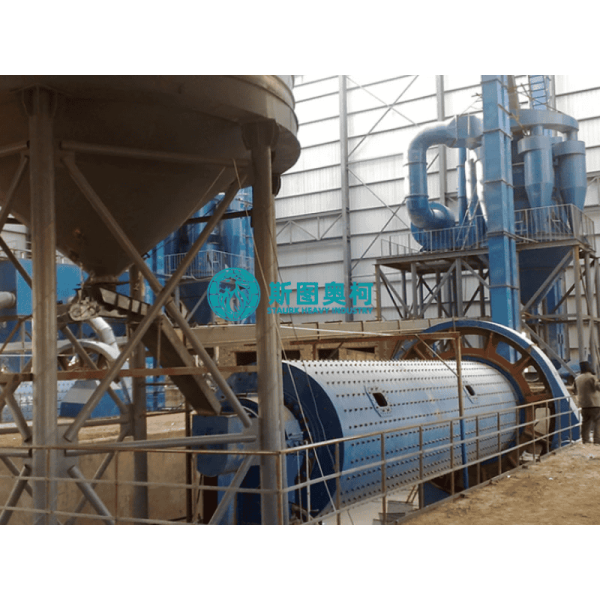

This is a ball mill production line system designed for cement clinker grinding. It is specifically engineered to pulverize fired cement clinker into a fine powder to produce finished cement.

Specifications: Available in various models with processing capacities ranging from 5 to 30 TPH (tons per hour).

Application: Ideal for small-to-medium-sized cement plants or specialized grinding stations.

Operational Note: While this is one of the most energy-intensive stages of cement manufacturing, it remains a critical core process for ensuring product quality.

2.Application mineral grinding equipment

The cement clinker grinding ball mill serves as the core equipment of this production line.

3.Working Principle

Its operation is based on the synergistic effect of impact and attrition (grinding):

Impact: As the cylinder rotates slowly, the steel grinding media (balls) inside are lifted by the liner to a certain height before dropping freely, delivering a powerful impact to the cement clinker.

Attrition: Simultaneously, the steel balls roll and slide within the cylinder, creating a continuous grinding action that gradually refines the material until it meets the required fineness for cement.

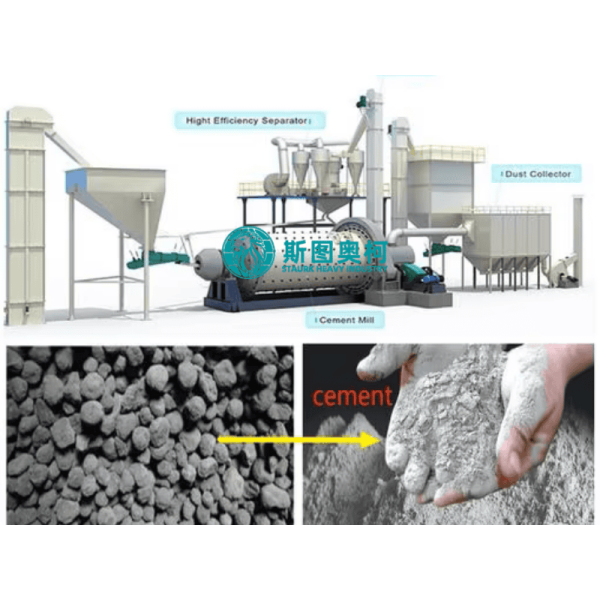

The entire system typically operates in a closed-circuit grinding process. The ball mill works in tandem with a powder classifier (separator): after the material is ground, it is fed into the classifier, where the qualified fine powder is separated as the finished product, while the coarse particles are returned to the ball mill for further grinding. This mechanism effectively prevents over-grinding and significantly improves production efficiency.

4.Advantages

Superior Particle Morphology Control: Precise regulation of steel ball gradation and grinding time enables the production of an ideal particle size distribution (PSD) within the 3–30μm range. This dual-action control effectively meets the requirements for both early-stage and late-stage cement strength.

Adaptability to High-Hardness Materials: It offers a unique advantage when processing difficult-to-grind materials such as sintered clinker (Mohs hardness 6–7) and slag. As a core equipment for the fine-grinding stage, it remains difficult to replace—even by vertical roller mills (VRM).

High-Precision Closed-Circuit System: Operating in conjunction with a separator (classifier), the system achieves closed-loop grinding. Coarse particles are automatically returned for regrinding, preventing over-grinding and ensuring stable product fineness. The R0.08 sieve residue can be strictly controlled within ±1%.

High System Stability: Characterized by mature technology and reliable operation, the system shows high tolerance for fluctuations in raw material composition and moisture content. It is perfectly suited for small-to-medium-sized grinding stations or specialty cement production.

5.Technical Specifications

Model	Cylinder RPM (r/min)	Ball Load (t)	Feeding Size (mm)	Discharging Size (mm)	Capacity (t/h)	Motor Model	Power (kW)	Weight (t)
MQG600*1800	45.5	0.5	≤ 10	0.074-0.5	0.2-0.5	Y160M-6	7.5	2.5
MQG900*1800	38	1.8	≤ 20	0.074-0.6	0.8-2	Y180L-6	15	5.8
MQG900*3000	37.4	2.7	≤ 20	0.074-0.3	0.8-3	Y200L2-6	22	7.5
MQG1200*2400	32	4.8	≤ 25	0.074-0.6	1.5-4	Y225M-6	30	9.8
MQG1200*4500	30	5.2	≤ 25	0.074-0.6	1.5-6	Y280S-6	45	13.2
MQG1300*4000	36	5.8	≤ 25	0.074-0.6	2-6	Y280S-8	45	14.8
MQG1500*3500	28.8	8.3	≤ 25	0.074-0.6	3-6	YR280M-8	90	17.6
MQG1500*4500	28.8	10	≤ 25	0.074-0.4	4-8	JR125-8	95	22.3
MQG1500*5700	28.8	12	≤ 25	0.074-0.4	5-10	JR126-8	110	26.7
MQG1500*6400	28.8	13	≤ 25	0.074-0.4	8-12	JR127-8	130	29.2
MQG1830*3600	24.5	12	≤ 25	0.074-0.4	5-10	JR127-8	130	31.4
MQG1830*5400	24.5	15	≤ 25	0.074-0.4	5-20	JR137-8	210	33.6
MQG1830*6400	24.5	19	≤ 25	0.074-0.4	6-25	JR137-8	210	36.5
MQG1830*7000	24.5	20	≤ 25	0.074-0.4	8-30	JR138-8	245	39.6
MQG2100*3600	24.1	21	≤ 25	0.074-0.6	8-20	YR355L1-8	210	43.2
MQG2100*4500	24.57	26	≤ 25	0.074-0.6	8-35	JR138-8	280	53.6
MQG2200*3600	21.8	22	≤ 25	0.074-0.6	9-25	JR138-8	245	47.8
MQG2200*4500	21.4	27	≤ 25	0.074-0.6	10-30	JR138-8	280	54.7
MQG2200*7500	21.8	35	≤ 25	0.074-0.6	10-40	JR158-8	380	68.4
MQG2200*9000	21.4	36	≤ 25	0.074-0.6	10-45	JR1510-8	475	76.5
MQG2400*3600	21.26	26	≤ 25	0.074-0.6	10-40	JR138-8	280	63.8
MQG2400*7000	21.8	36	≤ 25	0.074-0.6	10-45	JR1510-8	475	82.4
MQG2400*8000	21.8	42	≤ 25	0.074-0.6	13-50	JR630-8	560	85.7
MQG2400*10000	21	65	≤ 25	0.074-0.6	15-60	YR560-8	710	88.6
MQG2600*8000	19.6	52	≤ 25	0.074-0.6	16-70	JR1512-8	630	97.8
MQG2700*3600	21.4	39	≤ 25	0.074-0.4	13-75	JR158-8	380	86.8
MQG2700*4500	21.4	43	≤ 25	0.074-0.4	13-90	JR1510-8	475	91.8
MQG3000*5400	19	58	≤ 25	0.074-0.6	-	TDMK-30	630	119.7
MQG3000*9000	18.3	78	≤ 25	0.074-0.4	20-90	YR1000-8/1180	1000	152.4
MQG3000*11000	18	100	≤ 25	0.074-0.6	30-90	YR6306-8	1120	166.7
MQG3200*3600	18.6	56.5	≤ 25	0.074-0.6	20-80	YR6302-8	630	127.4
MQG3200*4500	18.6	65	≤ 25	0.074-0.6	20-90	YR6302-8	800	138.6
MQG3200*5400	18	72	≤ 25	0.074-0.6	30-100	YR1000-8	1000	146.7
MQG3200*9000	18	85	≤ 25	0.074-0.6	30-100	YR6302-8	1250	168.6
MQG3600*4500	18	86	≤ 25	0.074-0.6	30-100	YR6302-8	1250	158.7
MQG3600*6000	18	117	≤ 25	0.074-0.6	45-180	-	14000	195.6
MQG4000*6000	16.9	145	≤ 25	0.074-0.6	60-230	-	1800	221.7
MQG4500*6000	15.6	180	≤ 25	0.074-0.6	80-300	-	2300	269.6
