12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing

12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing

12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing
Categories Video Wall Controller
Brand Name: Bitvisus
Place of Origin: Guangdong, China
MOQ: 1
Price: €1,337.22-1,347.50
Input interface: 12 X HDMI2.0
Input resolution: 3840X2160P60
Color format: RGB444,YUV444,YUV422,YUV420
Output interface: 12 X HDMI2.0
Output resolution: 4096x2160P60
Control mode: RS232 serial port,Web,key pad
Package size: 540mmX325mmX225mm
Packing weight: 5.7KG
Input pixel frequency: 600MHz
Input depth: 8bit
Output pixel frequency: 600MHz
Power source: 220V
Power dissipation: 72W
Product size: 483mm×200mm×130mm
Product weight: 5KG
Contact Now
  • Product Details
  • Company Profile

12 HDMI Inputs 12 Outputs 4K60 Video Wall Controller with FPGA Real-Time Hardware for Seamless Matrix Splicing

Splicing Seamless Matrix Processor 4K60 12 HDMI in 12 HDMI Out
Professional 12-input 12-output 4K60 seamless matrix splicer designed for control center applications with FPGA real-time hardware processing and no compression technology.
Product Overview
  • 12 HDMI inputs and 12 HDMI outputs with 3 boards configuration (4 HDMI ports per board)

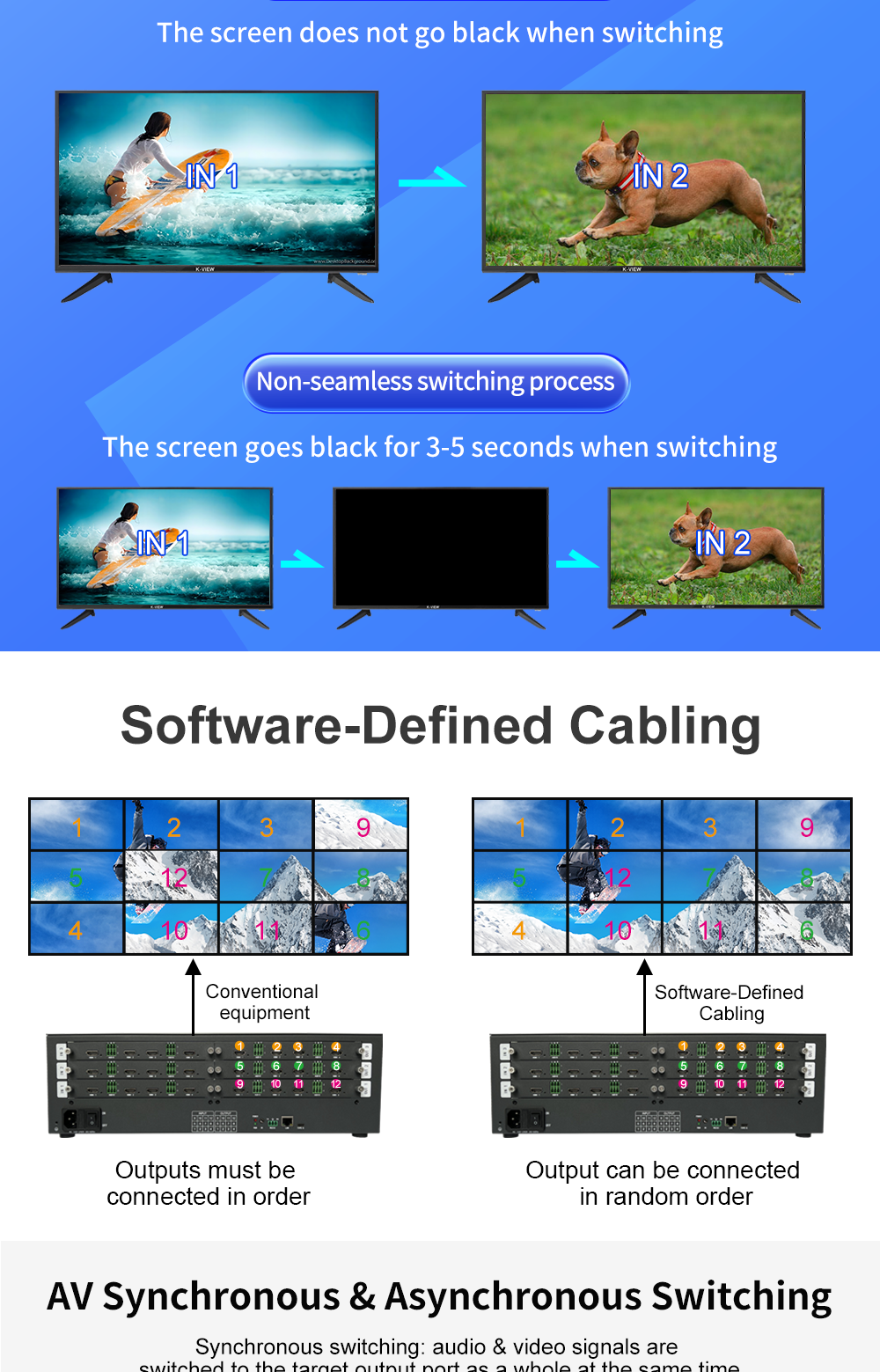

  • Single device supports 12 rectangular splicing modes with seamless switching for horizontal/vertical screen layouts
  • Maximum input resolution: 3840x2160P60 (backward compatible)
  • Maximum output resolution: 4096x2160P60
  • Supports custom resolution and EDID management via web UI
  • No compression processing for crystal clear picture quality
  • Multiple control options: infrared remote, RS232 serial port, web interface, keypad
  • Built-in LCD display for source switching, resolution settings, and network configuration
  • HD video processing chip for optimal performance
Key Features
4K60 Video Wall Controller with seamless switching, extension, splicing, and roaming capabilities. Supports various display configurations including 1x2, 2x2, 1x3, 3x3, 2x3, 2x4, 3x1, 4x1, and 4x2 layouts.
Matrix processor front panel view Matrix processor rear connections Video wall display configuration Control interface overview
Product Specifications

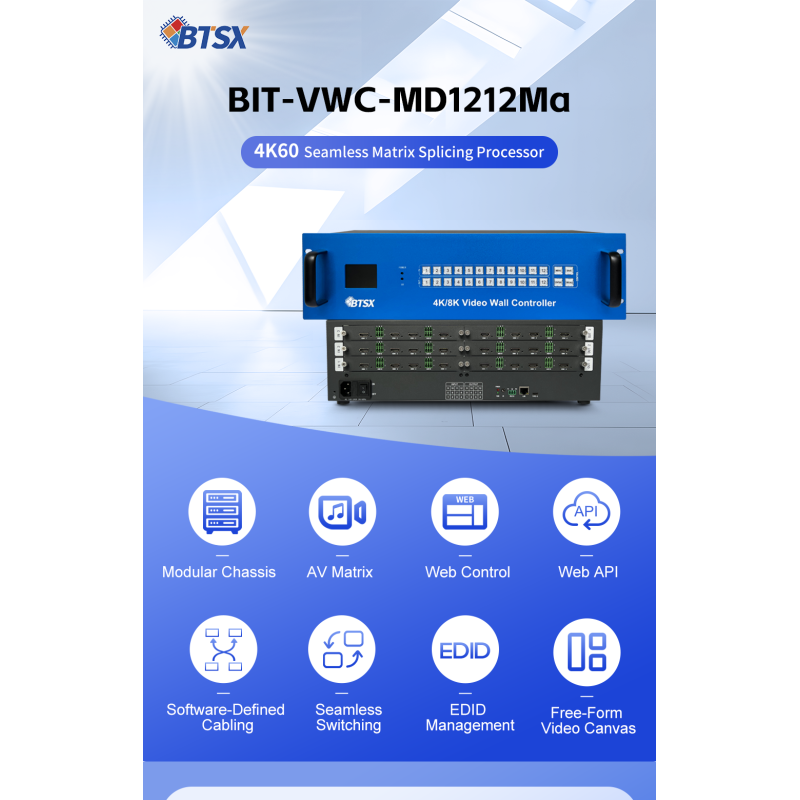

Product NameBIT-VWC-MD1212Ma
Input Interface12x HDMI 2.0
Input Maximum Resolution3840x2160P60
Output Interface12x HDMI 2.0
Output Resolution4096x2160P60
Control MethodsRS232 serial port, Web interface, Keypad
AudioHDMI output audio with separate audio processing
Power Source220V
Power Consumption72W (with 3 input cards and 3 output cards)
Operating Temperature0 to 50°C
Product Dimensions483mm × 200mm × 130mm (L×W×H)
Product Weight5KG
Warranty3 years
Advanced Configuration Features

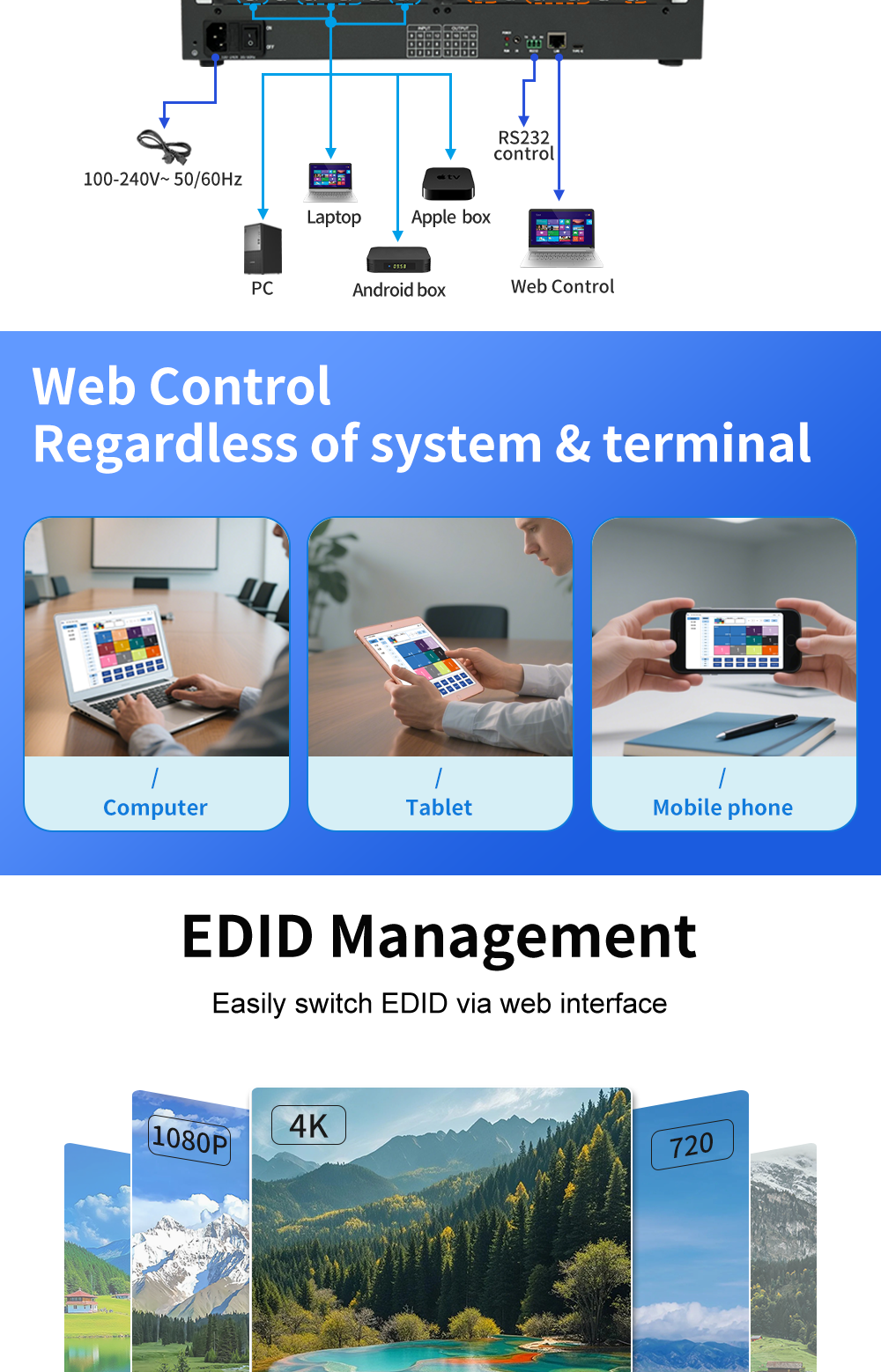

Arbitrary picture overlay, audio separation, comprehensive EDID management with reading, modification, and customization capabilities. Supports input and output rotation for flexible display arrangements.
EDID management interface Picture overlay configuration Audio separation settings Rotation configuration options Advanced control panel Video wall layout examples System integration diagram
Frequently Asked Questions
Why Choose Bitvisus?
  • Own warehouse ensuring 48-hour shipping after payment (excluding weekends and holidays)
  • OEM/ODM services available for custom requirements
  • Extensive product range including Video Wall Controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems
  • Proven R&D experience and product quality assurance
Shipment & Payment
  • Payment Methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
How to Order?
Please contact us below to discuss your project requirements and place your order.
Contact Us for Project Consultation
Welcome to contact us to consult about the products required by your project!
