Small Inverter EVI Type Air Souce Heat Pump With Cooling / Heating

Categories	Air Source Heat Pump
Payment Terms:	L/C,T/T
Controller:	Color Touch Screen
Power Supply:	380V/3Ph/50Hz
Price:	1500-10000USD
Condenser:	Tube in Tube Type
Supply Ability:	500
AC Contactor:	France Sch Brand
Refrigerant:	R410A / R32
Certification:	CE, ISO9001
Application:	Hotel, Apartment, Bath Center, School, Hospital etc
Place of Origin:	China
Compressor:	Scroll Inverter
Model Number:	NFLWX-09RBI, NFLWX-16RBI, NFLWX-18RBI
Function:	Cooling & Heating, Hot Water
MOQ:	1
Delivery Time:	15-25
Evaporator:	Finned Copper Tube
Expansion Valve:	Electric Type
Brand Name:	NOXIN
Name:	Small Inverter EVI Type Air Souce Heat Pump
Packaging Details:	Stretch Film / Wooden Tray / Wooden Tray
Filter:	Dry Filter

Contact Now

Add to Cart

Product Details
Company Profile

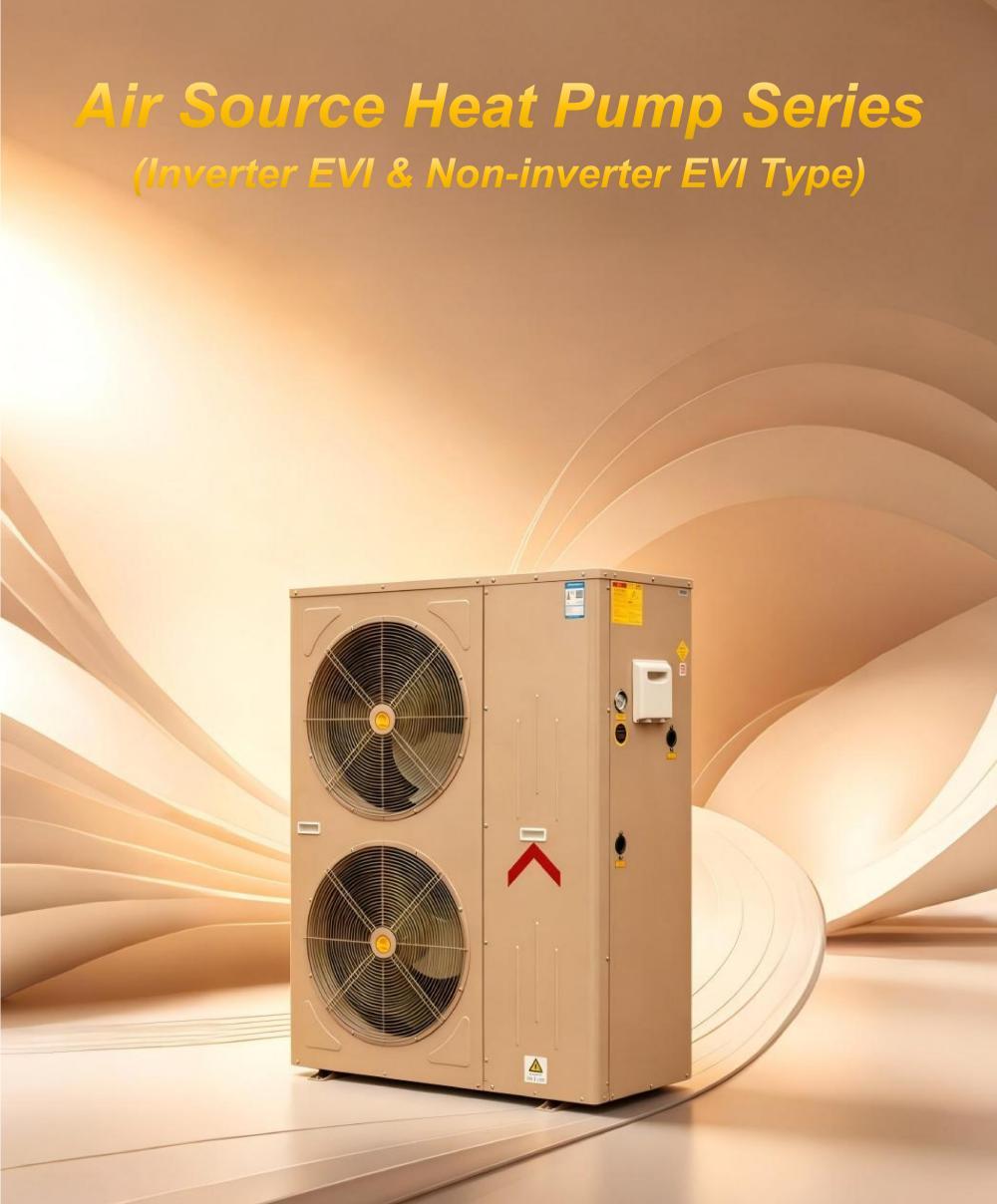

Small Inverter EVI Type Air Souce Heat Pump With Cooling / Heating

Small Inverter EVI Type Air Souce Heat Pump with Cooling & Heating for Home, Apartment, School etc

※ Introduction

The air soure heat pump unit follows the law of conservation and thermodynamics. It is driven by electrical energy according to the principle of inverse Canno cycle, and the low-grade heat energy in nature and other natural circles such as the atmosphere and water is absorbed into high-grade heat energy equipment that can be available.

The heat pump can be compared with the water pump. The water cannot flow from a low place to a high place. To transport the water at the low place to a high place, a pump must be used to consume a part of the electricity in order to send the water to the water tank in the high place Essence Similarly, according to the second law of thermodynamics, heat energy can not be spontaneously transferred from low-temperature environment to high-temperature environments. In order to achieve this goal, there must have a machine to consume some mechanical skills (such as electricity) then the heat energy in the high temperature is moved, so that the machine is called "heat pump".

The role of the air source heat pump is to remove the low grade calories in the air, and the power used by itself into heat energy, and send it to the high-temperature water or the air together. An air source heat pump is mainly composed of four parts: Evaporator, Compressor, Condenser, and Expansion valve. By the cycle process of continuously completing Evaporation (absorbing heat in the atmosphere) → Compression → Condensation (Release heat) → Throttling → Evaporation again, thereby transferring the heat energy in the atmosphere to the water or indoors.

※ Application

● Air Conditioner System & Hot Water Supply
Hotel, Apartment, Bath Center, School, Stadium, Factory, Greenhouse, Hospital etc.

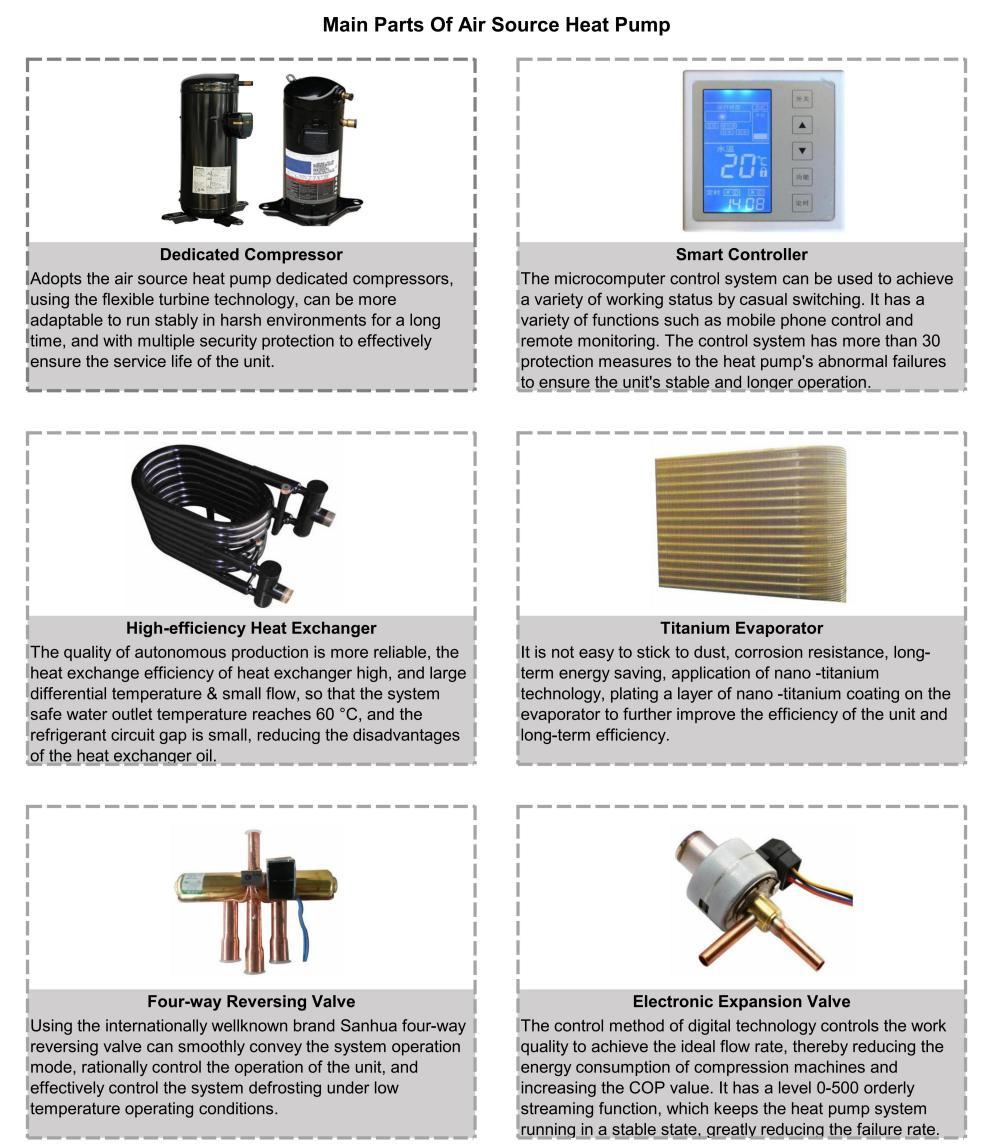

※ Main Parts

Dedicated Compressor

Adopts the air source heat pump dedicated compressors, using the flexible turbine technology, can be more adaptable to run stably in harsh environments for a long time, and with multiple security protection to effectively ensure the service life of the unit.

High-efficiency Heat Exchanger

The quality of autonomous production is more reliable, the heat exchange efficiency of heat exchanger high, and large differential temperature & small flow, so that the system safe water outlet temperature reaches 60 °C, and the refrigerant circuit gap is small, reducing the disadvantages of the heat exchanger oil.

Titanium Evaporator

It is not easy to stick to dust, corrosion resistance, long-term energy saving, application of nano -titanium technology, plating a layer of nano -titanium coating on the evaporator to further improve the efficiency of the unit and long-term efficiency.

Smart Controller

The microcomputer control system can be used to achieve a variety of working status by casual switching. It has a variety of functions such as mobile phone control and remote monitoring. The control system has more than 30 protection measures to the heat pump's abnormal failures to ensure the unit's stable and longer operation.

Electronic Expansion Valve

The control method of digital technology controls the work quality to achieve the ideal flow rate, thereby reducing the energy consumption of compression machines and increasing the COP value. It has a level 0-500 orderly streaming function, which keeps the heat pump system running in a stable state, greatly reducing the failure rate.

Four-way Reversing Valve

Using the internationally wellknown brand Sanhua four-way reversing valve can smoothly convey the system operation mode, rationally control the operation of the unit, and effectively control the system defrosting under low temperature operating conditions.

※ Specification

Model		NFLWX~	NFLWX-09RBI	NFLWX-16RBI	NFLWX-18RBI	NFLWX-20RBI
Model		HP	3HP	5HP	6HP	7HP
Nominal Heating Condition (7°C)	Nominal Heating Capacity	KW	8.85	16.60	17.80	19.10
	Input Power	KW	2.68	5.00	4.90	5.70
	COP	W/W	3.30	3.32	3.63	3.35
Nominal Heating Condition (-12°C)	Nominal Heating Capacity	KW	6.02	11.60	13.50	15.40
	Input Power	KW	2.41	4.60	5.20	6.00
	COP	W/W	2.50	2.52	2.60	2.57
Nominal Heating Condition (-20°C)	Nominal Heating Capacity	KW	4.85	9.80	11.50	12.10
	Input Power	KW	2.36	4.50	5.10	5.60
	COP	W/W	2.06	2.18	2.25	2.16
Nominal Cooling Condition (35°C)	Cooling Capacity	KW	7.19	12.45	15.00	17.00
	Input Power	KW	2.66	4.60	5.35	6.10
	COP	W/W	2.70	2.71	2.80	2.79
Power Supply		V/50Hz	220 / 50	220/ 50	220/ 50	220/ 50
IPLV(H) / PLV(C)		/	2.9 / 3.1	2.9 / 3.1	2.9 / 3.1	2.9 / 3.1
APF		/	3.10	3.10	3.1	3.1
Max. Input power		KW	5.0	7.00	8.00	9.00
Max. Running current		A	23.5	31.20	36.60	40.50
Electric Safety / Water-Proof Grade		/	I Class／IPX4
Exhaust / Suction Side Allowed Pressure		MPa	4.4 / 1.5
Gas / Water Side Max. Working Pressure		MPa	4.4 / 1.0
High / Low Pressure Side Max. Pressure		MPa	4.4 / 1.5
Water Side / Max. Working Pressure		KPa/MPa	≤39 / 1.0	≤68 / 1.0	≤68 / 1.0	≤68 / 1.0
Noise		dB(A)	55	58	62	62
Circulating Water Flow		m³/h	1.2	2.11	2.58	2.93
Refrigerant / Charged Volume		Kg	R410A / 1.7	R410A / 3.1	R410A / 3.2	R410A / 3.4
Weight		Kg	95	120	125	138
Inlet / Outlet Pipe Dimater		DN	25
Overall Dimension		mm	1076478803	10764781334
Execution Standard		/	GB/T25127.2-2020/GB37480-2019

Model		NFLWX~	NFLWX-24RBII	NFLWX-28RBII	NFLWX-32RBII	NFLWX-44RBII
Model		HP	8HP	10HP	12HP	15HP
Nominal Heating Condition (7°C)	Nominal Heating Capacity	KW	24.00	27.50	31.48	43.50
	Input Power	KW	6.60	7.35	8.32	13.00
	COP	W/W	3.64	3.74	3.78	3.35
Nominal Heating Condition (-12°C)	Nominal Heating Capacity	KW	16.80	18.60	22.00	28.80
	Input Power	KW	6.70	7.29	8.50	11.00
	COP	W/W	2.5	2.55	2.58	2.62
Nominal Heating Condition (-20°C)	Nominal Heating Capacity	KW	13.60	15.35	18.80	24.30
	Input Power	KW	6.30	6.97	8.35	10.65
	COP	W/W	2.15	2.20	2.25	2.28
Nominal Cooling Condition (35°C)	Cooling Capacity	KW	17.10	20.70	24.50	31.30
	Input Power	KW	6.30	7.63	9.01	11.50
	COP	W/W	2.7	2.71	2.72	2.72
Power Supply		V/50Hz	380/ 50	380/ 50	380/ 50	380/ 50
IPLV(H) / PLV(C)		/	2.9 / 3.0	2.9 / 3.1	2.9 / 3.1	2.9 / 3.1
APF		/	3.00	3.10	3.1	3.1
Max. Input power		KW	10.00	12.00	15.00	18.00
Max. Running current		A	24.50	26.20	31.30	36.60
Electric Safety / Water-Proof Grade		/	I Class／IPX4
Exhaust / Suction Side Allowed Pressure		MPa	4.4 / 1.5
Gas / Water Side Max. Working Pressure		MPa	4.4 / 1.0
High / Low Pressure Side Max. Pressure		MPa	4.4 / 1.5
Water Side / Max. Working Pressure		KPa/MPa	≤68 / 1.0	≤68 / 1.0	≤68 / 1.0	≤68 / 1.0
Noise		dB(A)	62	62	63	63
Circulating Water Flow		m³/h	2.95	3.5	3.8	5.33
Refrigerant / Charged Volume		Kg	R410A / 3.6	R410A / 4.0	R410A / 5.0	R410A / 7.8
Weight		Kg	170	190	240	280
Inlet / Outlet Pipe Dimater		DN	32
Overall Dimension		mm	11605001600		12006301650
Execution Standard		/	GB/T25127.2-2020/GB37480-2019

Model		NFLWX~	NFLWX-46RBII	NFLWX-92RBII	NFLWX-184RBII
Model		HP	15HP	30HP	60HP
Nominal Heating Condition (7°C)	Nominal Heating Capacity	KW	46.18	91.53	184.63
	Input Power	KW	12.83	25.4	50.97
	COP	W/W	3.60	3.60	3.62
Nominal Heating Condition (-12°C)	Nominal Heating Capacity	KW	31.05	61.3	121.8
	Input Power	KW	11.71	23.45	47.34
	COP	W/W	2.65	2.61	2.57
Nominal Heating Condition (-20°C)	Nominal Heating Capacity	KW	25.19	49.5	100.76
	Input Power	KW	10.95	22.5	44.58
	COP	W/W	2.30	2.20	2.26
Nominal Cooling Condition (35°C)	Cooling Capacity	KW	34.81	67.15	137.00
	Input Power	KW	12.65	24.6	48.92
	COP	W/W	2.75	2.73	2.80
Power Supply		V/50Hz	380	380	380
IPLV(H) / PLV(C)		/	3.26/3.43	3.21/3.4	3.22/3.4
APF		/	3.43	3.40	3.40
Max. Input power		KW	16.00	32.00	71.00
Max. Running current		A	33.00	64.00	140.00
Electric Safety / Water-Proof Grade		/	Class I / IPX4
Exhaust / Suction Side Allowed Pressure		MPa	4.4/1.5
Gas / Water Side Max. Working Pressure		MPa	4.4/1.0
High / Low Pressure Side Max. Pressure		MPa	4.4/4.4
Water Side / Max. Working Pressure		MPa	≤86 / 1.0	≤85 / 1.0	≤50 / 1.0
Noise		dB(A)	61	68	72
Circulating Water Flow		m³/h	5.99	11.55	23.56
Refrigerant / Charged Volume		Kg	R410A/7.6	R410A/7.6*2	R410A/7.8*4
Weight		Kg	258	520	1480
Inlet / Outlet Pipe Dimater		DN	40	65	80
Overall Dimension		mm	12056301656	19909602030	235013002510
Execution Standard		/	GB/T251272-2020/GB37480-2019
