High Flex Interior WPC Fluted Wall Panel160mm WPC Louver Panel

High Flex Interior WPC Fluted Wall Panel160mm WPC Louver Panel

High Flex Interior WPC Fluted Wall Panel160mm WPC Louver Panel
High Flex Interior WPC Fluted Wall Panel160mm WPC Louver Panel
Categories Interior WPC Wall Panel
Life Time: More Than 5 Years
Model Number: FS-160-24
Heavy Metals & SVHCs: 0% Detected
Certification: SGS,ISO
Length: 2.9m/Customized
Place of Origin: Zhejiang，China
Supply Ability: 100000pcs per week
Material Composition: 60% Reclaimed Hardwood Fiber + 30% Eco-HDPE + 10% Non-toxic Additives
Water Absorption Rate: ≤0.5%
Fire Retardancy Rating: Class B-s1, d0
Formaldehyde Emission: ≤ 0.05 mg/m³
Linear Thermal Expansion: ≤0.15%
Payment Terms: Western Union,T/T,D/P,L/C,D/A
Width: 160mm
Delivery Time: 5-7working days
Packaging Details: Carton packing,9960pcs/40HQ
Surfacefinish: Wood grain / Smooth / Textured
Price: $0.9or negotiation
Surface Treatment: Hot Stamp Foil+embossed
Brand Name: Haining Vanshine
MOQ: 200meters per color or negotiation
Colorfastness (UV Aging): Grade ≥4
Contact Now
  • Product Details
  • Company Profile

High Flex Interior WPC Fluted Wall Panel160mm WPC Louver Panel

High Flex Interior WPC Fluted Wall Panel 160mm WPC Louver Panel
Product Summary
Utilizing advanced micro-foamed thermal co-extrusion technology, a high-flex engineering polymer shield encapsulates a structurally resilient, chambered composite core. The signature multi-fluted geometric wave formation efficiently diffuses direct sound waves, mitigating harsh flutter echoes and reducing indoor reverberation. Simultaneously, the core chemistry delivers superior impact absorption, allowing the linear profiles to flex and rebound under heavy lateral blunt force without shattering or snapping. Overcoming the common industry vulnerability where rigid materials easily fracture and worsen room acoustics, this system serves as the definitive high-performance facade solution for home theaters, corporate conference centers, and high-traffic interior corridors.
About this Product
  • Wave-Form Sound Wave Diffusion - Designed with a precise geometric multi-fluted wave profile, this interior WPC wall panel breaks up direct sound waves, reducing indoor flutter echoes and creating a clear, balanced acoustic environment.
  • High-Flex Blunt Impact Rebound - Integrated with an elastomeric engineering cap, the fluted ridges possess excellent mechanical ductility, absorbing heavy lateral bumps from luggage, carts, or toys without cracking or shattering.
  • Chambered Eco-Core Resonance Control - The internally engineered hollow-core chambers form an array of thermal and acoustic damping cells, decoupling the wall surface to trap sound energy and dampen structural room-to-room vibration.
  • Lightweight Stress-Free Framing - Through advanced micro-foaming modification, the overall panel weight is optimized, minimizing gravity stress on interior partition walls while allowing carpenters to score, cut, and bevel edges effortlessly.
WPC Fluted Wall Panel installation view Close-up of WPC panel fluted texture WPC panel cross-section detail
Technical Specification
No.Test ItemTest MethodSpecification & Performance
1Material CompositionManufacturing Standards60% Reclaimed Hardwood Fiber + 30% Eco-HDPE + 10% Non-toxic Additives
2Formaldehyde EmissionEN 717-1 / SGS≤ 0.05 mg/m³ (EU E0 Standard / Passed)
3Water Absorption RateASTM D1037≤0.5% (24-hour full immersion testing)
4Fire Retardancy RatingEN 13501-1Class B-s1, d0 (Self-extinguishing, low smoke density)
5Linear Thermal ExpansionASTM D696≤0.15% (Under severe global temperature changes)
6Colorfastness (UV Aging)ISO 105-A02 / ASTMGrade ≥4 (After 2,000 hours of accelerated xenon-arc exposure)
7Heavy Metals & SVHCsRoHS 2.0 / REACH0% Detected (Lead, Mercury, Cadmium, Asbestos free)
Certification
Product certification and standards compliance
Why Specify the 160mm Module?
  • Optimized Spatial Geometry - Dividing a 160mm face into a 4-to-6-slot fluted rhythm yields a slate width of 25mm to 40mm. This exact geometric scale provides the ideal visual density for standard 2.7m-3.1m interior walls, elongating the room vertically without creating optical crowding or visual fatigue.
  • Accelerated Installation Cycles - By offering a wider surface footprint than restrictive 100mm/120mm alternatives, the 160mm profile cuts down interlocking configurations and pneumatic pinning steps by 30% to 40%. Its modular width divides cleanly into standard room spans, eliminating unnecessary perimeter trimming and lowering material scrap costs.
  • Shadow-Line Joint Concealment - The 160mm engineering profile accommodates a deep, high-tolerance tongue-and-groove track. Upon interlocking, the physical assembly seam is strategically buried within the natural shadow lines of the recessed flutes, delivering a completely seamless, continuous architectural plane.
  • Structural Stability & Stress Relief - While extra-wide profiles are susceptible to center-bowing under indoor climate changes, and narrow panels increase the risk of joint shifting, the 160mm structural width provides the most balanced stress distribution. Backed by the protective shield, it ensures the linear ridges remain perfectly straight and distortion-free.

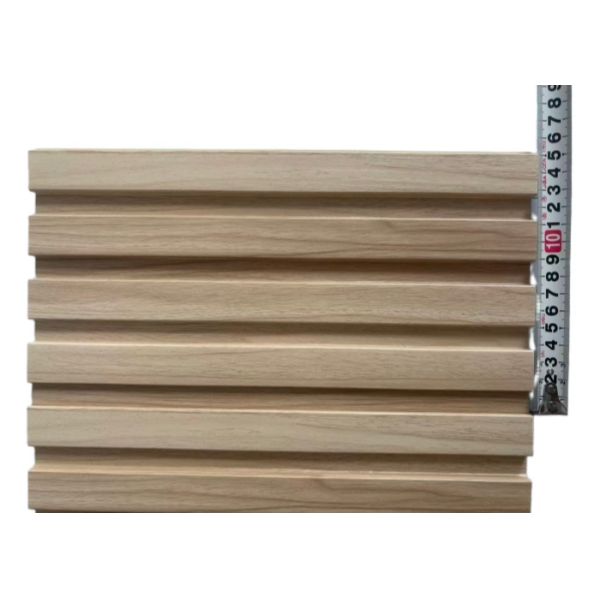

160mm module installation demonstration
Application Gallery

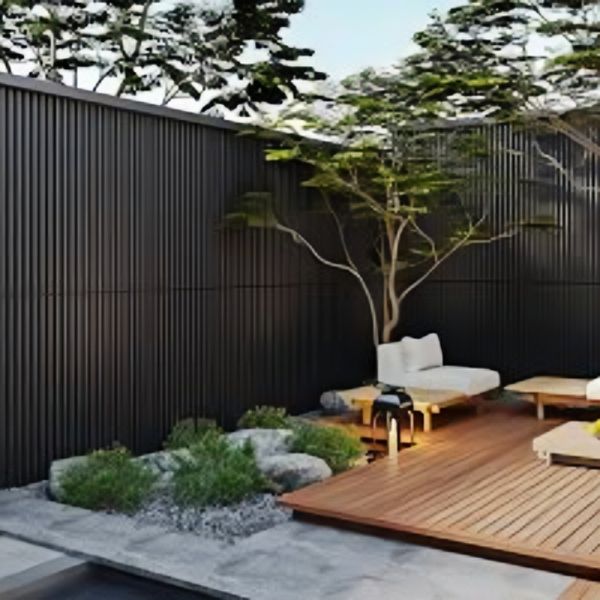

WPC panel application in commercial space WPC panel in residential setting WPC panel in office environment WPC panel in hospitality application
Colors
Available color options for WPC panels
Section Designs
WPC panel section design 1 WPC panel section design 2 WPC panel section design 3 WPC panel section design 4 WPC panel section design 5 WPC panel section design 6 WPC panel section design 7
Our Factory
Manufacturing facility overview Production line equipment Quality control process
FAQ
Q1: Can this interior WPC wall panel replace professional acoustic foam in a home theater or high-end entertainment room?
A1: While it does not replace porous absorption foams entirely, its 3D fluted geometry works perfectly as a mid-to-high frequency sound diffuser. By scattering direct sound reflections off hard flat walls, this interior WPC wall panel reduces flutter echoes and room ring, making it an ideal, aesthetically beautiful acoustic treatment for home cinemas and gaming rooms.
Q2: If an office chair or heavy suitcase directly bangs into the fluted ridge, will the corner crack or snap off?
A2: No. Unlike traditional plaster casting, thin drywall, or cheap brittle plastics that easily punch through or fracture upon localized impacts, our high-flex formulation is engineered to absorb blunt force. The co-extruded shield possesses excellent elastomeric memory, allowing it to take daily accidental knocks from office chairs or luggage without snapping or shattering.
Q3: Does the internal hollow-core design make the panel weaker or cause it to collapse under heavy physical hand pressure?
A3: Absolutely not. The internal hollow chambers are engineered using vertical structural columns based on rigid architectural arch principles. This layout distributes mechanical surface forces evenly across the composite framework, meaning the fluted louvers will not dent, collapse, or deform even under heavy, deliberate hand pushing or body leaning.
Q4: How does this acoustic fluted panel perform when installed directly on common interior drywall partitions?
A4: It performs brilliantly because the micro-foamed structure reduces excess dead weight. When installed over lightweight steel-stud drywall partitions, it provides an additional layering of structural damping that helps reduce sound transmission between neighboring offices or bedrooms without creating dangerous structural weight strain on the wall fasteners.
