20W Fiber Laser Marking Machine for Metal and Plastic Desktop Table Design

Categories Fiber Laser Marking Machine
Laser Power: 20W
HS Code: 8456110090
Specification: 80cmx90cmx115cm
Trademark: HBS
Cooling System: Air Cooling
Laser Power Lifetime: 100,000 Hours
Laser Source: Raycus
Laser Classification: Solid Laser
Marking Method: Scanning Marking
Production Capacity: 300/Month
MOQ: 1 Piece
Origin: Beijing
Model NO.: HBS-GQ-20A
Marking Area: 110*110mm
Price: US $4,200-4,500 / P
Technical Class: Pulse Laser
Laser Wavelength: Fiber Laser
Type: Optical Fiber Laser Marking Machine
Transport Package: Carton
  • Product Details
  • Company Profile

20W Fiber Laser Marking Machine for Metal and Plastic Desktop Table Design

20W Fiber Laser Marking Machine for Metal and Plastic Desktop Table Design

I Product Introduction

Open table design, which gives you the maximum flexibility during your marking process. You can put many different sizes of workpieces on the table. With our focus finder system, pilot laser, easy to use software, motorized Z axis, your production process will be more efficient and productive. Besides, the open table design also makes it easier for you to integrate GQ 20A into your production line

II Technical Parameter

Laser Wavelength

1060nm

Beam Quality

<1.5

Laser Repetition

≤100KHz

Standard Marking Area

110mm x 110mm

Making Depth

≤1.5mm(Can be Adjustable)

Marking Speed

≤12000mm/s

Min. Line Width

0.01mm

Min. Character Size

0.05mm

Repetition Precision

±0.001mm

Power Consumption

≤500W

Cooling method

Air cooled

Power Supply

220V/50Hz/10A

III Product Features
  • Fast speed and high speed galvanometer
  • Small size and light weight
  • No consumables, low power consumption, less power consumption than 500W
  • Full air cooling, no need of water cooler, energy consumption reduction.
  • The battery and automobile ci-garette lighter can be used to work under power failure without the influence of bad environment and temperature change.
  • The depreciation cost of products can be greatly reduced, which can fully satisfy customers' mass and stable production.

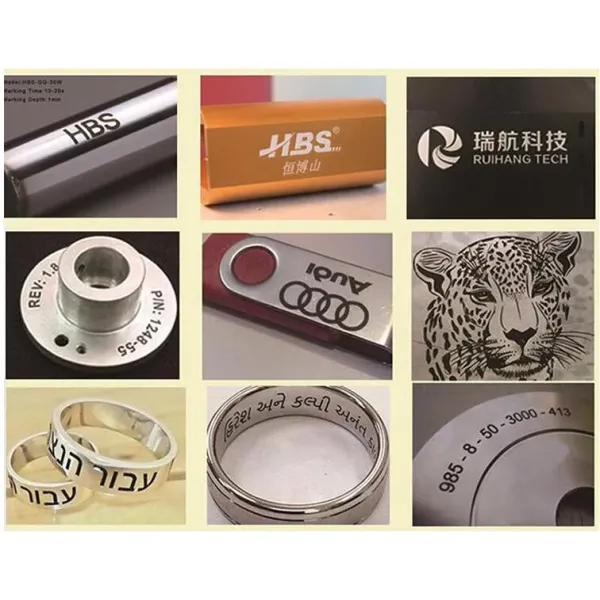

IV Application
V Exhibition

VI Company Information

Founded in 2001, HBS has 17 years experience in laser industry.

HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality.

HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.

The price is not expensive considering it's factory price. Welcome to visit our factory!
