304SS 220V Semi Automatic Label Dispenser Round Bottle Labeling Machine

For milk tea shops, ice cream parlors, and juice bars, branding depends heavily on attractive, wrinkle-free cup labels. However, the tapered shape of typical beverage cups (wider at top, narrower at bottom) makes manual labeling frustrating: labels often go on crooked, develop air bubbles, or peel at the seam after refrigerating. Worse, when you have 20 different cup sizes for seasonal drinks (e.g., 400ml iced latte, 700ml bubble tea), re-training staff for each size is impossible.

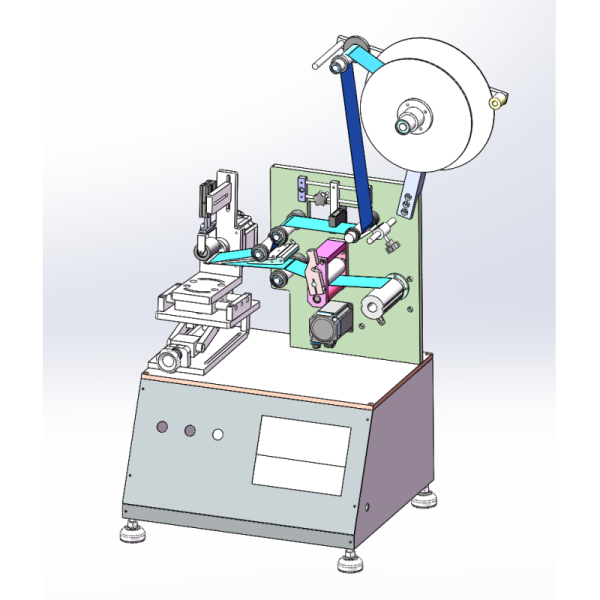

The YM140 Semi-Automatic Desktop Labeling Machine is built specifically for this chaotic, high-mix environment. It applies pressure-sensitive labels onto conical cups with ±1 mm precision – no more tilted logos or wrinkled edges. The machine’s 304 stainless steel body resists moisture from drink prep areas, and its foot pedal operation keeps your hands free to handle cups, toppings, or lids simultaneously.

Unlike fully automatic lines that cost $10,000+ and require dedicated technicians, the YM140 sits on any countertop (12”x18” footprint) and pays for itself within 3-6 months by reducing label waste and rework. One operator can label 20-30 cups per minute – roughly triple the speed of manual labeling. For shops that rotate cup sizes frequently (e.g., 500ml for standard milk tea, 700ml for large smoothies), the interchangeable mold system lets you switch sizes in under 2 minutes without tools.

• Wrinkled labels on tapered walls
  Manual label application often fails because the label’s straight edge doesn’t naturally conform to a sloping cup surface. The YM140’s rotating head applies labels with tangential force, smoothing them evenly from top to bottom – even on PP plastic cups or thin paper cups.

• Slow, inconsistent output during rush hours
  Your best staff might label 10 cups/minute perfectly, but new hires may take 30 seconds per cup with poor results. The YM140 delivers consistent 20-30 cups/minute regardless of operator skill. The foot pedal means no button-pressing delays.

• Frequent size changes for seasonal drinks
  Many labelers require 15-30 minutes to adjust guides and tension for a different cup size. Our custom molds (one per cup size) snap onto the labeling head – changeover time is literally the time to swap a mold and select a preset on the HMI touchscreen.

• Damage to thin plastic or paper cups
  Hard-gripping labelers crush thin-walled cups. YM140 uses gentle, adjustable positioning pads – safe for all materials: glass, PET, PP, paper, and even foam cups.

1. Set up the mold: Choose the mold matching today’s cup size (e.g., 500ml milk tea cup). Load the label roll – the sensor automatically detects label gaps.

2. Adjust label position: Use the HMI touchscreen to set the vertical start point.

3. Labeling operation: Place a cup onto the mold. Step on the foot pedal – the cup rotates, the label peels and applies automatically. Release the pedal; remove the labeled cup.

4. High-speed continuous mode: For large batches, keep feeding cups and stepping on the pedal rhythmically. The machine counts each label applied.

5. Switch cup sizes: Remove the 500ml mold, snap on the 700ml mold. Load preset “Recipe 2” on the HMI – you’re ready in 90 seconds.

• Bubble tea chains: Label PP cups with brand logos, sugar levels, and topping icons. Switch between 500ml (regular) and 700ml (large) during shift.

• Ice cream shops: Apply ingredient labels to conical ice cream cups (paper or plastic) for retail freezer displays.

• Juice bars: Label transparent PET cold-press juice cups with nutrition facts and “drink by” dates.

• Coffee shops: Custom-label 12oz/16oz paper coffee cups for special blends or holiday promotions.

• Dessert caterers: Label pudding cups, yogurt cups, or mousse cups for events – consistent presentation.

• 20 years in labeling: Our 10-20 engineers support OEM molds for any cup shape (U-shaped, or with handles).

• Global reach: CE & SGS certified. Sold to 80+ countries including Australia, USA, Canada, South Korea, Thailand – 10,000+ successful projects.

• No downtime support: 2-year warranty (PLC/touchscreen free replacement). Online technical support with video tutorials. Local service points in US, Australia, Canada, Thailand.

• Rigorous testing: Each unit runs 24 hours before shipping.

• Molds for non-standard cup shapes (e.g., square conical)

• Custom label placement angle (e.g., 30° for curved cups)

• Machine color/branding for franchise rollouts (min order applies)

• Estimated price: $1,599 – $2,499 (depends on mold quantity)

• Lead time: 10-15 days for standard molds; 20-25 days for custom

• Shipping: Wooden case, FOB Shanghai or DDP available

Q:Are you the factory?

A:Yes.Shanghai Yimu Machinery Co., Ltd. is a specialized factory manufacturer dedicated to the integrated design, R&D, manufacturing, sales, and service of high-performance liquid filling lines, automated packaging lines, and standalone equipment.

Q:How long is the delivery time?

A:About 10- 40 days.

Q:What are the company's main products?

A:The company is dedicated to the manufacturing and R&D of equipment such as filling machines, capping machines, and labeling machines, providing one-stop packaging solutions.

Q:How many people are on the company's team?

A:The company boasts a core team of over 68 professionals, a robust R&D team comprising 10 to 20 engineers, and a portfolio of more than 126 patented technologies; cumulatively, we have successfully completed over 10,000 projects. We provide professional OEM and ODM services to all our distributors.

Q:What is payment term?

A:Deposit 30% in advance and 70% before shipment the machine.

Q:How can I know your machine is designed for my product?

A:You can send us samples of your product and we test it on machine,and take care of your all needs

Q:How can I install my machine when it arrives?

A:For simple and semi auto machine, we would send manual instruction and teaching video. For packing line , we will send the engineers overseas to help client installing, operating and training.

Q:Does factory provide the packing quality control?

A:Yes, our factory has strict packing quality control. We use wooden cases for packaging, which are designed for high stability. These wooden cases are well - structured to withstand various transportation conditions
