| Categories | Vehicle Hidden Camera |
|---|---|
| Brand Name: | Vanwin Tracking |
| Model Number: | VW-902 |
| Certification: | CE/FCC/RoHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 5pcs |
| Price: | negotiated |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month , Car dome camera |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Type: | Car Front / Rear / Left / Right View Camera |
| Image sensor: | CCD & CMOS |
| TV system: | PAL or NTSC |
| Resolution: | 420/480/600/TVL |
| Service: | OEM/ ODM |
| Waterproof: | IP67 |
| Optional function: | Mirror/non-mirror |
| Optional function 2: | Parking line or not |
| Lens Angel: | 170 degree |

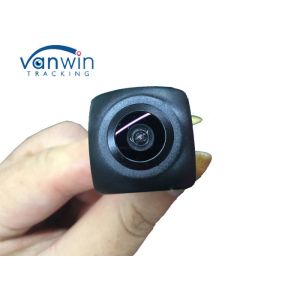

Universal IP67 Car Dome Camera , Rear View Wireless Reversing Camera
The mini car camera is generally used as Front / Rear / Left / Right View camera for all small Cars.
Main Features:
Specifications:
| Images sensors | Best Quality | Normal Quality |
| Resolution(TV Line) | 600 CCD | 420 COMS |
| Effective pixels | 720*576 /720*480 | 580*540/580*492 |
| Minimum illumination | 0.5 lux | 1 lux |
| IP rating | IP67 | IP67 |
| lens Angle(Deg.) | 170° | 170° |
| TV System | PAL/NTSC | PAL/NTSC |
| Power Supply(DCV) | DC12V±1V | DC12V±1V |
| Power | <1W | <1W |
| Electronic shutter | 1/60(NTSC)1/50(PAL)1/10,000second | 1/60(NTSC)1/50(PAL)1/10,000second |
| S/N Ratio | ≥48dB | ≥48dB |
| Video output | 1.0vp-p.75ohm | 1.0vp-p.75ohm |
| White Balance | Auto | Auto |
| AGC | Auto | Auto |
| Operating Temperature | -20~+75(RH95% Max.) | -20~+75(RH95% Max.) |
| Storage Temperature | -30~+85(RH95% Max.) | -30~+85(RH95% Max.) |
| Optional Function 1 | Parking Line /Guide line | Parking Line /Guide line |
| Optional Function 2 | Mirror image & non-mirrored image | Mirror image & non-mirrored image |
Optional Fuction:
1. Mirror or Non-mirror
2. Paking line or without paking line
How to install:
1. Fix the camera to a special design hole in your car.
2. Connect the built in license plate light of the camera to where the stock license
plate light was connected to get the power.
3. Connect the power of the camera to your car reverse lights - red wire to positive and
black wire to negative.
4. Connect the video cable of the camera to the extension cord.
5. Connect the extension cord to your car monitor.
6. You will see the images when your car is in reverse shift.
Installation instruction:
|
