| Categories | Touch Panel PC |
|---|---|
| Brand Name: | ITD/OEM |
| Model Number: | ITD19PPCT5KI5 |
| Certification: | CE/ROHS/FCC |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Payment Terms: | T/T, PayPal(173515844@qq.com) |
| Supply Ability: | 10000 unit per month |
| Packaging Details: | Foam,gift box,master carton,wooden case,pallet |
| Model Name: | ITD19PPCG1K** |
| CPU: | Intel J1900,i3,i5,i7,ARM Android |
| Screen Diagona: | 19" |
| Display Active Screen: | 376.32 (H) ×301.06(V) mm |
| Physical Resolution: | 1280×1024 |
| Brightness (cd/m²): | 250nits |
| View Angels: | 85/85/80/80 |
| Touch Technology: | Projected Capacitive Touch with 10 touch points |
| Operating Temperature Range: | -10~60°C (-20~70°C Optional) |
| Touch Life: | 50,000,000 Times/Click |
| Price: | TBA |

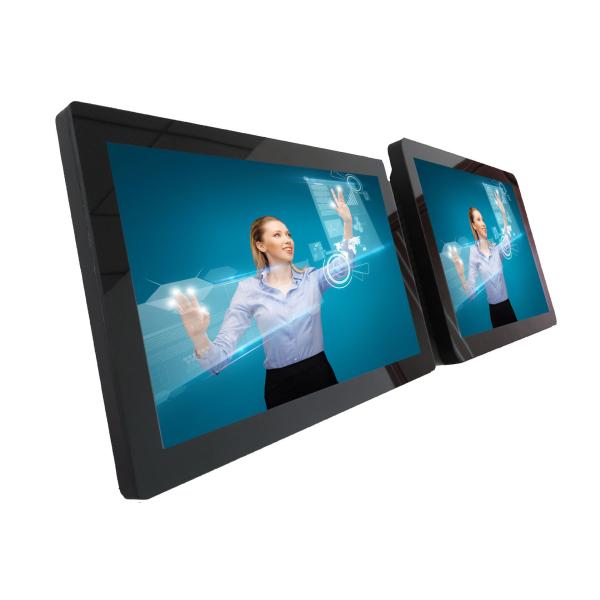

19" AIO industrial computer true flat surface pcap touch PC
Specifications:
Zero-Bezel PCAP Touch Panel PC | |||
| Model Name | ITD19PPCG1K** | ||
| IP Rating | IP65 Front Panel | ||
PC Systems Options | |||
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
| Chipset: N/A | Chipset: Intel® HD Graphics, Support 1080p | Chipset: Intel® HD Graphics, Support 1080p | |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
| 1×LAN | 1×LAN | 1×LAN | |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
LCD Panel | |||
| Screen Diagonal (Inch/cm) | 19” | ||
| Display Active Screen Size (mm) | 376.32 (H) ×301.06(V) | ||
| Aspect Ratio | 4:3 | ||
| Physical Resolution | 1280×1024 | ||
| Maximum Resolution Supported | 1920×1080 | ||
| Colors | 16.7M | ||
| Brightness (cd/m²) | 250nits | ||
| Contrast Ratio | 1000:1 | ||
| View Angels | 85/85/80/80 | ||
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime | ||
Touch Panel | |||
| Touch Technology | Projected Capacitive Touch | ||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
| Touch Life | 50,000,000 Times/Click | ||
| Surface Hardness | 7H | ||
| OS Support | Windows, Linux, Android, Mac, Raspberry Pi | ||
Operation | |||
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
| Humidity Range (RH) | 10-90% | ||
| 24/7/365 Use | Supported | ||
Power | |||
| Power Indicator | Green LED | ||
| Power Input | DC 12V | ||
| Power Consumption | 30W | ||
Order Information | |||
| 19” Zero-Bezel Touch Panel PC with PCAP Touch, J1900 | ITD19PPCT5KJ1 | ||
19” Zero-Bezel Touch Panel PC with Tempered Glass, J1900 19” Zero-Bezel Touch Panel PC with PCAP Touch, i3 | ITD19PPCG1KJ1 ITD19PPCT5KI3 | ||
19” Zero-Bezel Touch Panel PC with Tempered Glass, i3 19” Zero-Bezel Touch Panel PC with PCAP Touch, i5 19” Zero-Bezel Touch Panel PC with Tempered Glass, i5 19” Zero-Bezel Touch Panel PC with PCAP Touch, i7 | ITD19PPCG1KI3 ITD19PPCT5KI5 ITD19PPCG1KI5 ITD19PPCT5KI7 | ||
| 19” Zero-Bezel Touch Panel PC with Tempered Glass, i7 | ITD19PPCG1KI7 | ||
FEATURES:
-Supports Intel Celeron CPU up to 2.0 GHz
-Low power consumption and economical solution
-Compact size and high performance
-High speed Giga LAN
-On-board IDE interface
-High precision touchscreen
-Industry level of durability against dust and powerful jetting IP65 / NEMA 4
Product Display:


Applications:

|
