| Categories | Walk Through Temperature Scanner |
|---|---|
| Brand Name: | SECUERA or OEM |
| Model Number: | SE-C100T |
| Certification: | CE.FCC.ROHS,ISO9999 |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 2000 SET/Month |
| Delivery Time: | 3 workdays |
| Packaging Details: | International Standard Packing |
| Sensitivity: | 0-99 adjustable |
| Display ways: | Single-line of LCD display |
| Alarm way: | Audio alert,and LED lacation lamp work at same time |
| Body temperature scanner: | Infrared thermal scan |
| Language support: | Customizable |
| Application: | airport.station.church security,school,factory and so on |
| Feathers-1: | High sensitivity thermal module with 256x192 resolution |
| Feathers-2: | Support contrast adjustment |

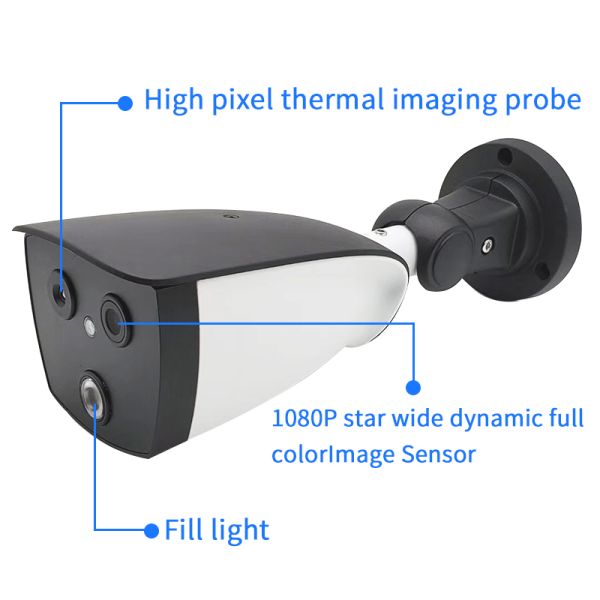

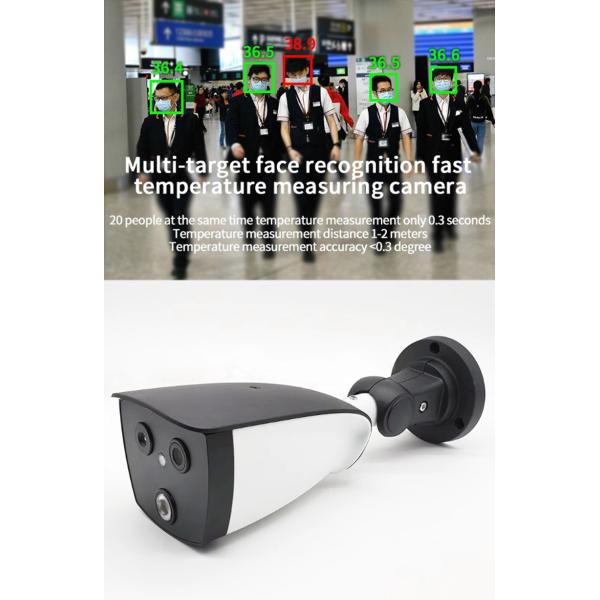

Automatic Infrared Human Body Temperature Measurement System thermal imaging camera prices
Features:
1. High sensitivity thermal module with 256x192 resolution
2. NETD is less than 60 mk (@25℃,F#=1.0)
3. Support contrast adjustment
4. Leading thermal image processing technology: Adaptive AGC,DDE,3D
DNR
5. Up to 15 palettes of adjustable color
6. Reliable temperature-anomaly color
7. Temperature range from -15℃ ~ 150℃
8. Hih quality optical module with 2 MP resolution, Bi-spectrum
image fusion, picture-in-picture preview, support for capture and
save in PC of personal in and out.
| Model: SE-C100T | |
| Thermal imaging module | |
| Sensor type | Silicon oxide uncooled infrared focal plane detector |
| Resolution | 256x192 |
| Pixel size | 12μm |
| NETD | ≤60mk @25℃,F#=1.0 |
| Temperature measurement accuracy | Object temperature35℃~38℃: accuracy ± 0.3 ℃ |
| Object temperature 20℃~33℃ or 38℃~50℃:accuracy ± 0.6 ℃ | |
| Other temperature range: ± 2 ℃ | |
| Field angle | Horizontal:35° vertical: 27° |
| Image model | Black hot/White hot/iron red/iridescence etc. |
| Visible light module | |
| Imaging sensor | 1/2.8”2.0M Pixel CMOS |
| Minimum illumination | 0.005Lux @F1.2(Color mode), 0.001Lux @F1.2(Black/white mode) |
| Wide dynamic range | ≥80dB |
| Signal to Noise Ratio | ≥46dB (AGC OFF) |
| Focal length | 4mm |
| Field angle | Horizontal:84° vertical: 45° |
| AI function | |
| Automatic face capture | Built-in deep learning AI algorithm, support simultaneous detection of 20-30 faces, face detection, exposure, scoring, screening, snapshot upload, support FTP, HTTP and other methods to upload faces, head and shoulders, upper body, full body, original image, etc. |
| Temperature measurement | Support whole and part temperature measurement |
| Abnormal temperature alarm | High temperature limit, Low temperature limit ,Zone temperature difference alarm |
| Functions | |
| Network protocol | Support RTSP, RTP, TCP, UDP, UPNP, DHCP, PPPoE, ONVIF, GB / T 28181 protocol, etc. |
| Network port | 1 channel 10 / 100BaseT Ethernet, RJ45 interface |
| Alarm interface | Reserved |
| Audio port | Reserved |
| General specifications | |
| Operating temperature | -20℃~55℃ |
| Working humidity | 0% -90% RH (no condensation) |
| IP grade | IP67 |
| Power supply | 12V DC |
| Power consumption | ≤5W (without heating) |
| Product dimension | 246mm * 101mm * 81mm (with bracket) |
| Weight | <1kg |
| Other | |
| Accessories | Tripod (free of cost) |
| LCD display (self-provided ) | |
| Warranty | 1 year warranty |





|
