| Categories | Ultrasonic Flow Meter Transducer |
|---|---|
| Brand Name: | Yujie |
| Model Number: | HJ-2112/1M |
| Certification: | ISO9001 |
| Place of Origin: | Jiangsu, China |
| MOQ: | 100 Piece/Pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Delivery Time: | 3~30 working days |
| Packaging Details: | Carton #: 22x22x18cm |
| Theory: | Ultrasonic Sensor |
| Usage: | Flow tranducer |
| Frequency: | 1Mhz |
| Port: | Shenzhen |

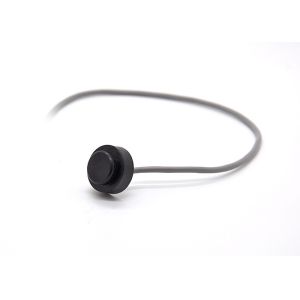

Ultrasonic Flow Meter Transducer With 1MHz Low Cost Waterproof For Flow Meter
Specifications:
| Model | HJ-2112/1M |
| Frequency(kHz) | 1MHz±5% |
| Bandwidth | 200kHz |
General sensitivity 0 dB=3 Vp-p;CW; Distance:7cm | -30dB min |
| Beam width(-3dB full angle) | 6±2° |
| Static capacitance | 1200PF±20% |
| Min. parallel resistance | 250Ω±30% |
| Max. driving Voltage(2% duty cycle tone burst) | ＜300V |
| Operating temperature | -20～70℃ |
| Protection/waterproof level | IP68 |
Max. driving pressure | 1.6MPa |
Housing material | PPS |
Wire length | 65cm |
All specification taken typical at 25℃
|
