12.5–26mm Vertical Electric Windlass | Single Gypsy for Boat Deck

12.5–26mm Vertical Electric Windlass | Single Gypsy for Boat Deck

Product Overview

This vertical electric windlass is designed for small vessels with limited deck space.

The vertical design minimizes installation footprint and is ideal for compact deck layouts.

Designed for compact deck layout and cost-effective anchoring solutions for small vessels.

Quick Specifications

• Chain Size: 12.5–26 mm (U2) → Defines anchor chain compatibility
• Working Load: 5.9–28.7 kN → Defines anchoring capacity range
• Supporting Load: 30–175 kN → Defines structural holding strength
• Speed: ≥9 m/min → Defines anchoring efficiency
• Motor Power: 3/1.2–8.5/3.5 kW → Defines drive capacity
• Drive Type: Electric → Stable and simple operation
• Configuration: Single Gypsy → Compact anchoring system
• Mounting: Vertical → Saves deck space

Main Technical Parameters

Selection Guide

Step 1 – Select Chain Diameter → 12.5–26 mm based on vessel

Step 2 – Confirm Working Load → Defines anchoring capacity

Step 3 – Confirm Supporting Load → Ensures brake holding safety

Step 4 – Confirm Mooring Load → If auxiliary mooring required

Step 5 – Confirm Speed → ≥9 m/min efficiency requirement

Step 6 – Confirm Deck Space → Vertical type for limited space

Structure & Components

Electric motor | Gearbox | Gypsy wheel | Main shaft | Brake | Clutch | Base frame

Custom Attributes

• Chain Size: 12.5–26 mm → Compatibility
• Working Load: 5.9–28.7 kN → Capacity range
• Supporting Load: 30–175 kN → Structural strength
• Speed: ≥9 m/min → Efficiency
• Motor Power: 3/1.2–8.5/3.5 kW → Drive selection
• Installation: Vertical → Space saving
• Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate

Inquiry Guide

Provide chain size, vessel type, required load, and deck space.

How It Works

Electric motor drives gearbox and gypsy to handle anchor chain. Brake and clutch ensure safe operation.

Applications

Small boats | Workboats | Inland vessels | Compact deck ships

Certifications & Advantages

Certification: CCS, NK, BV, ABS, DNV, LR, KR, IRS, RS, RINA, CRS, Makers Test Certificate; compact vertical design, space-saving, cost-effective, reliable.

Drawing & Photos

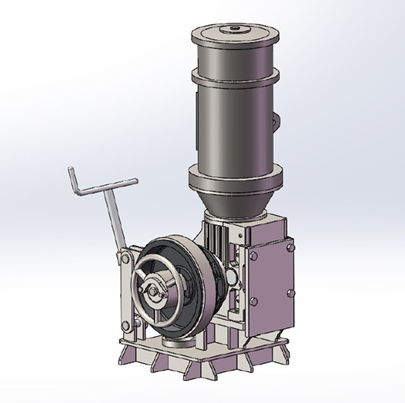

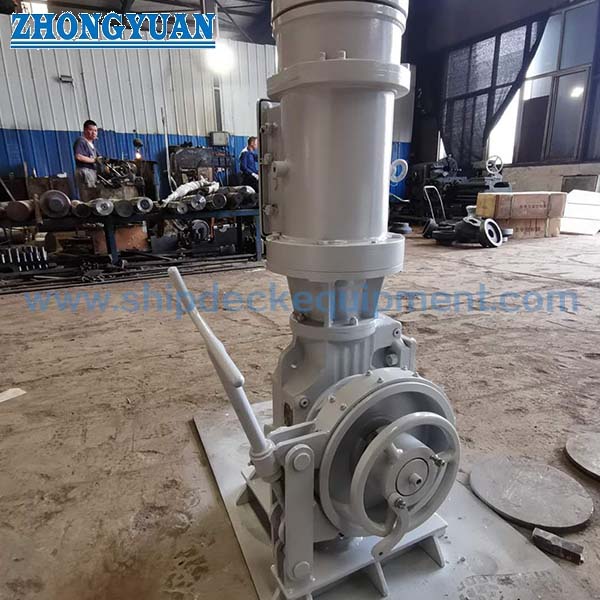

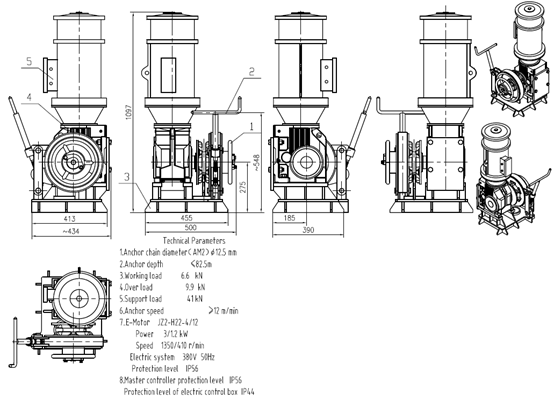

GA drawing | Installation layout | Product photos

Ordering

MOQ:1 | Delivery:60–120 days

FAQ

Q1: Why vertical type? A: Saves deck space.

Q2: Can it be used for mooring? A: Yes, with warping function.

Q3: What chain sizes supported? A: 12.5–30 mm U2 chain.
