OEM Auto Diagnostic Tools Multiple Diagnostic Interface X-VCI for GM MDI

Specifications

X-VCI GM MDI (Multiple Diagnostic Interface) for ECU reprogramming utilizing J2534.

Processor:32 BIT high speed ARM processor

X-VCI For GM MDI Support Protocol:

RP1210A, RP1210B, and J2534 API support
USB vehicle-to-PC connectivity

X-VCI For GM MDI Description:

X-VCI GM MDI (Multiple Diagnostic Interface) for ECU reprogramming utilizing J2534. Hardware kit only.
The X-VCI GM MDI is initially being introduced with Pass-Thru programming capabilities only. It can be used to perform Pass-Thru programming on all vehicles built since 1993 and will support all vehicles into the future.The GM MDI will be required to perform diagnostics on selected NAO vehicles for model year 2009. Diagnostic software is scheduled to be released for the GM MDI during the fourth quarter of 2008.
When diagnostics are introduced, the MDI will also get a remote data record capability. This permits recording data during road test, similar to the Tech 2 Snap Shot function. A trigger switch connector is provided for this purpose. Regulations require programming procedures to be compliant with SAE Recommended Practice J2534. The GM SPS is compliant with SAE Recommended Practice J2534, and the GM MDI is compliant with the portions of SAE J2534 that are applicable for GM vehicles.
In Future, the Tech 2 remains an essential tool through at least the 2010 model year. And X-VCI GM MDI can work with tech2win,it can replace the Tech2.So,V-vci can work with Tech2Win and GDS2,It can support all the GM,OPEL,SAAB cars.
Notice: Requires software subscription to GM SPS (Service Programming System), which must be purchased separately via the ACDelco Tech Connect website

Hardware Specification:

**X-VCI For GM MDI Hardware Specification:**
Item	Instruction
Processor	32 BIT high speed ARM processor
Flash	512KB
RAM	64KB
Diagnostic Socket	J1962 OBD-II 16 connector
Wired socket	USB2.0/USB1.1 compatible
Light	4 LED light, indicating work statuses
Power	Vehicle power input: DC 9V-36V,or USB DC 5V
Consumption	Below 1W
Size	L x W x H=166 x 95 x 33(mm)
Working Temperature	-20～+70 °C
Storage Temperature	-40～+85 °C

Protocol coverage for automotive to heavy duty vehicles:

CAN - J1939/CAN125/CAN250/CAN500/CAN1000
2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000
Automatic bit rate detection for both CAN channels
J1587/J1708
J1850
ISO 15765 (Diagnostic CAN)
ISO 14230 (KWP2000 over ISO9141)
J2534

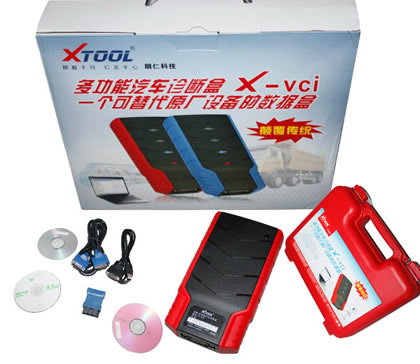

X-VCI For GM MDI Package including:

1pc x X-VCI GM MDI Main unit
1pc x OBDII 16Pin Adapter
1pc x Main Cable
1pc x USB Cable
